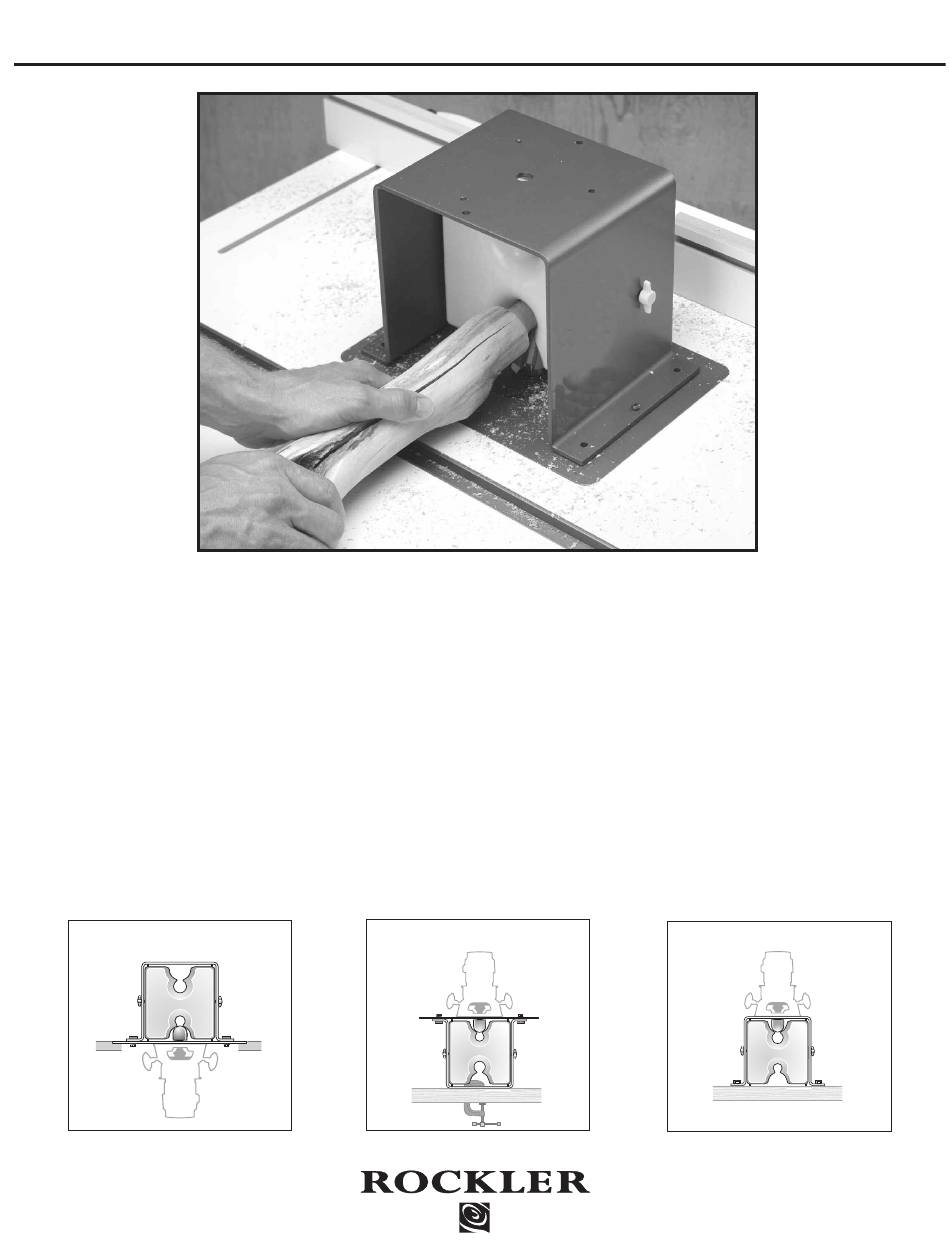

Rockler Log Tenon Maker
The Rockler Log Tenon Maker U-bracket
can be set up in 3 ways:
1) The Log Tenon Maker can be mounted directly to the
Rockler aluminum router plate and used in the Rockler
router table (see Fig. 1).
2) The entire assembly (Tenon Maker, aluminum plate
and router) can be removed from the router table,
inverted, and mounted on the edge of the router table or
bench (see Fig. 2). This approach works well if you are
using bent logs.
Figure 1
36407, 39539, 31803,
30016, 36919, 33694
Figure 2
W O O D W O R K I N G
© Rockler Companies Inc. 2004
Figure 1
3) The router can be mounted directly to the Tenon
Maker, which is then screwed to a bench (see Fig. 3).
The Tenon Maker is pre-drilled with a Porter-Cable 690
hole pattern, but if you are using another router, simply
use the router base plate as a template and drill
countersunk holes and mount the router.
Figure 3
®
A N D H A R D W A R E
Figure 2
RTD10312488AA
5-05
Figure 3
