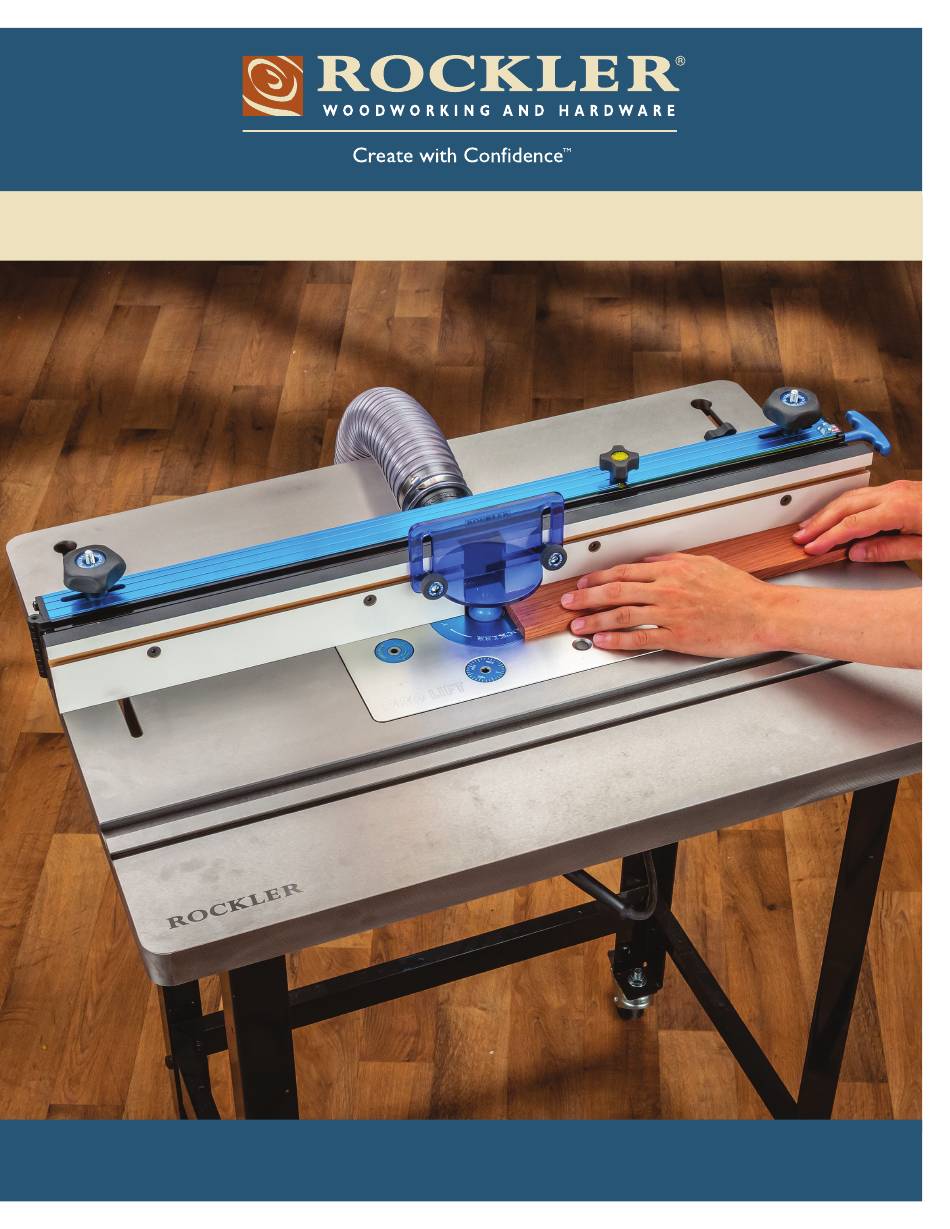

- Page 1 ProMax Fence Instructions Effective June 2020 Review full instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
-
Page 2: General Safety Warnings
This product is designed only for specific applications as defined in the instructions and should not be modified or used for any manner not described in these instructions. Use only recommended accessories. Before using the ProMax Fence: READ, UNDERSTAND and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS. KEEP THESE INSTRUCTIONS READILY AVAILABLE FOR FUTURE REFERENCE. - Page 3 ALL knobs on the ProMax Fence — including the Fence Locking Knob —have been tightened and the fence > Do NOT attempt to use the ProMax Fence to joint board will not shift during use. edges that are thicker than 1 ⁄...
- Page 4 Guard (3) over the T-Bolts and secure with a 1" Round Knob (8) on each T-Bolt. 4. Slide the ProMax Fence to the desired position and tighten the 5/16"-18 Five-Star Knobs (9) to lock it in position. 2. Insert the appropriate 5/16"-18 Bolts for your router 5.
- Page 5 Router bit guide bushing Outfeed subfence Infeed subfence Feed Direction Router Bit Infeed Fence Face Adjusted to Provide Zero-Clearance Support Adjusting the MDF Fence Faces Set the Bit Safety Guard (3) directly over the router bit, at least 1/2" above the top of the bit or the top of the workpiece (whichever is highest) to make sure that >...
- Page 6 You can track the adjustment using the clear indicator and scale on the end of the ProMax Fence. Yellow tape on the top of the black part of the fence also will become visible as you adjust the fence face outward.
- Page 7 Jointing is the process of cutting flat, square, straight edges on a board. It’s typically done on a free-standing power jointer but can be done on a router table for boards that are no thicker than the cutting height of the router bit used. The ProMax Fence has...
- Page 8 53798 Distributed by Rockler Companies, Inc. 1-800-279-4441 Rev 06/20 4365 Willow Dr. Medina, MN 55340 www.rockler.com...
