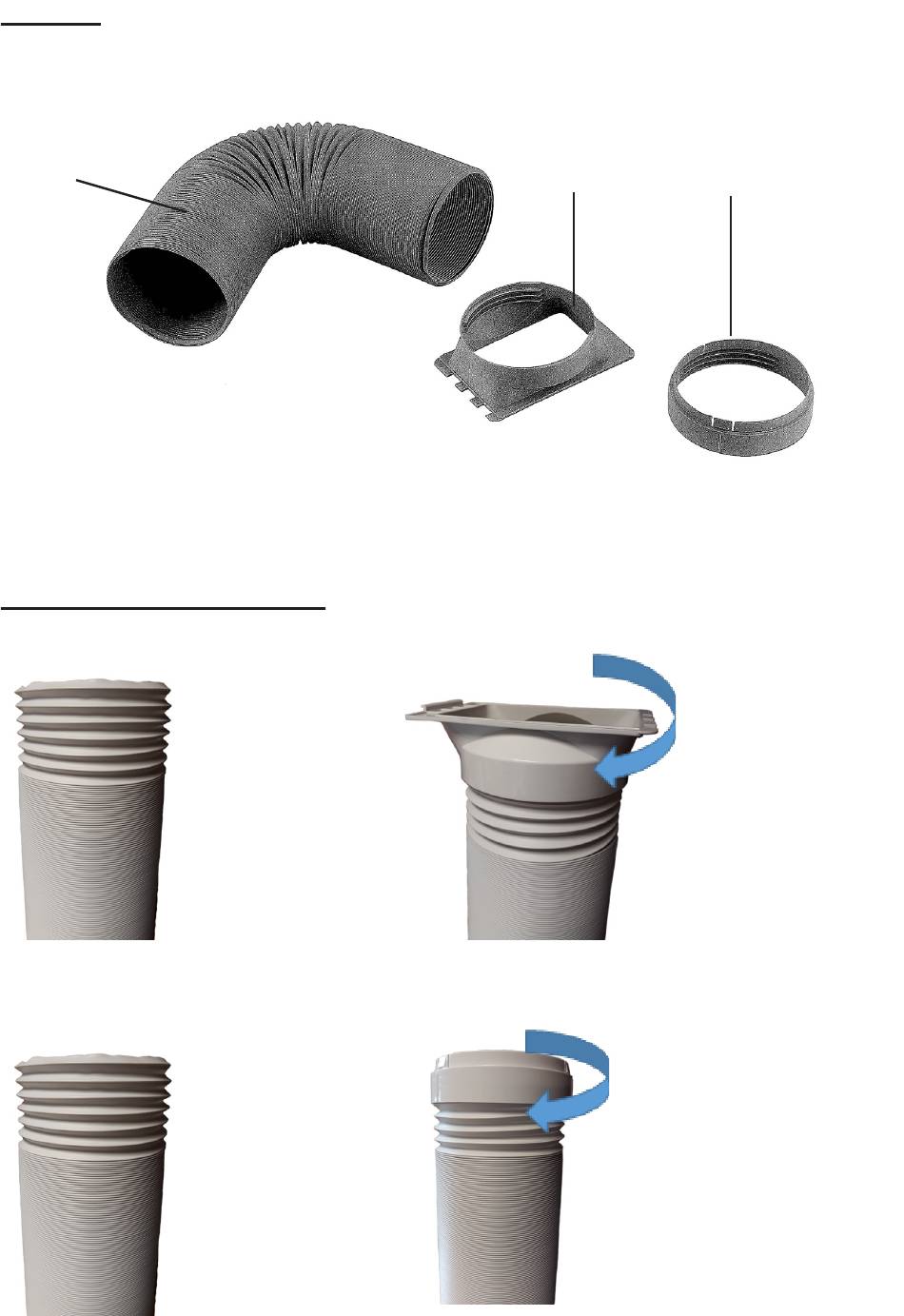

Vent kit
1.
1. Flexible Hose
2. Hose Connector
3. Hose Exit Ring
Fitting the Flexible Hose – the hose must be fitted before use
1. First fit the hose connector (2) to one end of the hose as follows:
2. Next attached the hose exit ring (3) to the other end of the hose as
follows:
a. Extend one
end of the
flexible hose
(1) by about
10cm
c. Extend the
other end of
the flexible
hose (1) by
about 10cm
2. 3.
b. Screw the hose
connector (2)
onto the end
of the hose in
a clockwise
direction.
d. Screw the hose
exit ring (3)
onto the other
end of the hose
in a clockwise
direction.
