Summary of Contents for Daewoo COL1600

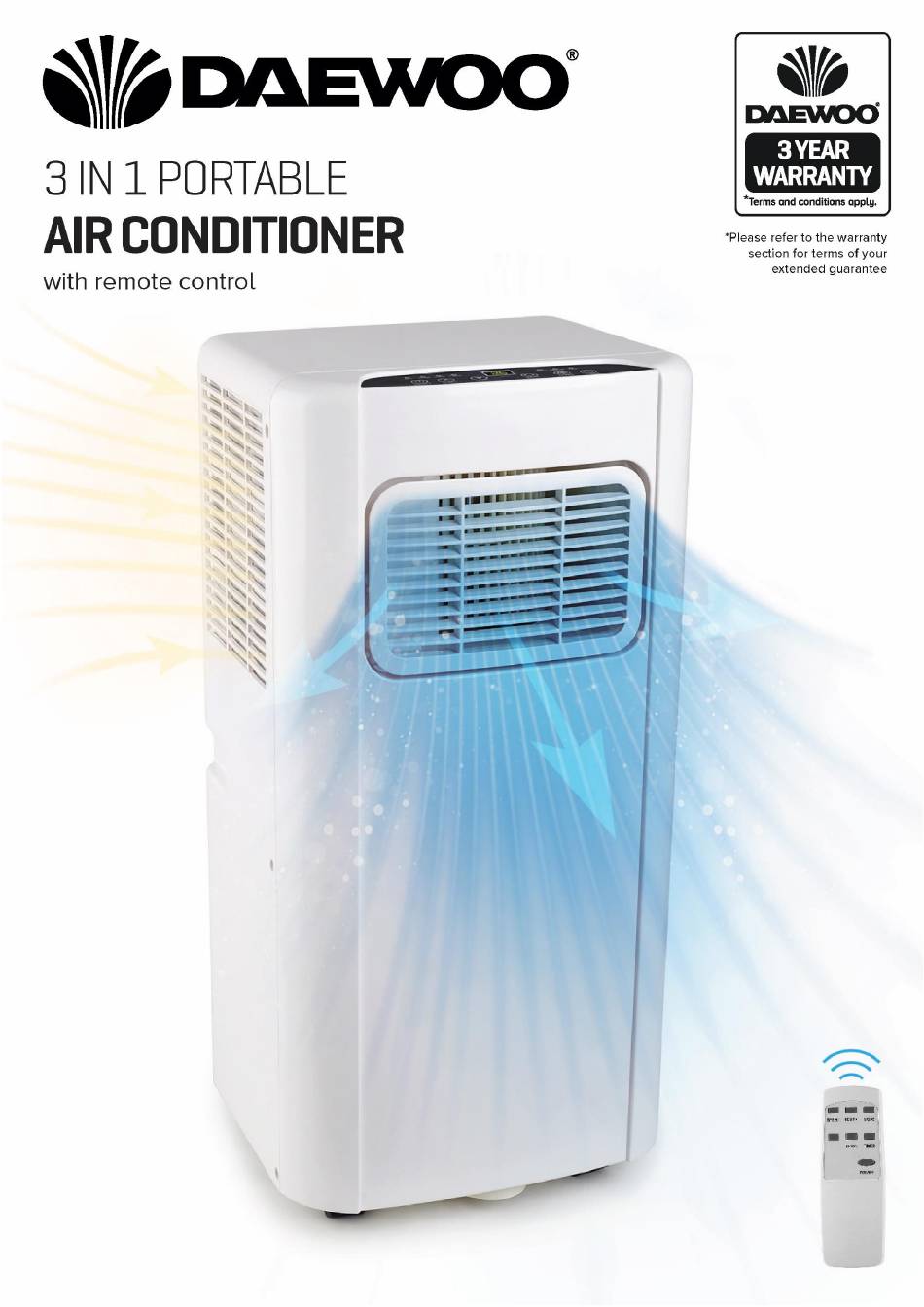

- Page 1 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 2 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Contents Page No. Contents Reading and Storing the User Manual Important Safety Instructions for Proper Use Explanation of Symbols Description of Parts – Main Unit Description of Parts –...
- Page 3 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual READING AND STORING THE USER MANUAL Before using this product, please read through this manual carefully paying particular attention to the safety instructions. Failure to do so may result in personal injury or damage to the product.
- Page 4 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual not be made by children without supervision. • DO NOT leave children unsupervised with this appliance. • DO NOT clean the unit by spraying it or immersing it in water.
- Page 5 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual • This appliance contains R290 refrigerant gas. For quantity see the rating label on the rear of the unit. • R290 refrigerant gas complies with EU environmental directives.
- Page 6 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual WARNING! In order to avoid overheating, DO NOT cover the air conditioner. • Ensure appliance is situated in an open area, DO NOT allow it to come in contact with Cupboards, Curtains, wall coverings, clothing or other flammable materials.
- Page 7 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual • DO NOT run the mains cable under carpets, rugs, etc. • Allow the unit to cool before storage. • Before cleaning, disconnect the appliance from the mains supply and allow to cool.
- Page 8 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Explanation of Symbols The following warning symbols or words are used in this instruction manual: Products labelled with UK Conformity Assessment identifies products conforming to UK statutory requirements.
- Page 9 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Description of Parts – Main Unit 1. Air Inlet 2. Castors (x4) 3. Control Panel 4. Air Outlet 5. Tank Drain (with Cover) 6. Exhaust 7.
- Page 10 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Description of Parts – Control Panel 16 17 18. Heat Indicator 10. Wi-Fi Indicator 19. Power ON/OFF Button 11. Water Full Indicator 20. Temp/Time + Button 12.
- Page 11 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Fitting the Flexible Exhaust Hose – this must be fitted before use: 1. First fit the Hose Connector (27) to one end of the Flexible Hose (26) as follows: a.
- Page 12 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual The unit must be positioned a minimum of 1 Metre away from any wall or obstruction on all sides. • Before use, check that the Flexible Hose (26) is properly fitted.
- Page 13 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Oscillation Mode OSC – Press the OSC button on the Remote Control (9) to select Oscillation Mode, this will enable the Air Outlet (4) to continually disperse air from side to side.
- Page 14 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual • Replace only with the same or equivalent battery type. • Store batteries in a cool dry place. • Do not expose the battery to sunshine, fire, heat or similar, never dispose of batteries in a fire.
- Page 15 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Alternatively connect a hose to the drain and lead it outside to the drain the tank continuously. Ensure that the hose is not raised above the level of the outlet and is not kinked or bent so that the tank can drain properly.
- Page 16 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Using the Wi-Fi Mode Initial Set Up Upon installation of your Air Conditioner, you will have to set up the communication channel between the devices. In order to do this, make sure you have the Smart Life app installed on your mobile device, your Wi-Fi router is switched on and your mobile device connected to your home Wi-Fi network.
- Page 17 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual NOTE: An account must be set up in order to access all the Air Conditioner control application features. Once logged into your account, press the “+ Add Device”...
- Page 18 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual You will then be asked to select your Wi-Fi network and to enter your password (the same network that your phone is connected to) then press NEXT as shown...
- Page 19 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual NOTE: You cannot use the SPEED button on the Remote Control (9) to reset the Wi-Fi mode. Only the Fan Speed Button (23) on the Control Panel (3) can be used.
- Page 20 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual You can control and select functions such as Speed, Timer, Temperature and Mode via your smart device. The smart device functions are similar to how you would use the functions via the Control Panel (4) and Remote Control (7).
- Page 21 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Wi-Fi Trouble Shooting Guide Problem Possible Cause and Solution During the set-up, the Air Check that you have the internet reception and your Conditioner will not connect to smart device and the Air Conditioner are connected to the Wi-Fi network.
- Page 22 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Technical Specification Model Number COL1600 Supply Voltage 220-240V~ 50Hz Rated Power Cooling: 1000W Heating: 1050W Cooling: 4.5A Rated Current Heating: 4.7A Protection Class I (This Appliance Must Be Earthed) Unpacked Weight 19 Kgs (approx.)
- Page 23 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Non-Rewireable Mains Plug If your appliance is supplied with a non-rewireable plug fitted to the mains lead and should the fuse needed replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating).
- Page 24 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 25 3 in 1 Portable Air Conditioner with Wi-Fi & Heating Model No. COL1600 User Manual Notes IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE...
- Page 26 As part of our commitment to quality, we are offering you an extra 2 years warranty in addition to your 1 year guarantee Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof of purchase or receipt. If any defect should occur due to faulty workmanship or material, your faulty product should be returned to the place of purchase, replacement or refund is at the discretion of the retailer.
