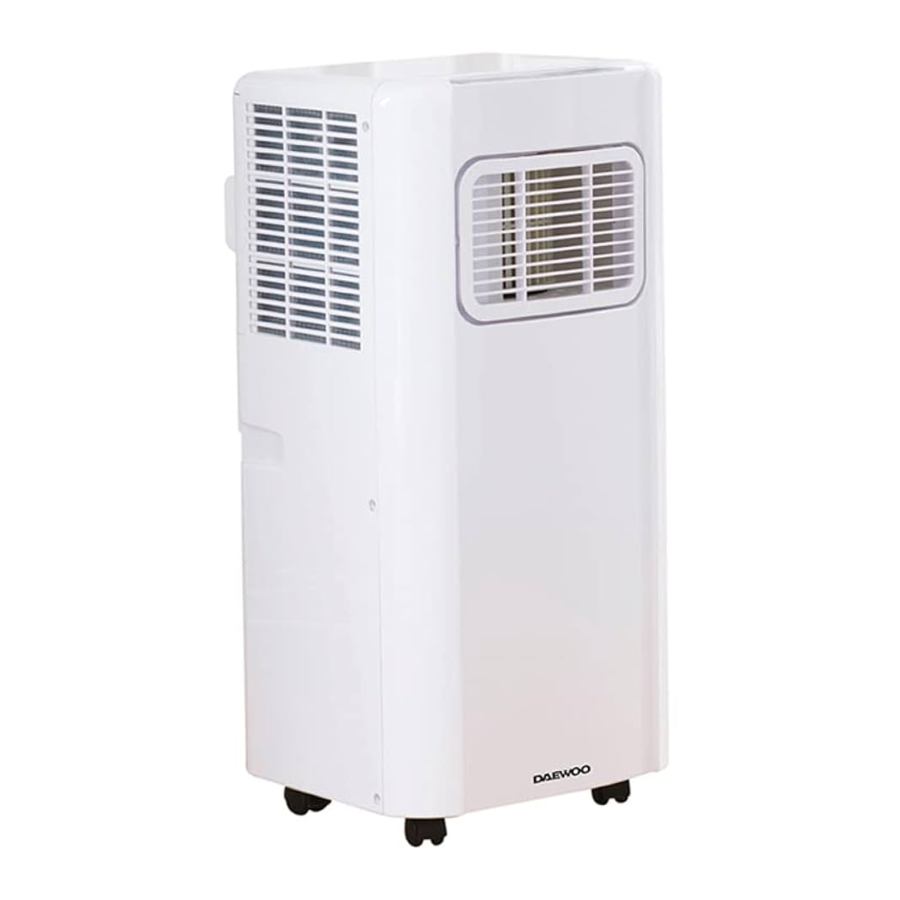

Daewoo COL1317 - 3 In 1 Portable Air Conditioning Unit 7000 BTU Manual

Description of parts

Rear Panel
Air Inlet
Exhaust
Castors
Control Panel
Air Outlet
Power Cord
Air Inlet
Internal Tank Drain

Control panel

Fan Speed and Timer Indicators.
LED Display.
Mode Indicators.
Power ON/OFF Switch.
Temperature/Time + Button
Temperature/Time - Button.
Remote Signal Receiver.
Mode Selection Button.
Fan Speed Selection Button.
Timer Select Button

Vent kit

Flexible Hose
Hose Connector
Hose Exit Ring

Fitting the Flexible Hose – the hose must be fitted before use

First fit the hose connector (2) to one end of the hose as follows:

Extend one end of the flexible hose (1) by about 10cm

Screw the hose connector (2) onto the end of the hose in a clockwise direction.

Next attached the hose exit ring (3) to the other end of the hose as follows:

Extend the other end of the flexible hose (1) by about 10cm

Screw the hose exit ring (3) onto the other end of the hose in a clockwise direction.

Next attached the hose exit ring (3) to the other end of the hose as follows:

Hook the flat part of the hose connector (2) into the slot on the rear of the unit as shown left.

Bring the hose connector (2) towards the back of the unit until the notches in the connector line up with the tongues on the rear of the unit. Finally slide the connector down in the direction of the arrow shown left.

Place the exit end of the hose through a suitable outlet such as an open window, door, etc.

NB the unit must be positioned a minimum of 1 metre from any wall or obstruction on all sides.

Before use, check the flexible vent hose is properly fitted.

Ensure the unit is on a level dry surface and the mains supply meets the requirements of the unit.

Do not share sockets with other appliances via a mains adaptor or other means.

Using the Air Conditioning Unit

Cooling Operation

Turn the unit on using the ON/OFF button.
Press the Mode Button until the Cool indicator illuminates.
Press the Temperature + or Temperature – Button to select a desired room temperature (16˚C - 31˚C).
Press the Fan Speed Selection Button to choose the required air flow speed.

NOTE: To create a circulatory effect, the cooled air leaves the unit at an angle and slightly to one side. This is to make space cooling more efficient and is normal.

Dehumidifying Operation

Turn the unit on sing the ON/OFF Button.
Press the Mode Button until the Dehum indicator illuminates. The unit will automatically set the temperature to 2˚C below the room temperature and the fan speed to low.

Fan Only Operation

Press the Mode Button until the Fan indicator illuminates.
Press the Fan Speed Selection Button to choose the required air flow speed.

Timer Operation

Time ON Setting.

When the unit is OFF, press the Timer button and select a desired ON time using the Temperature/Time + and – Buttons.
The ON time is displayed on the LED Display as a number of hours to the ON time (0 – 24Hrs).

Time OFF Setting

When the unit is ON, press the Timer button and select a desired OFF time using the Temperature/Time + and – Buttons.
The OFF time is displayed on the LED Display as a number of hours to the OFF time (0 – 24Hrs).

Remote Control

The controls on the control panel are duplicated on the remote control to allow full function use of the remote

Batteries

Remove the battery compartment cover on the back of the remote control by pushing back the clip and removing.
Insert 2 x AAA batteries (not supplied) into the battery compartment observing the polarity markings on the inside.
Replace the battery cover.
Do not mix old and new batteries together.
It is recommended that batteries are removed if the remote is not to be used for a long time period.

Internal Water Tank and Draining

During normal use, a majority of the moisture collected will be evaporated internally by the unit and expelled through the exhaust (3). However, the internal water tank will eventually fill to its maximum capacity and the Water Full (WF) indicator will illuminate on the control panel to show the tank is full.

To empty the water tank, take the unit outside, remove the bung from the drain at the bottom rear left of the unit and allow the tank to empty. Alternatively connect a hose to the drain and lead it outside to the drain the tank.

NB ensure the drain bung is replaced before using the unit again.

Internal Water Tank and Draining
The Water Tank Drain bung on the bottom left of the rear panel (arrowed).

Air Filter

The air filter is located behind the side air inlet grille and will need occasional cleaning. To clean the filter remove the filter by pulling the tab, the filter can be cleaned in lukewarm (40˚C) water with mild detergent. See image left.

After washing allow the filter to dry naturally, laid flat to avoid stretching.

Ensure that the filter has fully dried before refitting it to the unit. NB do not use the unit without the filter fitted.

The Air Filter located on the top left hand side of the unit (shown partially removed). To remove, slide the filter out in the direction of the arrow.

Safety

The unit is fitted with an automatic high temperature shut off device, if the air inlet or exhaust are blocked the unit will shut down safely.

After clearing the blockage, allow 5 minutes before restarting the unit.

Cleaning and Maintenance

Clean the surface of the unit with a damp cloth and mild detergent. Excess dust etc can be removed from grilles and exhaust using the nozzle attachment of a vacuum cleaner.

Troubleshooting

Problem	Reason	Solution
The unit does not power up	No power supply Water tank is full Timer function is active Room temperature is too low	Power on and turn on the unit Drain the water tank Cancel timer function Reset temperature on unit
Unit not performing well	Unit is in direct sunlight Filter is dirty Air inlet or outlet is blocked	Shade the unit with curtains/ blinds Remove and clean the filter Remove any blockage or debris from the inlet/outlet
Compressor not working	Overheat protection device has operated	Check venting then allow the unit to cool for 5 minutes before restarting
Remote control not working	Operating distance is too far. Batteries are flat	Move closer to the unit. Replace batteries
Unit is noisy	The unit is located on an uneven surface	Position the unit on a flat level surface
E2 Code displayed	Water tank full	Drain the water tank

Technical Data

Model Number: COL1317

Cooling Capacity: 7000 BTU/h (2.65kW)

Refrigerant: R290 (160g)

Operating Pressure: Discharge 2.6MP
Suction 1.0MPa

Maximum Pressure: Discharge 3.2MPa
Suction 1.2MPa

Weight: 19kg

Rated Voltage: 220-240V

Rated Current: 3.4A

Rated Power Input: 785W

IP Rating: IP20

Sound Power Level: 65dB(A)

Electrical Connections

This appliance is fitted with a fused three-pin plug to BS 1363. If the plug has to be removed, it should be cut off and carefully disposed of immediately. To avoid a possible shock hazard, do not insert the discarded plug into a mains socket.

Fitting a new plug

If for any reason you need to fit a new plug, the flexible mains lead must be connected as shown below. The wires in the mains lead fitted to this appliance are coloured in accordance with the following code:
Fitting a new plug

The Blue wire must be connected to the terminal marked N or coloured Black.
The Brown wire must be connected to the terminal marked L or coloured Red.
The Green & Yellow wire must be connected to the terminal marked E or coloured Green.
Check that there are no cut or stray strands of wire inside the plug.
Use a 3 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
If you are in any way unsure which plug or fuse to use, always refer to a qualified electrician.
After replacing or changing a fuse on a moulded plug, the cover must be refitted to the plug; the appliance must not be used without a fuse cover.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

Read and familiarise yourself with all operating instructions before using this Air Conditioner.
Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
If you are in any doubt about the suitability of your electricity supply have it checked and, if necessary, modified by a qualified person.
Disconnect the power plug from the socket before dismantling, assembling or cleaning.
Avoid touching any moving parts within the appliance.
Never insert fingers, pencils or any other objects through the guard.
This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understands the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Do not leave children unsupervised with this appliance.
Do not clean the unit by spraying it or immersing it in water.
Never connect the appliance to an electrical outlet using an extension lead. If an outlet is not available, one should be installed by a qualified electrician.
Never operate this appliance if the cord or plug are damaged. Ensure the power cord is not stretched or exposed to sharp objects or edges.
A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard.
Any service other than regular cleaning or filter replacement should be performed by an authorised service representative.
Do not use this appliance for any other purpose than it's intended use.
The air conditioner must always be stored and transported upright, otherwise irreparable damage may be caused to the compressor; if in doubt, wait at least 24 hours before restarting the unit.
Avoid restarting the air conditioner unless 3 minutes have passed since being turned off. This prevents damage to the compressor.
Never use the mains plug or external timer as a means of switching the air conditioner on or off. Use the ON/OFF button located on the control panel.
Always place the unit on a dry and stable surface.
The appliance should not be placed in a laundry or wet room.
The appliance must be placed in a room without sources of ignition (for example: open flames, an operating gas appliance or an operating electric heater)
The appliance must be installed and used in a room with a floor area larger than 4m2
This appliance contains R290 refrigerant gas. For quantity see rating label on the rear of the unit.
R290 refrigerant gas complies with EU environmental directives.
Refrigerant gas may be odourless, if the appliance is used or stored in an unventilated room, the room must be such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources of ignition.
The refrigerant system should not be perforated.
The appliance must be stored in such a way as to prevent mechanical failure.
Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified persons must be performed under the supervision of an individual specified in the use of flammable refrigerants.
