Upper Belt Replacement - OXE 30-0101-200 Service Manual

204

UPPER BELT REPLACEMENT

UPPER BELT REPLACEMENT
1.
Remove upper belt assembly, refer to
2.
Drain gear oil, refer to Change Upper belt oil.
3.
Put the unit on a workbench, belt housing bracket upwards.
4.

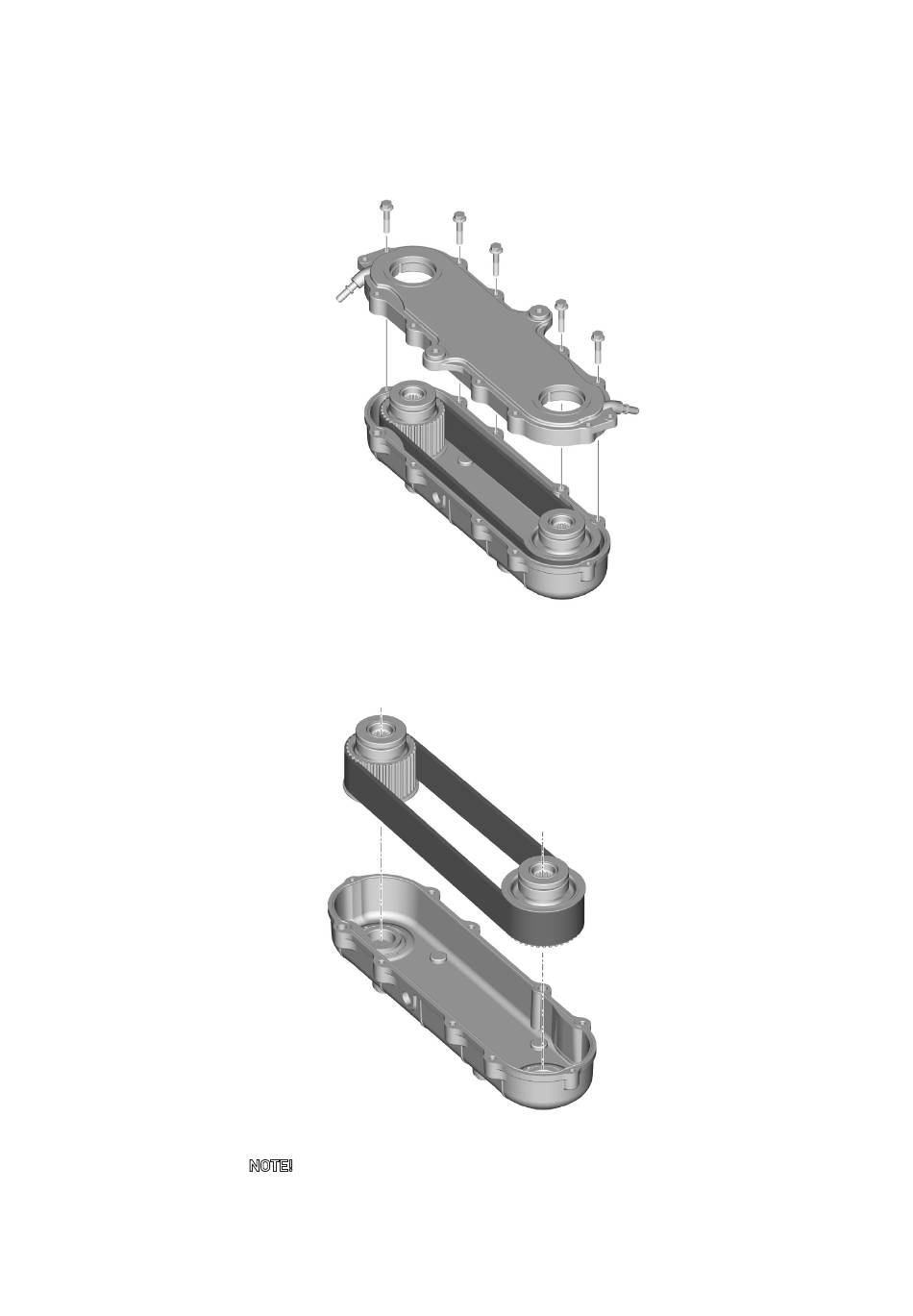

Remove 10 bolts and lift off the belt housing bracket.
5.
Lift up the belt pulleys and belt.
NOTE! The belt pulleys fit in just one hole respectively. Guide pins ensure
correct belt housing assembling.
6.
Replace the belt and mount in reverse order.
OXE 150/200 HP SERVICE MANUAL
Upper belt assembly removal.
