CAMSHAFT TIMING BELT REPLACEMENT

TIMING BELT REMOVAL

4.
Remove the alternator drive belt, see Alternator belt replacement.
5.

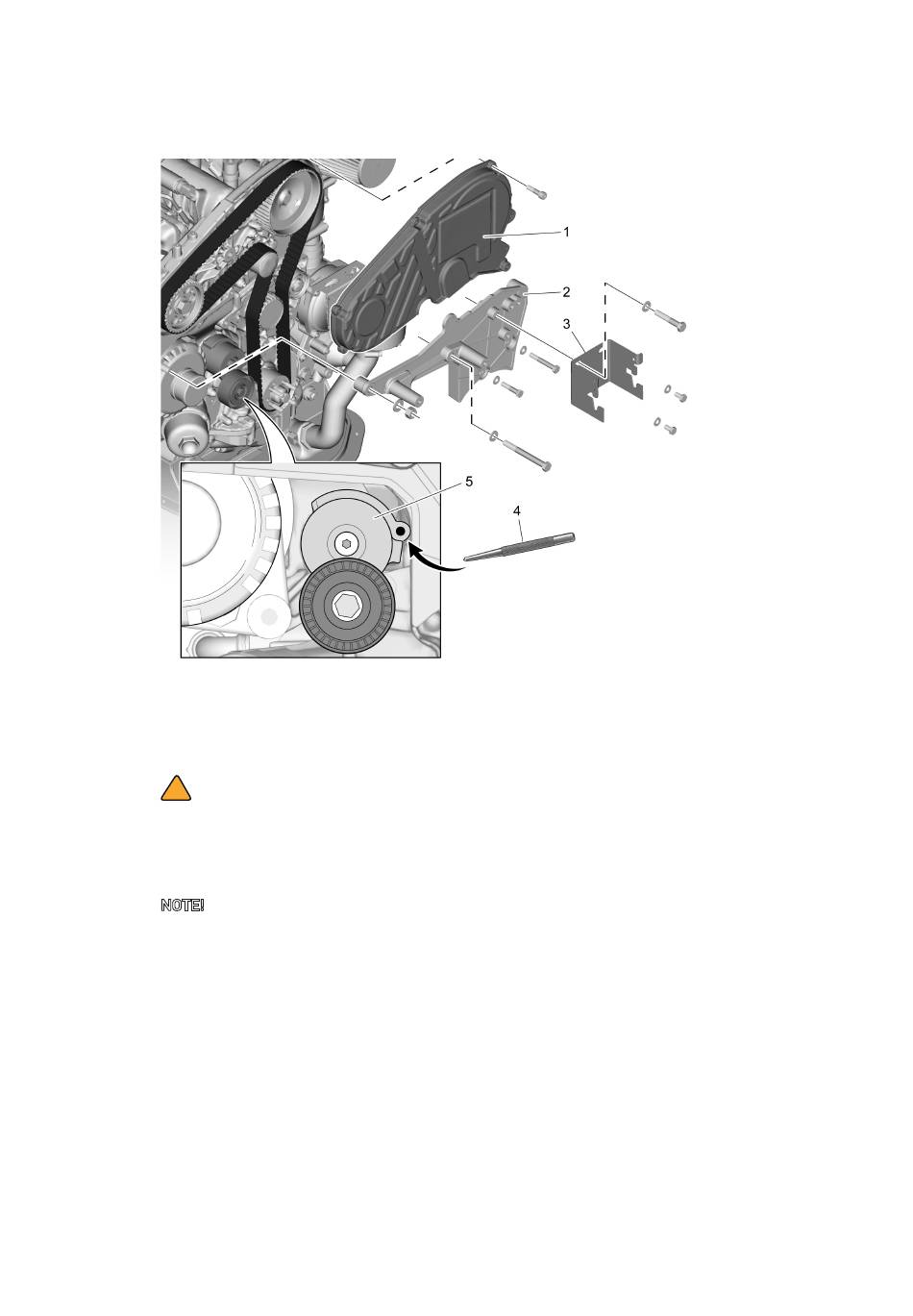

Remove cover (1).
6.
Remove cover (2) and fuel filter bracket (3).
!
CAUTION
Release the tensioner pulley by rotating it clockwise. Lock the tensioner (5)
in place by means of a mandrel (4) as it otherwise could clamp the timing belt
lower front cover.
NOTE!
-
Check condition of timing belt for signs of damage to help determine the root
cause of the failure.
-
The timing belt cannot be reused.
- Avoid the contact with cooling fluid and oil, it will damage the timing belt. A
damaged timing belt can not be reused.
