CYLINDER HEAD REPLACEMENT

FOLD AWAY THE ENGINE WIRING HARNESS

NOTE! If the injectors are to be refitted, mark the injectors so that they can
be refitted to the same cylinder.
8.
Remove the injectors, see Fuel injection fuel rail assembly replacement.
Refer to Fuel Injector Replacement.
9.
Remove the fuel rail and hose, see Fuel injection fuel rail assembly
replacement.
10.

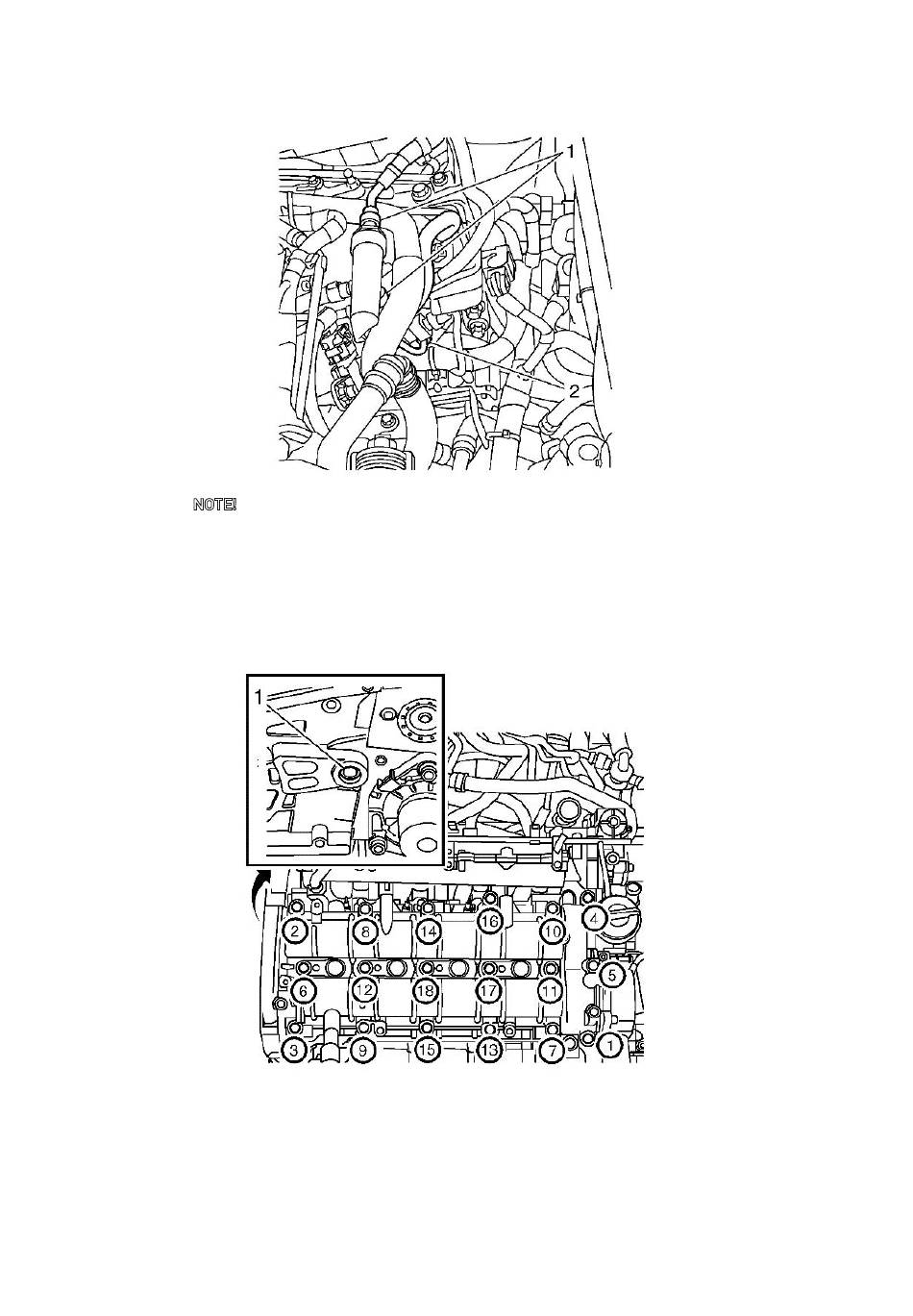

Remove the bolt (1) between the fuel pump bracket and cylinder head, screw
out the spacer bolt a few turns.
11.
Undo and remove the camshaft housing and guide sleeves. Loosen bolts
alternately in order as illustrated.
