CUSTOM PACKAGED
ELECTRONIC
AIR CLEANERS
Model 73 Series Units
Integral Washing System
INSTALLATION
OPERATION
SERVICE
For Model Numbers
Electrostatic Precipitators for
Commercial & Industrial
Applications
TRION INC.
101 McNeill Road
Sanford, NC 27330
(919) 775-2201
Fax: (919) 774-8771
MANUAL PART NO. 147417-001
with
11/94
Advertisement
Table of Contents
Related Manuals for Trion 73 Series
Summary of Contents for Trion 73 Series

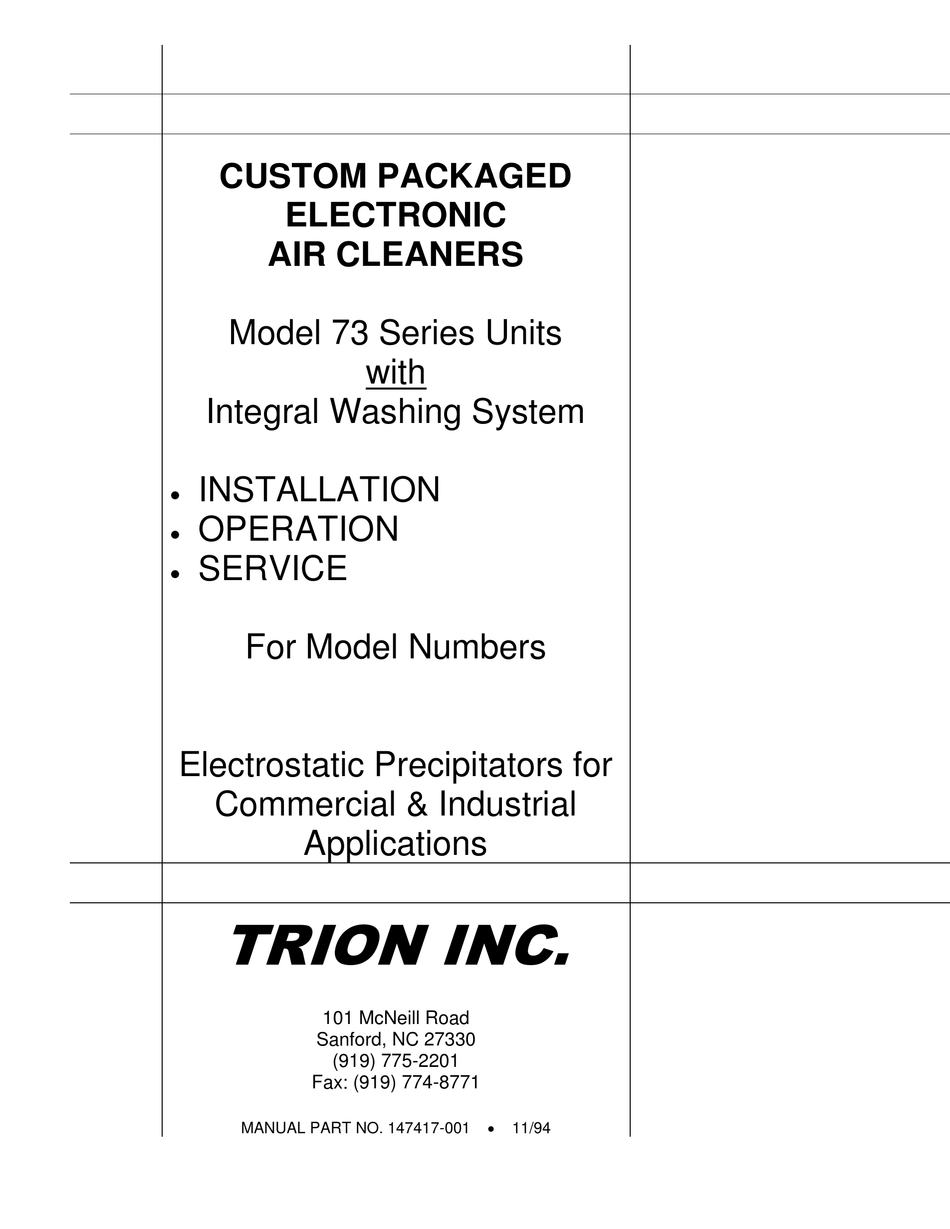

- Page 1 CUSTOM PACKAGED ELECTRONIC AIR CLEANERS Model 73 Series Units with Integral Washing System INSTALLATION OPERATION SERVICE For Model Numbers Electrostatic Precipitators for Commercial & Industrial Applications TRION INC. 101 McNeill Road Sanford, NC 27330 (919) 775-2201 Fax: (919) 774-8771 ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION I DESIGN For The System Design Engineer Page 1. General Description ........................1 2. System Design and Layout ......................1 SECTION II INSTALLATION For The Installing Contractor 1. Unpack and Inspect ........................2 2. Position Air Cleaner Cabinet ..................... 2 3. -
Page 3: Section I Design
Refer to Figure 1, Section IV, Page 9. Contact the local application, adjoining equipment and available space. Trion Sales Office or the factory if questions arise, or any However, there are several basic factors pertaining to all additional information is required. -
Page 4: Section Ii Installation
Control near the Power Pack(s). The Control should also be mounted at When the blower is installed downstream from the Trion eye level with adequate space provided for service. Refer cabinet, the ducting between the cabinet and the blower... -
Page 5: Complete Wiring
Detergent Tank is clear of any foreign materials. collected contaminate. C. The drain line from the Trion drain basin is clear and completely connected to its point of termination. 2. General Description D. -
Page 6: Initial Start-Up
Figure 2. model are listed in GPM on the Piping Schematic. To D. Be sure that the drain line from the Trion Cabinet adjust the volume output from the pump, refer to the Drain Basin is completely connected and properly Detergent System Outline. -
Page 7: Wash Control And Detergent System Settings
The detergent, as detergent solution. Average settings have been factory set supplied by Trion, Inc., is formulated specifically for and are outlines in the Control Schematic, sequence of Electronic Air Cleaners. If substitutes are used, they operation. -
Page 8: Periodic Maintenance
C. Electrical Operation GROUND AND POINTS OF HIGH VOLTAGE DC POTENTIAL. The front of the power pack(s) is equipped with a milliammeter. Some models also contain a voltmeter. A. General The milliammeter should be observed on a routine basis to be sure that it is reading within the prescribed Outages in electrostatic precipitators occur more operating range as marked on the data plate. -
Page 9: Spare Parts
For between cell tiers proceeding specific recommendations, consult the Trion factory or described above. Start by disconnecting the nearest Sales Office. Consideration, however, should be bottom tier of cells first and work upward. given to stocking the following components;... -
Page 10: Trouble Reference Chart
TROUBLE PROBABLE LOCATION REASON - CORRECTION SYMPTOM CAUSE 1. Defective insulator(s) – replace Circuit breaker Short circuit Ionizing section of cell 2. Dirty insulator(s) – clean tripping off and/or 1. Foreign material bridging plates – excessive arcing Collecting section of cell clean 2.
