L R WAN D
O A OWNLINK

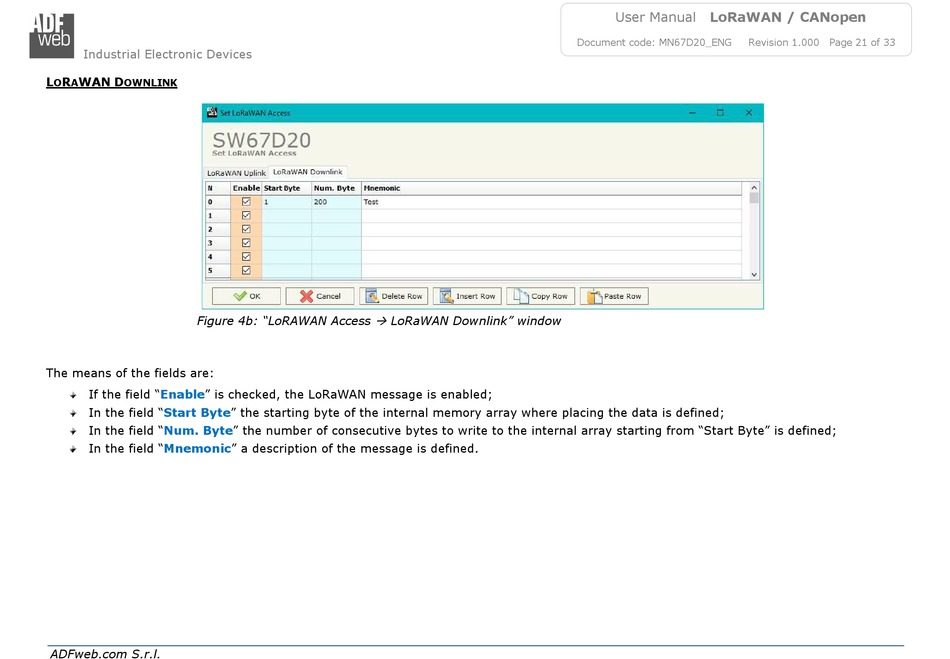

Figure 4b: "LoRAWAN Access
The means of the fields are:
If the field "Enable" is checked, the LoRaWAN message is enabled;
In the field "Start Byte" the starting byte of the internal memory array where placing the data is defined;
In the field "Num. Byte" the number of consecutive bytes to write to the internal array starting from "Start Byte" is defined;
In the field "Mnemonic" a description of the message is defined.
ADFweb.com S.r.l.
 LoRaWAN Downlink" window
