TOOLS REQUIRED
1x 4mm Allen Key
1x 3mm Allen Key
PARTS INCLUDED
1x Base with feet fitted
1x M8 Eye Bolt
1x Carabina clip
1x Bottom Straight Pole
4x M6x10mm Allen screws
1x Cable with plug fitted
HAWAII WAVE INSTALLATION GUIDE
1x Top Curved Pole
4x M6 Split washers
1x M5x12mm Allen screw
1x Hawaii 2000
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Herschel HAWAII WAVE
Summary of Contents for Herschel HAWAII WAVE

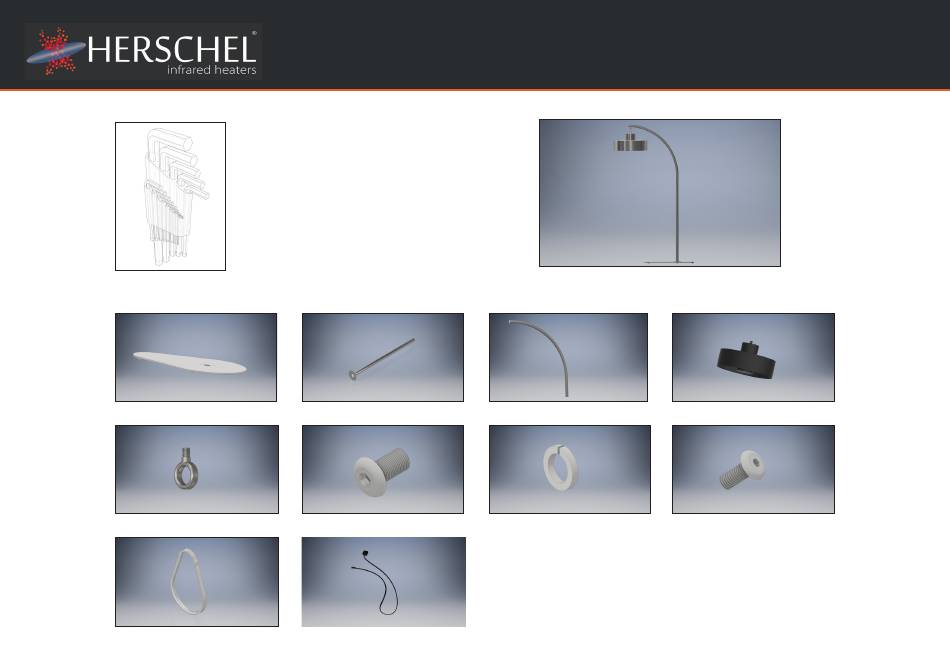

- Page 1 HAWAII WAVE INSTALLATION GUIDE TOOLS REQUIRED 1x 4mm Allen Key 1x 3mm Allen Key PARTS INCLUDED 1x Hawaii 2000 1x Base with feet fitted 1x Bottom Straight Pole 1x Top Curved Pole 1x M8 Eye Bolt 4x M6x10mm Allen screws...
- Page 2 Exploded View Step 1 Feed the cable up through the hole in the bottom of the base plate. Feed the end with the small connector not the 3-pin plug end. M8 Eye Bolt Now feed the cable up through the bottom pole so that it end up hanging our of the top.
