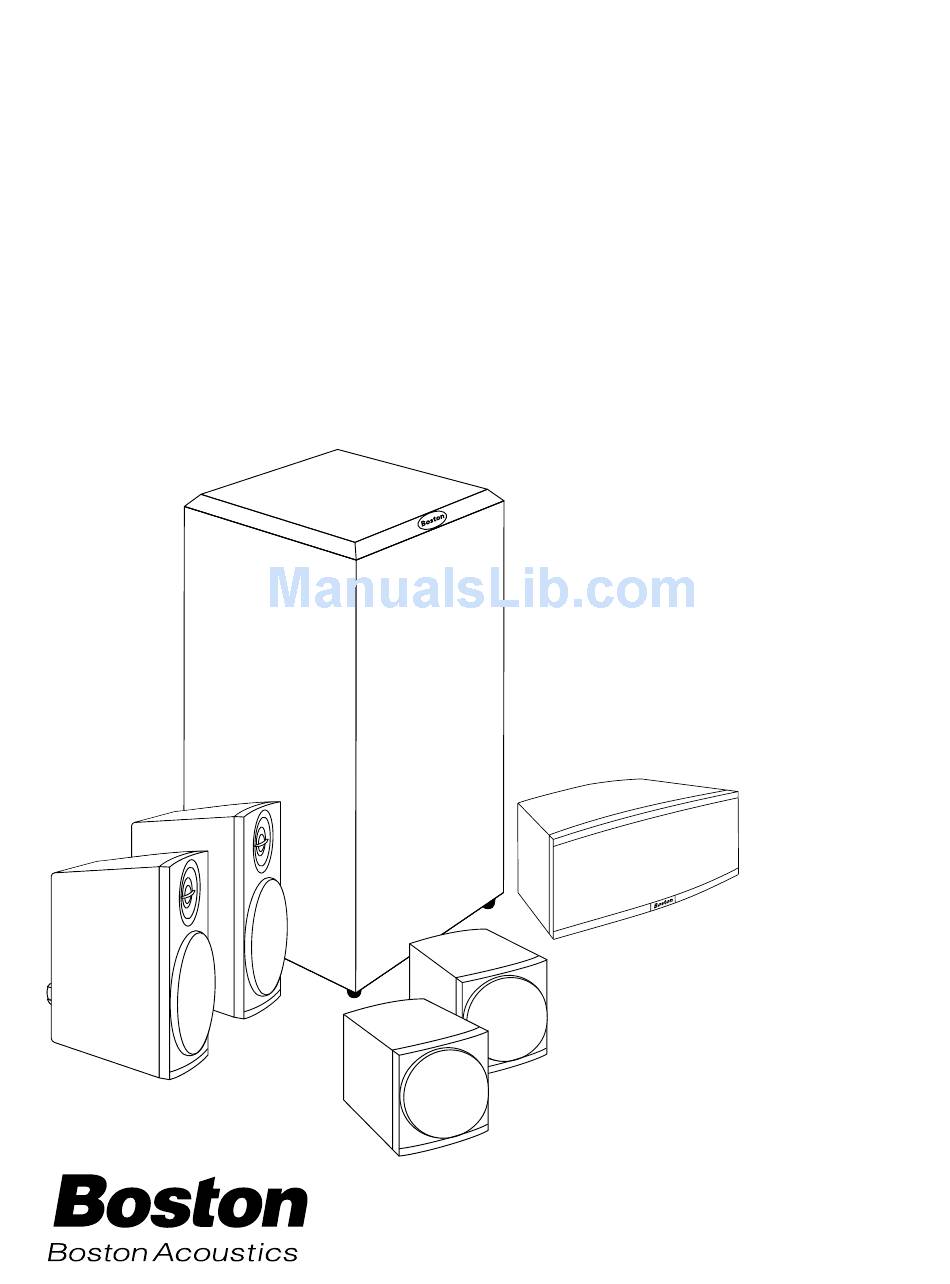

- Page 1 System8000 Micro Reference Series 6-Piece Speaker System with PowerVent Powered Subwoofer ®...
-
Page 2: Safety Instructions
E. The product has been dropped or the enclosure damaged. 17. Servicing: The user should not attempt to service the product beyond what is described in the operating instructions. For all other servicing, consult your dealer or contact Boston Acoustics. -
Page 3: Specifications
Finish Description The Boston Acoustics System8000 home theater system delivers powerful performance for movies and music from small speakers that virtually disappear in your listening room. A potent 65-watt PowerVent and special effects. The two Micro80x left/right satellites and Micro80c center channel speaker use the same drivers, creating a perfect sonic match across the front stage. - Page 4 How to Wire Your Speakers You need to wire your speakers correctly to obtain the best sound quality and the proper image. Wiring should just take a few minutes, but it’s important to do it carefully, since incorrect wiring (such as reversed connections) can result in a poor soundstage or poor bass. We recommend using 18-gauge or larger speaker wire for runs up to 25 feet (8m), and thicker 16-gauge or larger for longer runs.
- Page 5 The subwoofer and front satellites should be wired to connections for the front left and right speakers. Even though the System8000 has a separate subwoofer, when you use speaker-level connections, the two Micro80x satellites and Micro80pv subwoofer look to your receiver like a pair of conventional large speakers.
- Page 6 Connecting the System8000 (cont.) Speaker-Level Connections (cont.) Option 1: Connect the speaker terminals on the Micro80pv to the left and right speaker outputs of your receiver. Use the same speaker outputs that drive the Micro80x satellites. Do not connect the Micro80pv...
- Page 7 Connecting the System8000 (cont.) Speaker-Level Connections (cont.) Alternative options (cont.): In some cases, you may find it easier to use one of the following alternative wiring plans. The resulting sound will be the same. Option 3: Connect the speaker terminals...
- Page 8 Dolby Pro Logic and Dolby Digital Line-Level System Connection Using the line-level connection to the Micro80pv subwoofer generally results in a cleaner system sound, since the receiver no longer has to reproduce the difficult low bass information that can push it into audible distortion (also known as clipping).
- Page 9 Dolby Pro Logic and Dolby Digital Line-Level System Connection (cont.) Dolby Digital Systems If your receiver or processor gives you a choice of subwoofer low-pass crossover settings, select one around 120Hz. This will result in the smoothest overall system response, since the lower response limit of the Micro80x satellite and Micro80c center channel is 120Hz.
- Page 10 Micro80pv Subwoofer Controls Volume: Adjusts the sound level of the subwoofer. If you are using the speaker-level connections, begin with a setting at about the 10:00 o’clock position. When using the line-level connections, begin with a setting around 11:00 o’clock. Your actual setting may vary due to personal taste, pro- gram material, and subwoofer placement.
- Page 11 How to Place Your Speakers Room placement is one of the most important factors for sound quality. Taking a few minutes to try differ- ent placements ensures that your speakers will sound best in your listening environment. Micro80x Satellite Placement We recommend that you center the two satellites in front of your favorite listening position, about 6 to 12 feet (2-4m) apart, and near ear level when you are in a seated position.
- Page 12 Wall-Mounting the Micro80e Effects Speakers Drill two ⁄ " (11mm) holes for toggle wings. If mounting on a surface other than drywall, consult a knowledgeable installer about the proper hardware to use on your wall. If you are running speaker wire behind the wall, drill a (12mm) hole ⁄...
- Page 13 Wall-Mounting the Micro80e Effects Speakers (cont.) 1" (25mm) " (55mm) flathead machine screw #9 x 1" wood screws Attach bracket to speaker with flathead machine screw. Drill two ⁄ " (3mm) pilot holes for wood screws, then mount screws. Leave about ⁄...
-
Page 14: Setting Up Your Home Theater System
Setting Up Your Home Theater System Volume Levels: To obtain the best home theater effect, match the sound levels of each speaker. Home theater systems include a test signal that simplifies this level matching. Refer to the instruc- tions provided with your surround-sound electronics. Center Channel Mode: Generally, with all surround systems, including Dolby ®... -
Page 15: Troubleshooting
An optional pedestal shelf stand/wall-mount bracket (Model MRB) is available for the Micro80x that provides greater positioning flexibility. For more information, contact your dealer or Boston Acoustics directly. -
Page 16: Limited Warranty
If Service Seems Necessary First, contact the dealer from whom you purchased the System8000. If that is not possible, write to: Boston Acoustics, Inc. 300 Jubilee Drive Peabody, MA 01960 U.S.A. We will promptly advise you of what action to take. If it is necessary to return your speaker to the factory, please ship it prepaid.
