Summary of Contents for Boston Acoustics Micro 100x

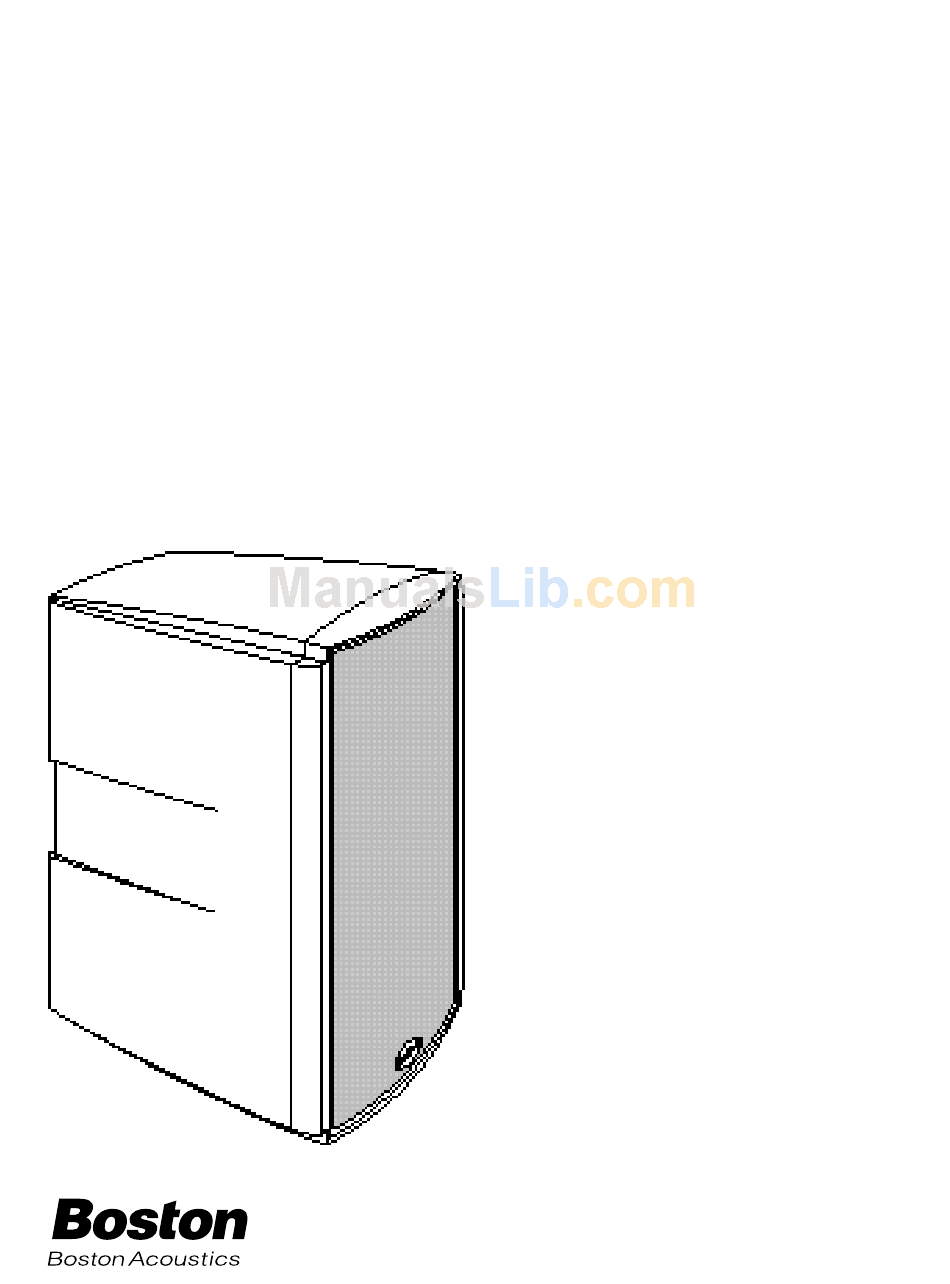

- Page 1 System10k Micro100x Micro Reference Series...
-
Page 2: Specifications
Specifications Frequency Response ( ± 3dB) Recommended Amplifier Power Nominal Impedance Sensitivity [1 watt (2.83v) at 1m] Bass Unit Tweeter Dimensions (HxWxD) Weight/each Finish Computer-optimized crossover 64–20,000Hz 15–150 watts 8 ohms 89dB SPL ¼ ” (135mm) cast aluminum basket, copolymer cone and butyl rubber surround 1”... - Page 3 Five Micro100x speakers combined with a Boston powered subwoofer form the Micro Reference System10k, a home theater speaker system that delivers no-compromise performance with virtually unlimited placement flexibility. Grille Design The grille is made of perforated metal with a high percentage of open area for minimum effect on high frequency performance.
- Page 4 How to Wire Your Speakers You need to wire your speakers correctly to obtain the best sound quality and the proper image. Wiring should just take a few minutes, but it’s important to do it carefully, since incorrect wiring (such as reversed connec- tions) can result in a poor soundstage or poor bass.
- Page 5 Connections WARNING: To prevent electrical shock, always switch off the amplifier or receiver when making connections to the speaker. Wire the Micro100x satellites as shown. Consult your subwoofer's manual for the proper way to connect your subwoofer to your system. Placement For best results, place the speakers as shown.
- Page 6 Bookshelf Mounting Self-adhesive cone-shaped aluminum feet are provided to stabilize the speaker when used on speaker stands or on the television. The speaker may also be angled up or down by using the feet only at the front or rear of the speaker. Wall-Mounting the Micro100x The Micro100x may be wall-mounted using the supplied bracket.
- Page 7 Aftermarket Mounts A single tapped hole on the back of the speaker can be used with any available pivoting bracket that uses ”-20 thread. Consult your dealer for more details. Setting Up Your Home Theater System Volume Levels: To obtain the best home theater effect, match the sound levels of each speaker. Home theater systems include a test signal that simplifies this level matching.
-
Page 8: Limited Warranty
Limited Warranty For five years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the Micro100x speaker, without charge for parts and labor. Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative and to present proof of purchase in the form of your sales slip when requesting service.
