Boston Acoustics 9000 Manual

Micro speaker series 6-piece speaker systems with powervent powered subwoofers

Advertisement

9000II_9500 manual rev2
7/16/01
3:42 PM
Page 1
Micro System9500
Micro System9000 II
Micro Speaker Series
6-Piece Speaker Systems with
PowerVent
®
Powered Subwoofers

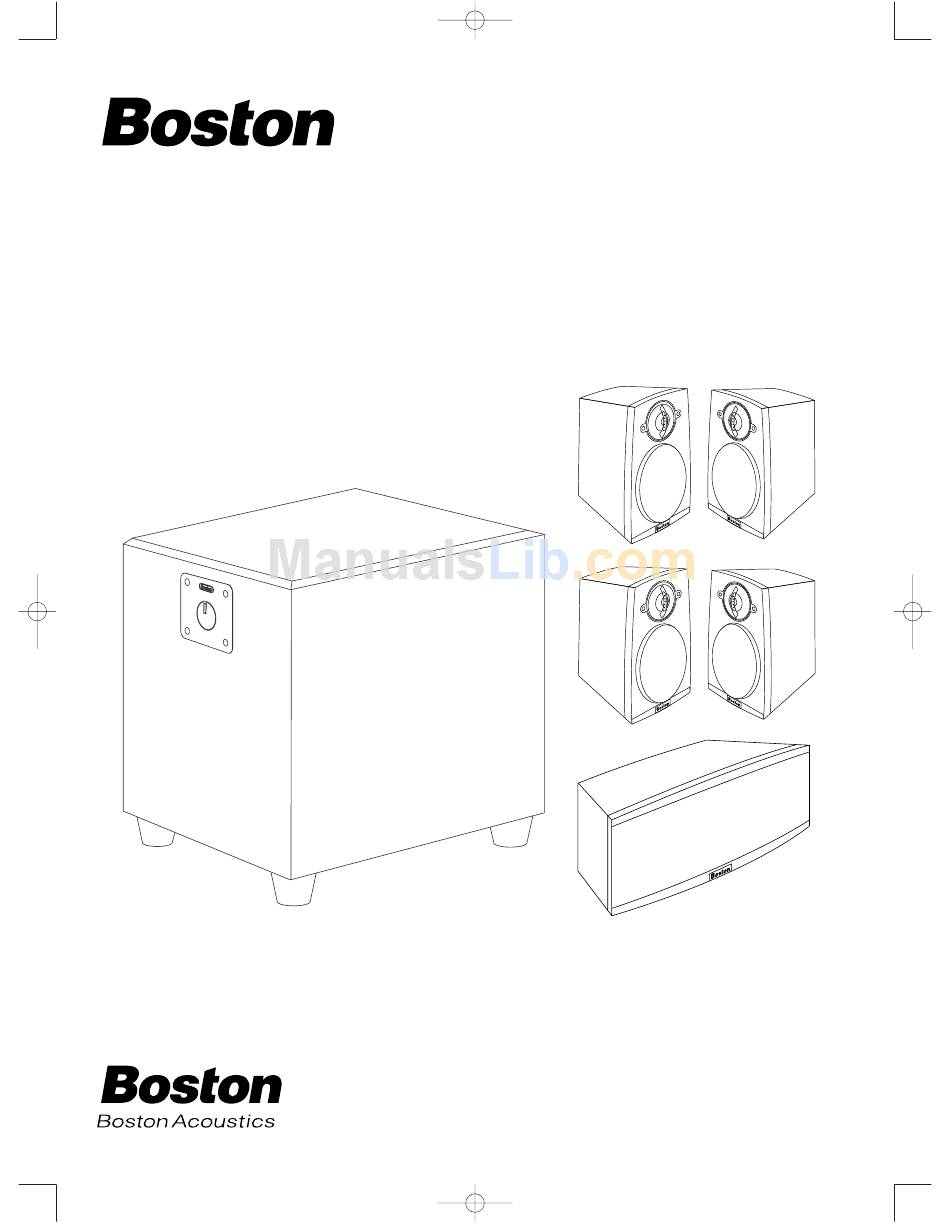

Micro System9500 shown

Advertisement

Table of Contents
loading

Summary of Contents for Boston Acoustics 9000

  • Page 1 9000II_9500 manual rev2 7/16/01 3:42 PM Page 1 Micro System9500 Micro System9000 II Micro Speaker Series 6-Piece Speaker Systems with PowerVent ® Powered Subwoofers Micro System9500 shown...
  • Page 2: Important Safety Instructions

    18. Servicing: The user should not attempt to service the product beyond what is described in the operating instructions. For all other ser- vicing, consult your dealer or contact Boston Acoustics. 19. Overloading: Do not overload wall outlets, extension cords, or inte- gral convenience receptacles as this can result in a risk of fire or electric...
  • Page 3: Regulatory Compliance Statements

    Déclaration de Conformité Declaración de Conformidad Verklaring de Overeenstemming Dichiarazione di Conformità We/Wir/Nous/WIJ/Noi: Boston Acoustics, Inc. 300 Jubilee Drive Peabody, MA 01960 U.S.A. declare under sole responsibility that the product Micro90pv II to which this declaration relates, is in conformity with the following standards or other normative documents: auf das sich diese Erklärung bezieht,...
  • Page 4 9000II_9500 manual rev2 7/16/01 MicroSystem9000 II Specifications System Frequency Response (±3dB) Recommended Amplifier Power Nominal Impedance Sensitivity (1 watt [2.83v] at 1m) Subwoofer Amplifier Power Bass Unit (Micro90pv II subwoofer) Midrange (all) Tweeter (Micro90x II, Micro90c II) Tweeter (Micro80x II) Crossover Frequency Dimensions (HxWxD) Weight...
  • Page 5 3:42 PM Page 5 Description The Boston Acoustics Micro System9000 II and Micro System9500 home theater speaker systems deliver powerful performances for movies and music from small speakers that virtually disappear in your listen- ® ing room. The potent 120-watt PowerVent subwoofer in the Micro System9000 II and the earth-shaking ®...
  • Page 6 There are three ways to wire the subwoofer to your speaker connections; each way produces the same result (see options 1, 2 and 3). You may want to use long wires to the subwoofer at first, so you may experiment with placement.
  • Page 7 9000II_9500 manual rev2 7/16/01 Connecting Your MicroSystem (cont.) Speaker-Level Connections (cont.) Option 1: Connect the speaker terminals on the subwoofer to the left and right speaker out- puts of your receiver. Use the same speaker outputs that drive the front satellites. Do not...
  • Page 8 After checking the satellites, you can perform this same test with the subwoofer by reversing the speaker wires at one of its two pairs of terminal connectors. If the bass output is reduced, then the original connections were correct.
  • Page 9 Page 9 Use either jack, depending on your receiver Micro pv Subwoofer Sub out LFE out Main Center speakers Right speaker Left Right Speaker level in Left Micro90x II Right Micro90x II line level in from from sub out LFE out...
  • Page 10 Micro90c II NOTE: It is also acceptable (though not optimal) to connect the subwoofer to the Dolby Digital receiver’s “Sub out” or “LFE out” without also using speaker wires. In this configuration, on your receiver’s set-up menu: Select “SMALL” for the front left/right speakers.
  • Page 11: Subwoofer Volume Control

    Page 11 Subwoofer Volume Control Volume: Adjusts the sound level of the subwoofer. If you are using the speaker-level connections, begin with a setting at about the 10:00 o’clock position. When using the line-level connections, begin with a setting around 11:00 o’clock. Your actual setting may vary due to personal taste, program material, and subwoofer placement.
  • Page 12 This low-profile, dedicated speaker is designed to rest unobtrusively on top of your television. The speaker’s MagnaGuard The front of the speaker should be flush with the front of the television. The speaker includes four self-adhesive rubber feet to protect the TV’s finish and to prevent vibration. Stick one in each end of the two long rectangular recesses located on both sides under the speaker housing (see “Placement of Rubber Feet”...
  • Page 13: Setting Up Your Home Theater System

    Start by sticking one in each recess located at the two rear corners (see below). This will stabilize the speaker and angle it downward slightly. If you wish to remove this angle, either stick one more foot to the front center directly behind the center of the logo plate or stick a foot on either front corner, directly in-line with the rear feet (see below).
  • Page 14: Troubleshooting

    If necessary, replace the fuse with a same-type fuse or consult a service technician. Listening Levels and Power Handling The power recommendation for the speaker assumes the amplifier is not overdriven, which, over a long period, can damage even our rugged speakers. If you hear a harsh, gritty noise, turn down the volume control.
  • Page 15: Limited Warranty

    Page 15 Limited Warranty For five years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in the normal use of the Micro90x II and Micro80x II satellites, and Micro90c II center channel speaker without charge for parts and labor.
  • Page 16 Peabody, MA 01960 U.S.A. 978.538.5000 www.bostonacoustics.com 3:42 PM Page 16 DCD is a trademark MagnaGuard, Boston, and Boston Acoustics are registered trademarks of Boston Acoustics, Inc. Dolby and Dolby Pro Logic are registered trade- marks of Dolby Laboratories Licensing Corporation. © 2001 Specifications subject to change without notice.
