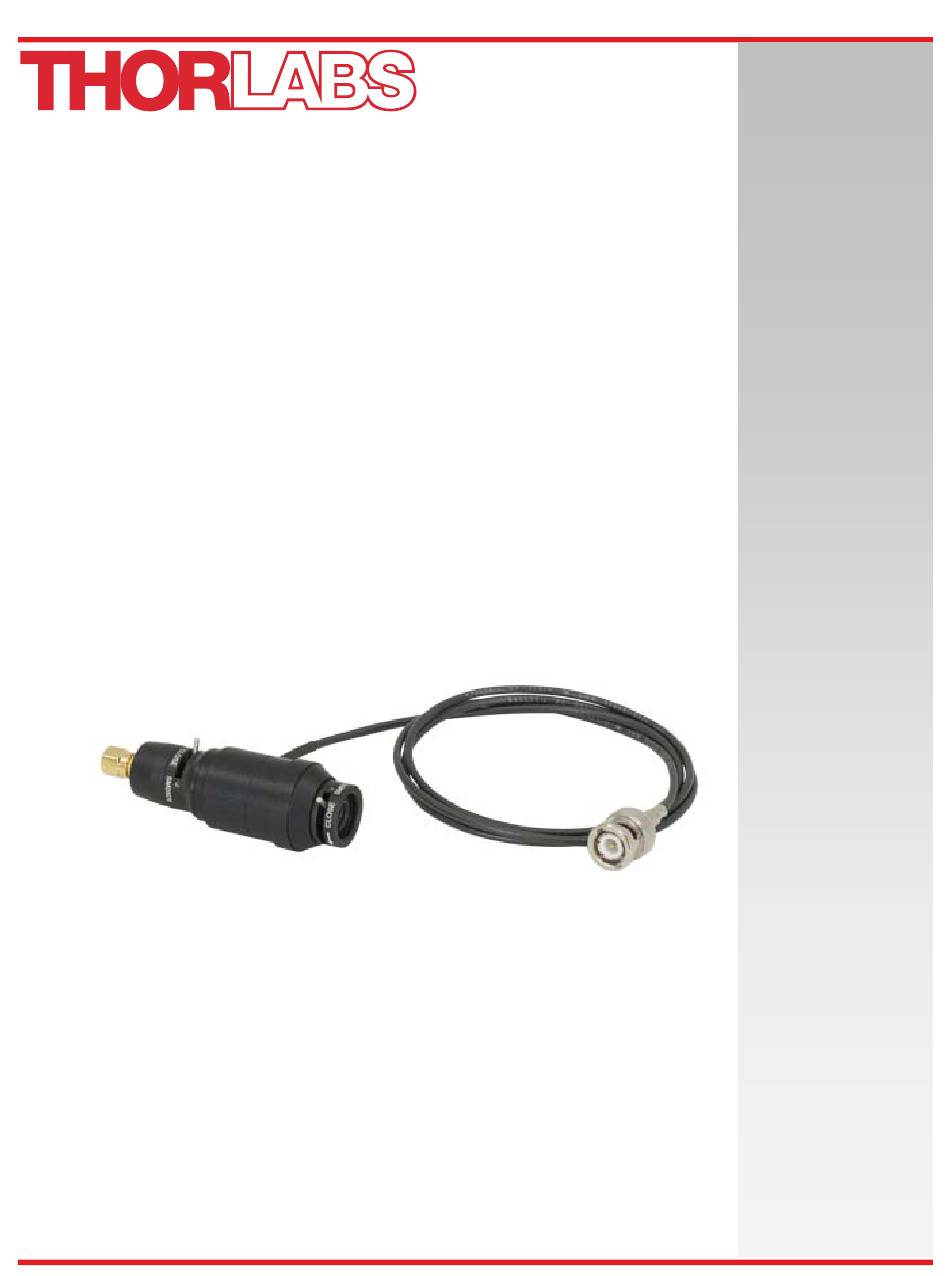

- Page 1 SA210 Series Fabry Perot Interferometer User Guide...
-
Page 3: Table Of Contents
Alignment ....................... 7 Chapter 7 Specifications ......................8 Chapter 8 Regulatory ......................9 8.1. Waste Treatment is Your Own Responsibility .............. 9 8.2. Ecological Background ....................9 Chapter 9 Thorlabs Worldwide Contacts ................10 ... -
Page 4: Chapter 1 Warning Symbol Definitions
Fabry-Perot Interferometer Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 5: Chapter 2 Safety
Fabry-Perot Interferometer Chapter 2: Safety Chapter 2 Safety All statements regarding safety of operation and technical data in this instruction manual will only apply when the unit is operated correctly. Please read the following warnings and cautions carefully before operating the device. WARNING Take appropriate measures for eye safety. -
Page 6: Chapter 3 Description

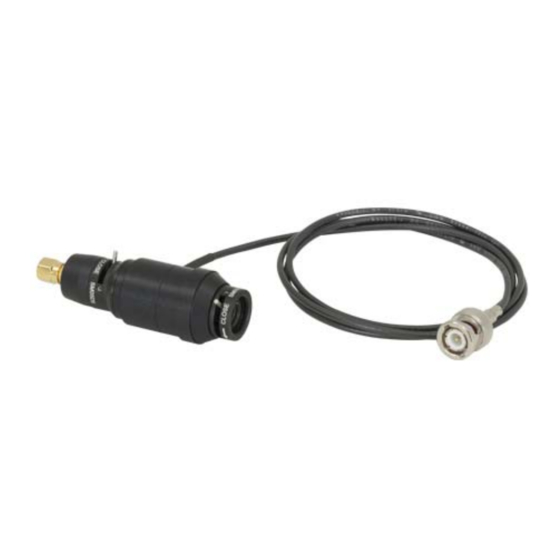

Fabry-Perot Interferometer Chapter 3: Description Chapter 3 Description The SA210 is a high finesse Spectrum Analyzer used to examine the fine structures of the spectral characteristics of CW lasers. The spectrum analyzer consists of a confocal cavity that contains two high reflectivity mirrors; by varying the mirror separation with a piezoelectric transducer the cavity acts as a very narrow band-pass filter. -
Page 7: Chapter 4 Fabry-Perot Interferometry
Fabry-Perot Interferometer Chapter 4: Fabry-Perot Interferometry Chapter 4 Fabry-Perot Interferometry 4.1. Free Spectral Range To scan the spectra of the laser beam entering the Scanning Fabry–Perot interferometer small displacement is applied to one of the cavity mirror mounted on piezoelectric transducers. This operation is done by fine tuning the ramp voltage applied to the Piezoelectric elements using the controller SA201. -
Page 8: Finesse
An offset control is provided to allow the spectrum displayed on the oscilloscope to be shifted right or left, zoom capability provides up to 100X increase in spectral resolution. Thorlabs’ KM100, Ø2" kinematic mount can be used to mount the SA210 Scanning Fabry Perot ... -
Page 9: Chapter 5 Setup
Note: A saw tooth wave (0 - 20 V) would provide approximately 2 FSR. The SA210 should be mounted, so that it can be easily adjusted. It is recommended that Thorlabs 1-inch Kinematic Mount KM100 be used to mount the interferometer at the 1-inch diameter flange. -
Page 10: Chapter 6 Alignment
Alignment To set up the SA210 Series Fabry-Perot, first mount the unit into a tip/tilt mirror mount (item # KM100). Attach all of the connections according the drawing on page 6. Next, remove the detector from the back of the unit and mount it in a separate mount;... -
Page 11: Chapter 7 Specifications
Fabry-Perot Interferometer Chapter 7: Specifications Chapter 7 Specifications Optical Performance Specifications Maximum Input Voltage 150 V Free Spectral Range 10 GHz Minimum Finesse >150 Resolution 67 MHz Outer Housing Material Black Anodized Aluminum Fabry Perot Cavity Material ® Low thermal expansion Invar Ø1"... -
Page 12: Chapter 8 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 13: Chapter 9 Thorlabs Worldwide Contacts
Fabry-Perot Interferometer Chapter 9: Thorlabs Worldwide Contacts Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 14 www.thorlabs.com...
