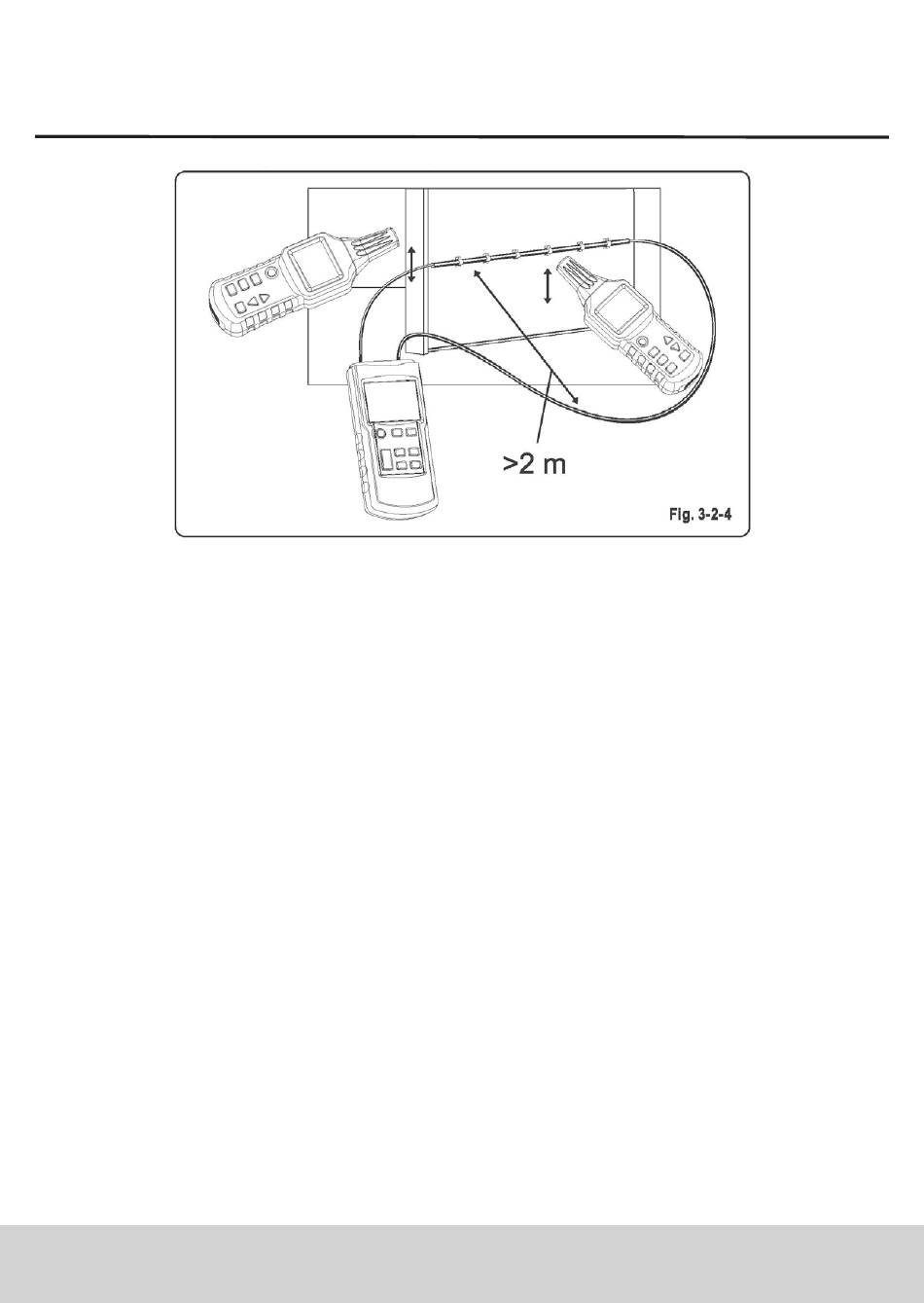

Recommendations
1. In this application, the influence of moisture or mortar on the wall at the
depth of the location is significant.
2. During the circuit detection process, the stronger the signal displayed on
the detector's Nixie tube, the closer the detected wire will be.
3. Adjust the transmit power on the emitter to suit different detection radii.
4. Select manual mode on the receiver and adequate sensitivity on the
reception to locate the circuit precisely.
3.2.5 Classify or determine the installed circuit
Preconditions:
* The circuit must be de-energized.
* The ends of the core cables must be twisted and connected together.
* Connect the emitter as shown in Fig. 3-2-5.
* The measurement method is the same as shown in the example.
