C-LOGIC 3900 Instruction Manual page 11

Cable locator
8. Key to enable or disable mute mode (there will be no key tone in this mode)
9. Key to turn on / off the flash light.
10.Terminal +, input / output of the emitter. The emitter is connected to external
cables with the test connectors through this terminal to send signals and receive the
detected voltage signals.
11. Ground yourself. The emitter is in contact with the earth through this terminal.

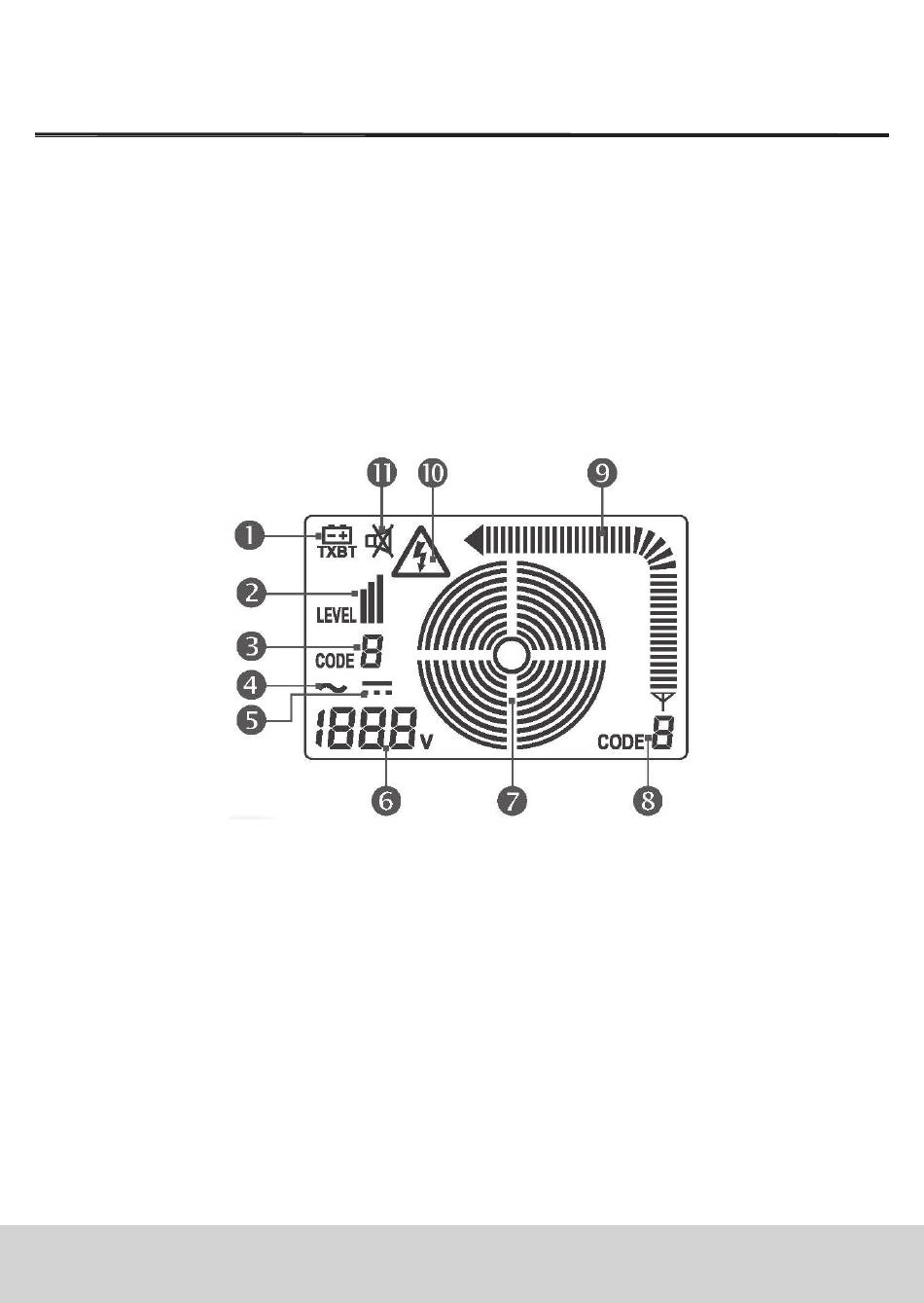

1.3.2 Emisor screen
1. Symbol to indicate the voltage / energy of the transmitter battery.
2. Transmit power level (level I, II or III)
3. Transmitted code (by default F)
4. AC mains voltage
5. DC voltage of the electrical network
6. Mains voltage value (can be used as an ordinary voltmeter; range: 12 to
400V DC / AC)
7. Transmission status.
8. Code being transmitted
9. Intensity of the signal being transmitted.
10. Symbol indicating the voltage in the network.
11. Symbol indicating the mute mode.
11
