Recommendations
1. Full contact with the ground must be assured.

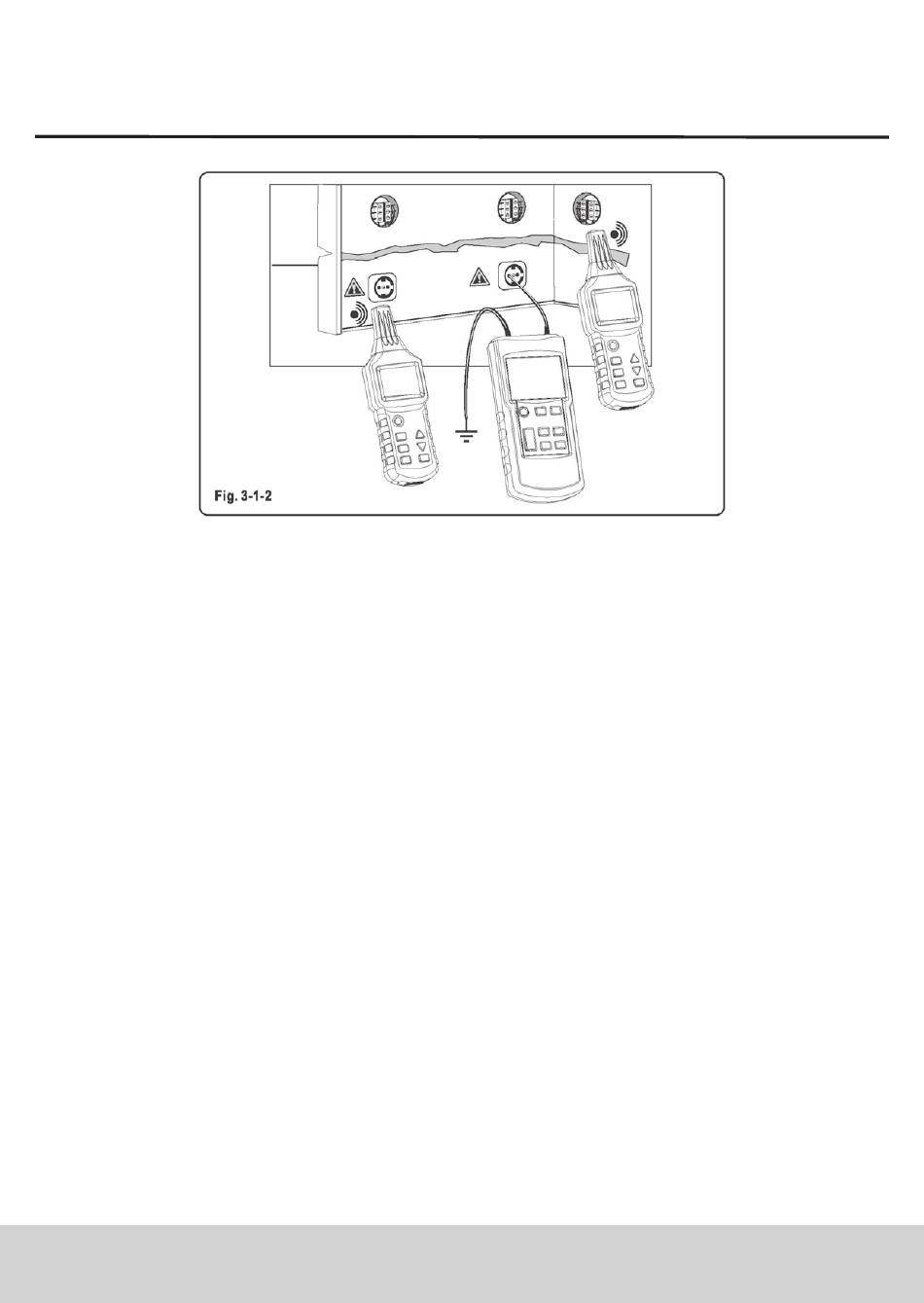

2. With the indication of a pole, the lateral branches of the circuit can also
be located (the fuse must be removed in this example)
3. If the cable that feeds the signals via the transmitter is located, p. For
example, directly in parallel with other conductors (eg cable gap or
conduit), or if these conductors are crossed, the signals also serve as
input for the other conductors.
4. During locating and tracking, the larger the signal displayed, the closer
the locator will be to the lines being drawn.
5. Adjust the transmit power level of the emitter to suit the different
detection radii.
6. The position of the target can be precisely located by setting the manual
mode on the receiver and selecting a suitable sensitivity.
3.1.3 Location of line interruptions
Preconditions:
* The circuit must be unused
* All lines not required must be connected to auxiliary ground according to Fig.
3-1-3.
* Connect the terminal to a wire and auxiliary ground according to Fig. 3-1-3.
