11 Once the cooling head is secured to the cell and the heater cable is properly installed, replace the top
cover on the instrument. Connect the CAN communication cable to the DSC and the LN Pump connectors
labeled "CAN."
12 Select the correct cooler type on the Discovery DSC > Cooler setting within the TRIOS Software
Options window.
13 Check the AutoLid alignment and adjust, if needed. See TRIOS software Online Help topic "Calibrating
the AutoLid" for more information.
14 Plug the instrument end of the power cord into the power entry module on the back of the LN Pump,
then plug the mains end of the power cord into a power outlet.

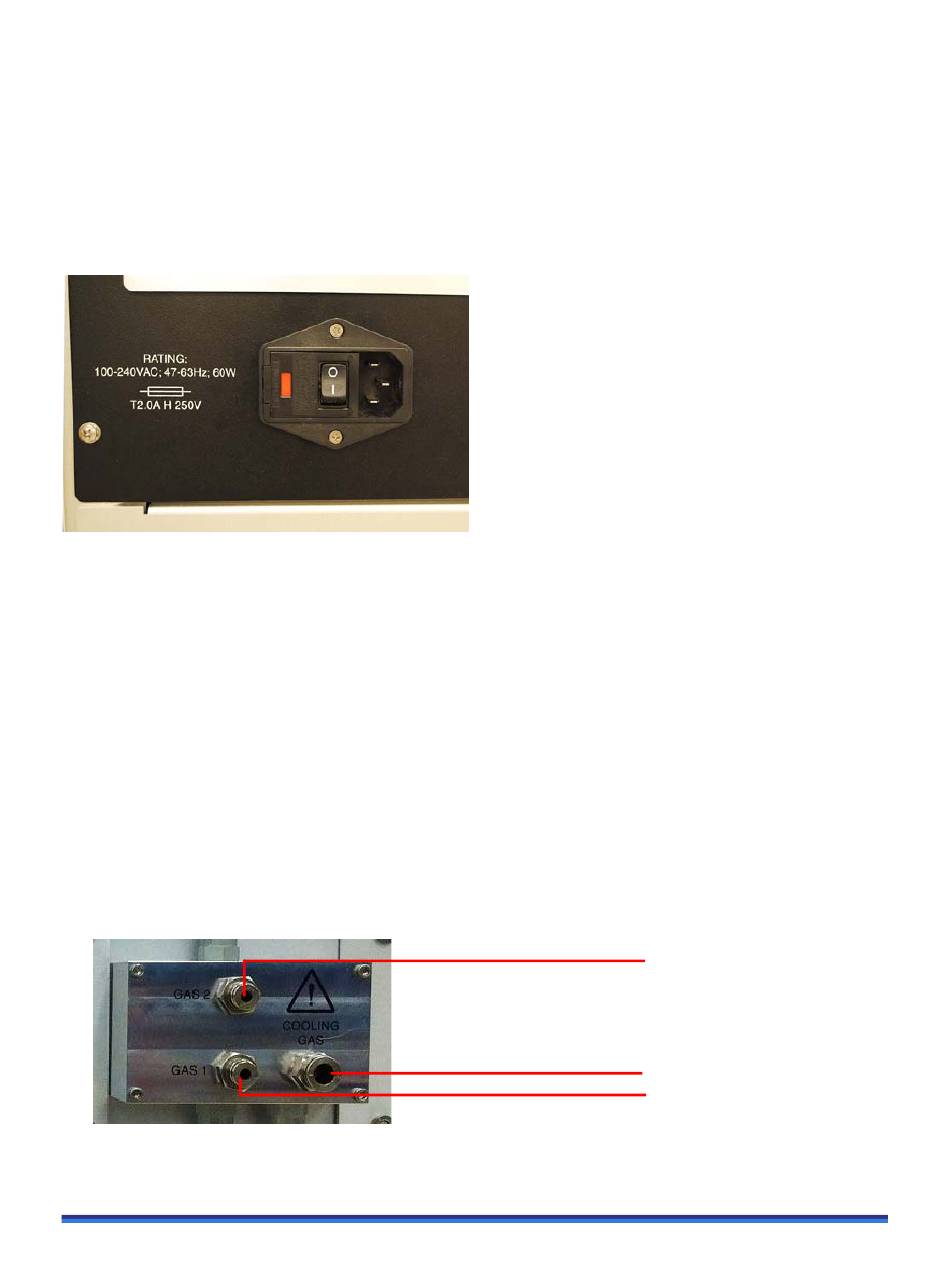

Figure 33 Power entry module.
15 Connect the gas/purge lines as directed in the next section.
Connecting Gas Lines
The GAS 1 port on the Discovery DSC provides a constant base purge and controlled cell purge; the GAS
2 port is for cell purge only and can be used with helium to purge the cell. The cooling head secondary
purge is connected through the COOLING GAS connection. By default, there is no purging of the interior
of the LN Pump cooling head; however, an option exists in TRIOS software to automatically purge the
interior of the LN Pump cooling head when the cell is open during loading/unloading of samples (while
under DSC Autosampler control) and during cell conditioning. Refer to TRIOS Online Help for more
information.
Follow the instructions below to connect the purge lines.
1 Locate the gas ports on the back of the DSC:
a Discovery DSC 25, DSC 250, DSC 2500 gas ports:
Figure 34 Gas ports on back of Discovery DSC.
Discovery DSC™ Getting Started Guide
GAS 2 port
COOLING GAS port
GAS 1 port
