8 Replace the top cover of the instrument and snap it into place.

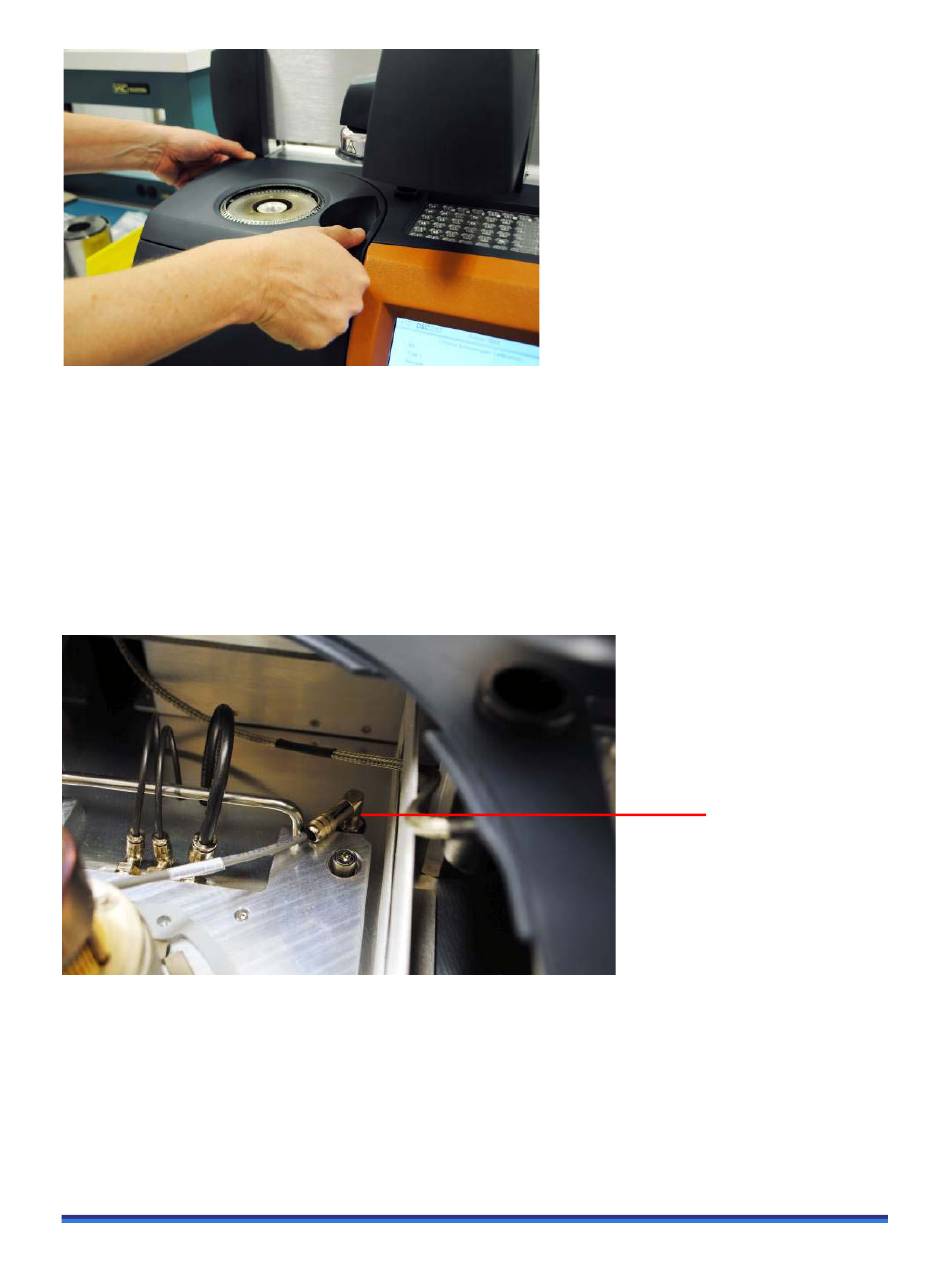

Figure 14 FACS fully installed.
9 Select the correct cooler type on the Discovery DSC Cooler setting within the TRIOS software Options
window.
10 You are now ready to use the FACS. This cooler requires a pressurized air source connected to the
Cooling Gas fitting.

Installing the Refrigerated Cooling System (RCS)

1 Connect the heater jacket harness to the instrument.
Figure 15 Connect heater jacket harness.
2 Open the lid.
3 Position the cooling head by aligning it with the pin in the instrument cell plate.
4 Secure the cooler by tightening the three captive screws. First engage all screws with three turns and
then continue to tighten each screw three turns each in sequence until the cooling head is fully secure.
Do not overtighten screws.
Discovery DSC™ Getting Started Guide
Heater jacket harness
Page 35
