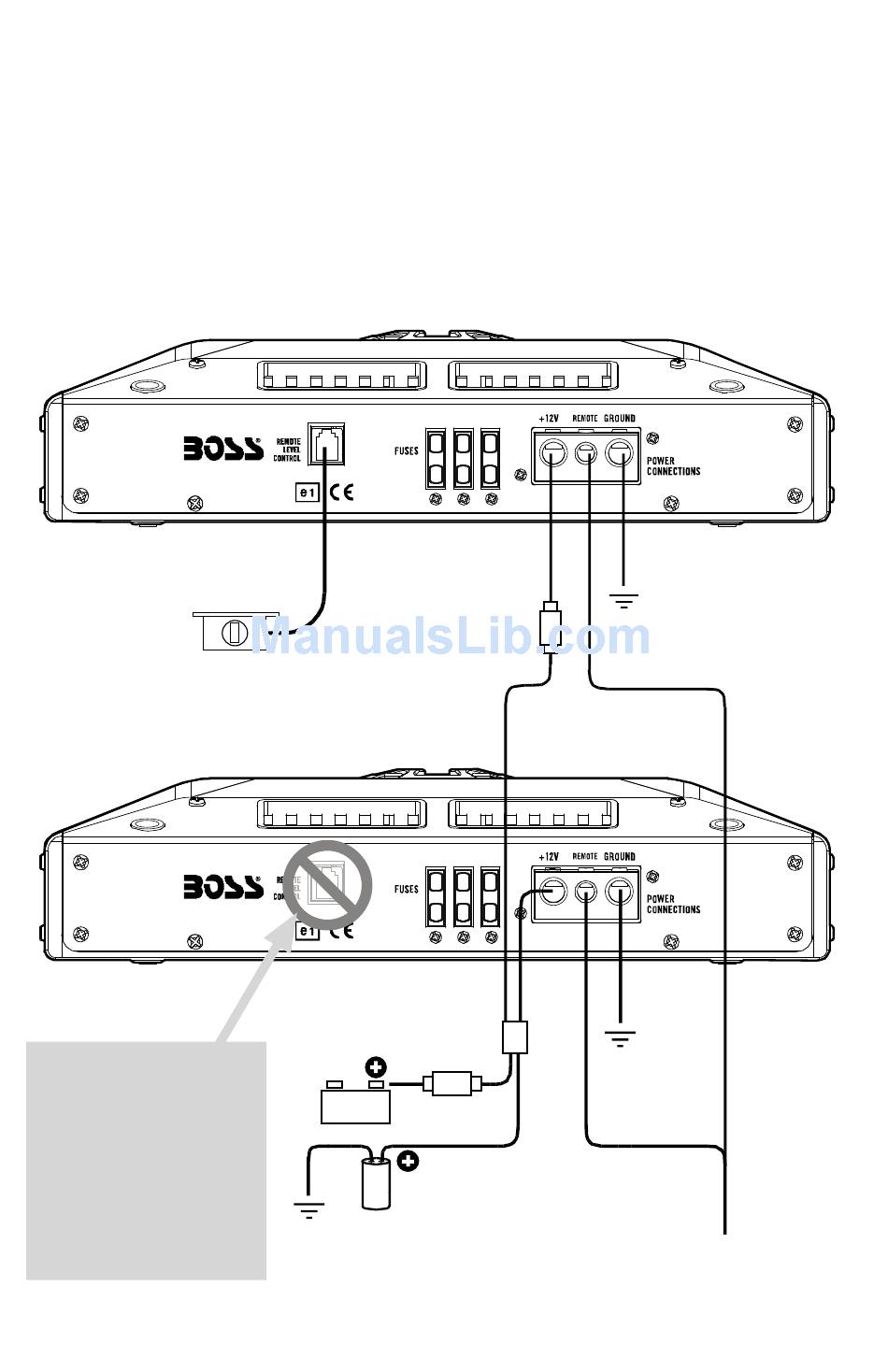

POWER AND REMOTE LEVEL CONTROLLER CONNECTIONS
(SEE PREVIOUS PAGE FOR INPUT, DATALINK AND SPEAKER CONNECTIONS)
MASTER
AMPLIFIER
Rear panel
Remote Subwoofer
Level Control
SLAVE
AMPLIFIER
Rear Panel
PLEASE NOTE:
In this MASTER
AMP/SLAVE AMP
configuration, the Slave
amp receives its audio
signal from the Master
Amp. Therefore, DO NOT
USE THE SUBWOOFER
LEVEL CONTROL ON THE
SLAVE AMP!
Distribution
Battery
FUSE
Stiffening
Capacitor
Chassis
ground
point
OL5KD • OL4KD • OL3KD Amplifier User's Manual - page 9
Chassis
ground
point
Block
Chassis
ground
point
to REMOTE TURN-ON
terminal of head unit
