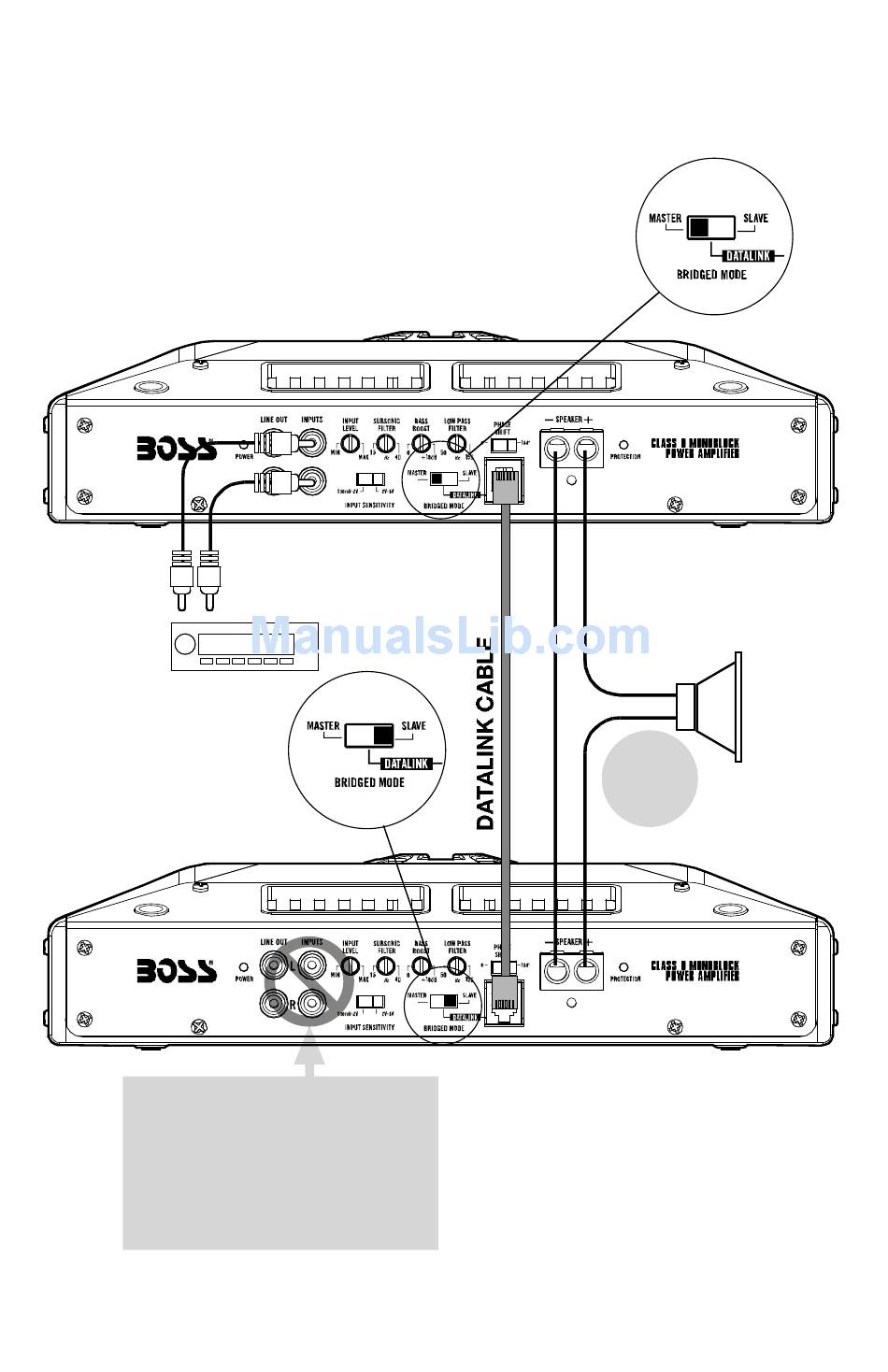

Bridging Two OL5KD, Two OL4KD or Two OL3KD Amplifiers
INPUT, DATALINK AND SPEAKER CONNECTIONS
(SEE NEXT PAGE FOR POWER AND
REMOTE LEVEL CONTROL CONNECTIONS)
MASTER
AMPLIFIER
Front panel
To Audio Outputs of
head unit or
Subwoofer outputs
of a signal processor
BRIDGED MODE
SWITCH IN SLAVE
POSITION
SLAVE
AMPLIFIER
Front Panel
PLEASE NOTE:
In this MASTER AMP/SLAVE AMP
configuration, the Slave amp
receives its audio signal from the
Master Amp. Therefore, DO NOT
USE THE INPUTS ON THE SLAVE
AMP!
OL5KD • OL4KD • OL3KD Amplifier User's Manual - page 8
BRIDGED MODE
SWITCH IN MASTER
POSITION
SUBWOOFER
Speaker
SPEAKER
IMPEDANCE
2-8 OHMS
+
