MODEL: CH1500D
SPECIFICATIONS
Maximum power output (2 Ohms): 800W x 1ch
RMS power Output: 540W x 1ch
Bridged Power Output: 1500W x 1ch
Frequency response: 20 - 300Hz
S/N Ratio: 103dB
Low Pass Crossover (Variable) 20Hz-250Hz
Power Source Voltage: 14.4V
Ground: Negative
Power consumption: 25A(with 125Wx2 rated output)
External dimensions: 300(W)x65(H)x292(D)mm
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Boss Audio Systems CHAOS CH1500D
Summary of Contents for Boss Audio Systems CHAOS CH1500D
-
Page 1: Specifications

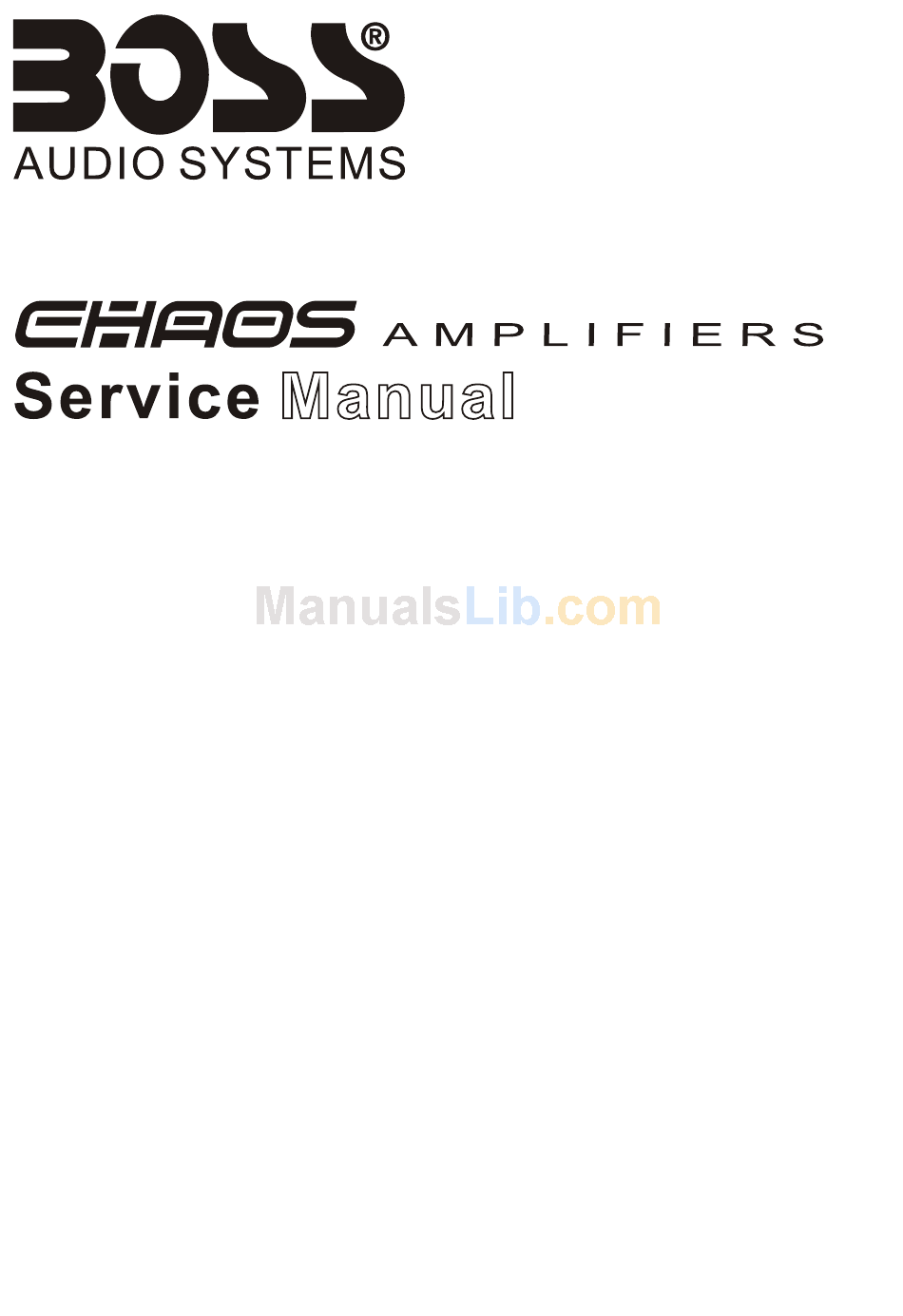

MODEL: CH1500D SPECIFICATIONS Maximum power output (2 Ohms): 800W x 1ch RMS power Output: 540W x 1ch Bridged Power Output: 1500W x 1ch Frequency response: 20 - 300Hz S/N Ratio: 103dB Low Pass Crossover (Variable) 20Hz-250Hz Power Source Voltage: 14.4V Ground: Negative Power consumption: 25A(with 125Wx2 rated output) External dimensions: 300(W)x65(H)x292(D)mm... - Page 2 To engineers in charge of repair or inspection of our products. Before repair or inspection, make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury. 1. Use specified parts. The system uses parts with special safety features against fire and voltage.
-
Page 4: Printed Circuit Board
PRINTED CIRCUIT BOARD - 1 - 4 -... -
Page 5: Circuit Diagram
CIRCUIT DIAGRAM 1 - 5 -... - Page 6 CIRCUIT DIAGRAM 2 - 6 -...
-
Page 7: Parts List
PARTS LIST - 1 - 7 -... - Page 8 PARTS LIST - 2 - 8 -...
- Page 9 PARTS LIST - 3 - 9 -...
- Page 10 PARTS LIST - 4 II-78150X0-V0003 II-79150X0-V0003 VR-BN203X1-H0A26 VR-BN503X0-V0A26 VR-BN504X0-V0A26 IC KA7815TU IC KA7915-TU VR 20KBX2 VR 50KB T12 VR 500KB T12 - 10 - VR2,4...
