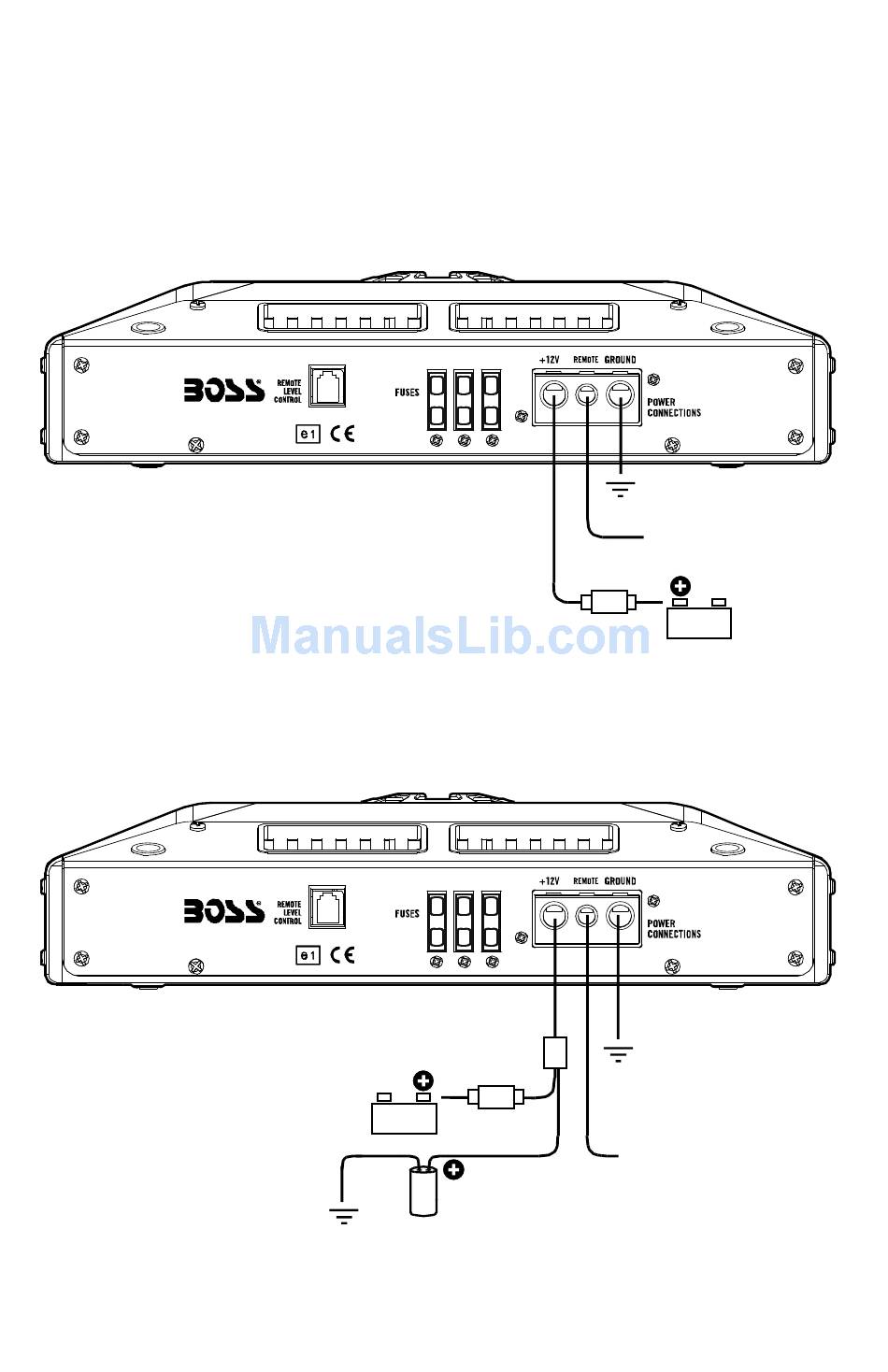

Power Connections
Without Stiffening Capacitor
With Stiffening
Capacitor
Distribution
Battery
FUSE
Stiffening
Capacitor
Chassis
ground
point
OL5KD • OL4KD • OL3KD Amplifier User's Manual - page 7
Chassis ground point
to REMOTE TURN-ON
terminal of head unit
FUSE
Chassis
ground
Block
point
to REMOTE TURN-ON
terminal of head unit
Battery
