STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:

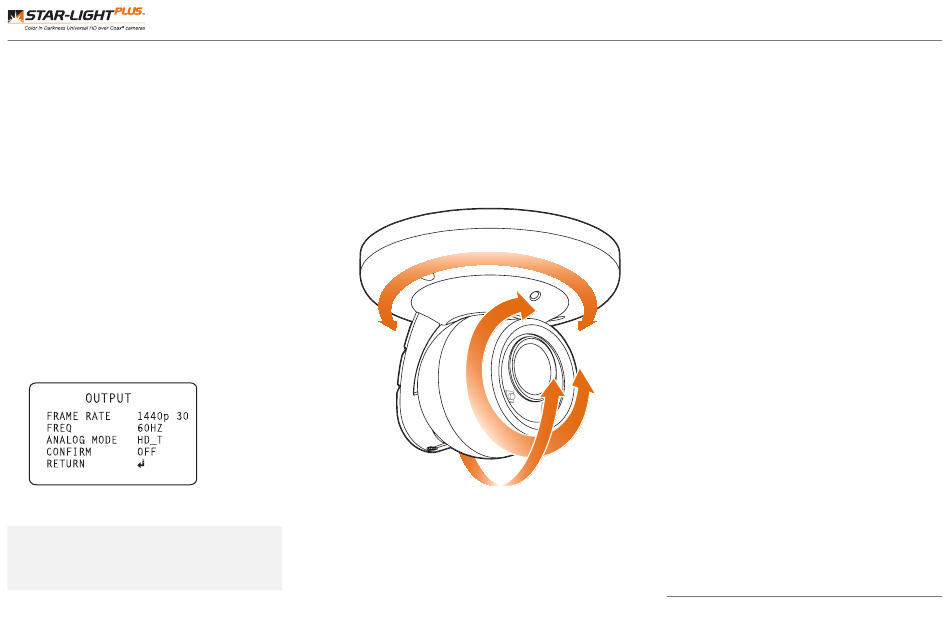

a. Enter the camera's OSD menu from a recorder supporting UTC
communication. Go to SETUP > OUTPUT > ANALOG MODE.
b. Set the camera's analog signal output from the following
options:
• HD-A: supports 5MP/1944p @ 20fps 4MP/1440p
@ 30fps, 2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-T: supports 5MP/1944p @ 20fps, 4MP/1440p @ 30fps,
2.1MP/1080p @ 30fps and 720p @ 30fps.
• HD-C: supports 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
and 720p @ 30fps.
• CVBS: supports up to 960H @ 30fps
c. Change CONFIRM to ON to save the changes.
d. Go to the EXIT menu and select SAVE&EXIT to save all changes.
The camera signal automatically.
NOTE:
To use your Star-Light Plus™ 5MP cameras at a lower
resolution, you must use a VMAX® A1 Plus™ DVR to access
the camera's menu due to the cameras being set to 5MP as
the default. A DVR that does not support 5MP resolution
may recognize the camera, but will not deliver a picture
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the
mounting surface.
2. Adjust the camera's pan, tilt and position to achieve the desired view. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
3. Once the installation is complete, tighten the pan/tilt/rotation screw until it's secure.
Panning 360°
Titling 90°
Rotation 360°
