Imported by Furniture Solutions (Aust) Pty Ltd
10-16 Daisy St,
Revesby, NSW. 2212
www.furnituresolutions.com.au
Imported by Furniture Solutions (Aust) Pty Ltd New South Wales, Australia.
For any assistance with assembly or for missing parts please contact:
Place of purchase or Furniture Solutions on below
Customer Service (Australia) Phone-1300 794 188
Email- customerservice@furnituresolutions.com.au
INSTRUCTION MANUAL

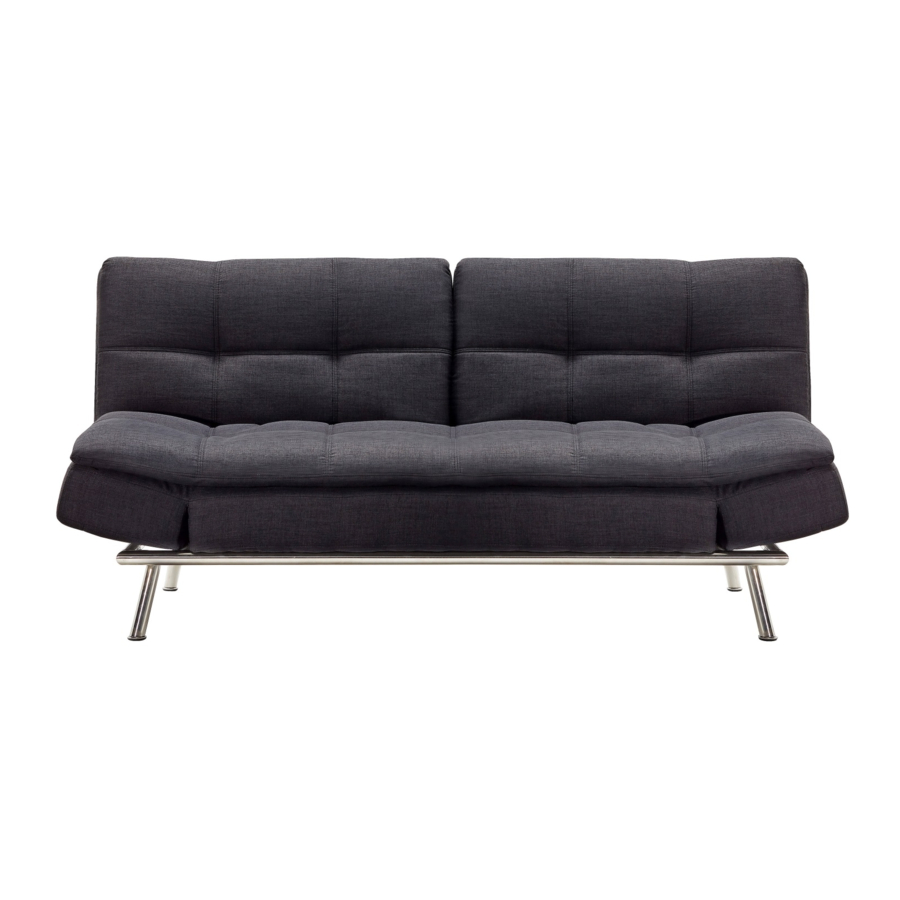

TOCOA 3 SEAT SOFA-BED
ITEM CODE: 11TOC3S
1
11TOC3S
Advertisement
Table of Contents
Related Manuals for Furniture Solutions 11TOC3S
Summary of Contents for Furniture Solutions 11TOC3S
- Page 1 10-16 Daisy St, Revesby, NSW. 2212 www.furnituresolutions.com.au Imported by Furniture Solutions (Aust) Pty Ltd New South Wales, Australia. For any assistance with assembly or for missing parts please contact: Place of purchase or Furniture Solutions on below Customer Service (Australia) Phone-1300 794 188 Email- customerservice@furnituresolutions.com.au...
-
Page 2: Pre-Assembly Preparation
Keep all hardware parts and packaging out of reach of small children. Do not over tighten the screws and bolts as this may damage the threads MINUTES PEOPLE REQUIRED ALLOW TIME Special Notice: Parts carton is located in zipper pocket in base in sofa. 11TOC3S... -
Page 3: Parts List
PARTS LIST PART CODE IMAGE STEEL LEG P230511-3L BOLT: M6 x25mm P230511-3BM625 WASHER: M6 P230511-3WM6 NUT: M6 P230511-3NM6 SPANNER: M6 P230511-3SM6 TOOL: 4MM P230511-3T4MM 11TOC3S... - Page 4 Repeat for all bols and other legs. Assembly complete. With the help on another person lift and roll complete sofa towards end with legs closest to edge of sofa until can place on feet. Before use please consult operating instruction 11TOC3S...
- Page 5 First position is flat for use as a bed. This model has added armrest function. Second position is Lounger when back is mid way up in locked position. Third position is as a Sofa full upright locked position. Please view Images of positions available and move to next page for written instruction. 11TOC3S...
- Page 6 So can not go from Sofa position to Lounger position must always go back to flat position. If for some reason you do not get a lock position when raising from flat position. Lift backrest all the way to the clack release point then back again, sometimes doing it twice has better success. 11TOC3S...
-
Page 7: Care And Maintenance
Do not use saddle soap, detergents, solvents, abrasives, unidentified cleaners, or any product containing silicon or solvent. Do not dry clean or machine wash Polished Steel; For best results use microfiber cloth or moist clean cloth. Ensure not to leave damp. 11TOC3S... -
Page 8: Safety Warnings And Advice
• Sit on arms or back when upright, this could damage internal mechanism. • Fold mechanism with linen or cushions on sofa. • Pull loose thread, cut them instead. • Jump, flop or stand on sofa. • When using as a bed sit first then reline into sleep position 11TOC3S... - Page 9 To make a warranty claim, customers can either contact the retailer where the purchase was made or Furniture Solutions on contact details below. Proof of purchase will be required before proceeding with any claim. In the case of product defects providing photos may be able to speed up processing of the claim.
