Furniture Solutions (Aust) Pty Ltd
10-16 Daisy St,
Revesby, NSW. 2212
www.furnituresolutions.com.au
Please retain these pages as they contain tips to maximize the lifetime of your furniture with a measured effort.
Properly caring for your furniture can help ensure that it looks great year after year.
Important Notice: While every effort is made to use quality materials our products are limited in design for domestic use only
& are not suitable for commercial use.

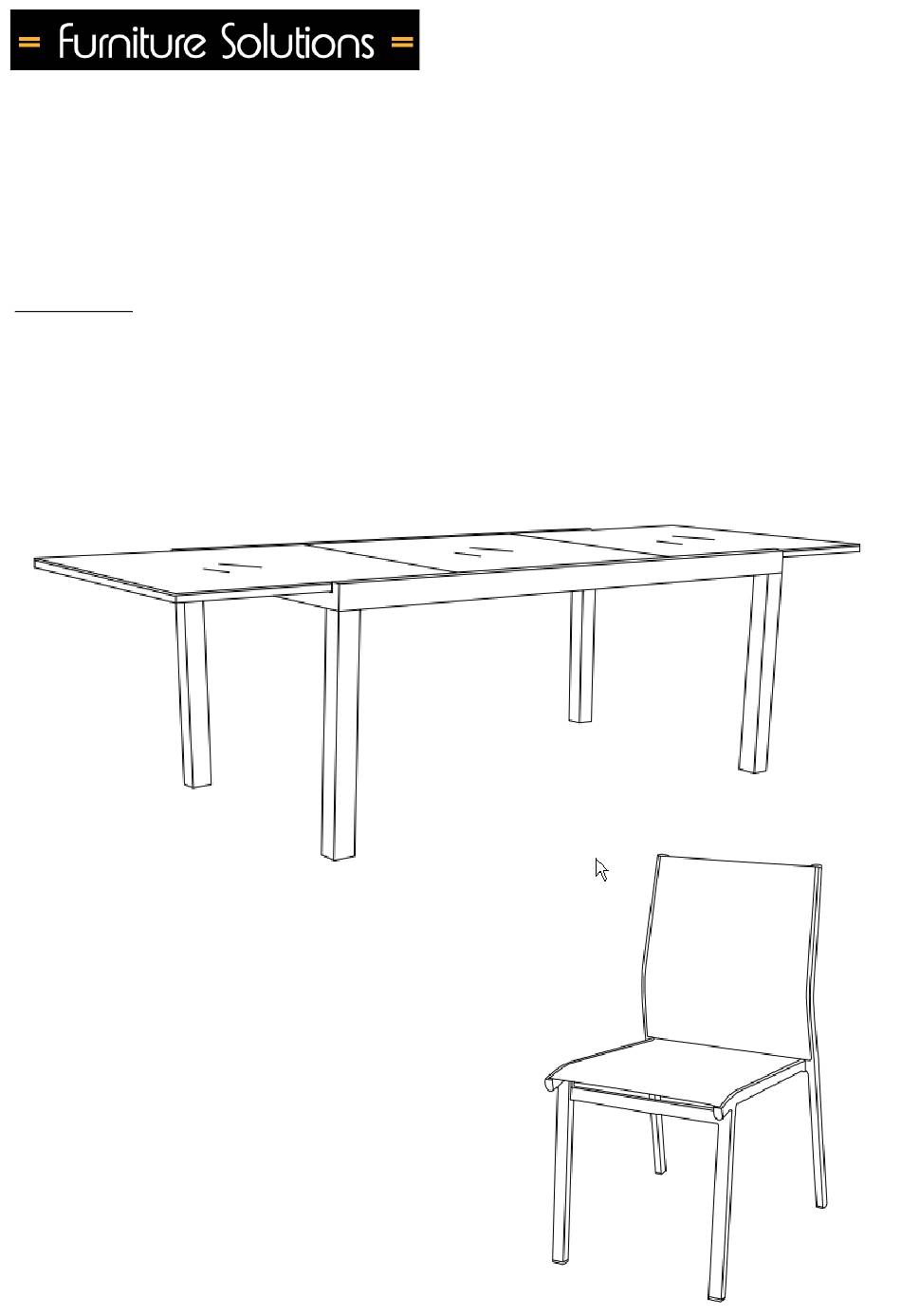

Arcadia Ext Table
Arcadia Dining Chair
(sold separately)
(sold separately)
INSTRUCTION MANUAL
PRODUCT: ARCADIA 7PCE DINING
ITEM CODE: 17ARC07WTA
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for Furniture Solutions ARCADIA 17ARC07WTA
Summary of Contents for Furniture Solutions ARCADIA 17ARC07WTA
- Page 1 INSTRUCTION MANUAL PRODUCT: ARCADIA 7PCE DINING Furniture Solutions (Aust) Pty Ltd ITEM CODE: 17ARC07WTA 10-16 Daisy St, MADE IN CHINA Revesby, NSW. 2212 www.furnituresolutions.com.au Please retain these pages as they contain tips to maximize the lifetime of your furniture with a measured effort.
- Page 2 Do not over tighten the screws and bolts as this may damage the threads MINUTES ALLOW TIME PEOPLE REQUIRED For any assistance with assembly or missing parts please contact: Place of purchase or Furniture Solutions on below Customer Service (Australia) Phone– 1300794 188 Email– customerservice@furnituresolutions.com.au...
- Page 3 EXTENSION DINING TABLE PARTS LIST A: x 1 B: x 4 Rim & Glass Long Bolt C: x 4 D: x 4 Table Leg Washer E: x 4 F: x 4 Leg Cover G: x 4 H: x 1 Leg Adjuster Tool ASSEMBLY STEP 1 –Fit Long Bolts With the help of another person carefully lay rim &...
- Page 4 ASSEMBLY STEP 2 –Fit Nuts to Long Bolts Once all long bolts & Table legs are fitted. Take nut [E] with washer [D] and by hand fit nut to long bolt end poking thru table leg. Ensure nut is seated correctly before tightening. Then take tool [H] fit over nut and tighten nut till firm.
- Page 5 Operations of extension and leg adjuster. When assembling table you may have noticed a knob with silver plunger x 2 on one side on table. If not please look under table and locate. These are used as locks when table is not extended.
- Page 6 WARNING SAFETY & ADVICE Please be aware materials used in your furniture are not impervious to neglect, acts of god, abuse, alcohol spills, improper use of chemicals such as bleach or any solvent based product, products are limited in design for residential use only and not suitable for commercial use. Please be aware that heat generated from barbeques and heaters will have an adverse effect on your furniture do not place furniture in close proximity to heat sources.
- Page 7 To make a warranty claim, customers can either contact the retailer where the purchase was made or Furniture Solutions on contact details below. Proof of purchase will be required before proceeding with any claim. In the case of product defects providing photos may be able to speed up processing of the claim.
