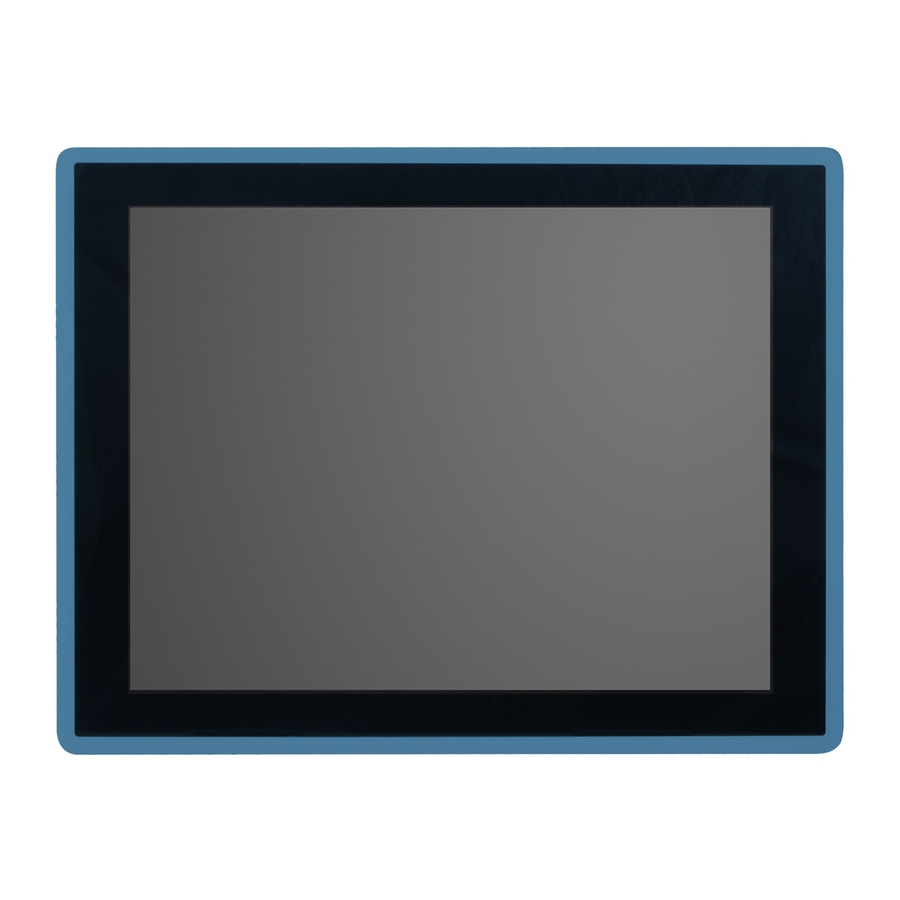

IBASE Technology OFP-151-PC User Manual

Open frame panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OFP-151-PC
OFP-2100-PC
OFP-2101-PC
Open Frame Panel PC
User's Manual
Version 1.0
(January 2021)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFP-151-PC and is the answer not in the manual?

Questions and answers

Related Manuals for IBASE Technology OFP-151-PC

Summary of Contents for IBASE Technology OFP-151-PC

  • Page 1 OFP-151-PC OFP-2100-PC OFP-2101-PC Open Frame Panel PC User’s Manual Version 1.0 (January 2021)
  • Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”).
  • Page 3 Compliance This product may cause radio interference in which case users may be required to take adequate measures. This product has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Green IBASE This product complies with the current RoHS restrictions that prohibit the use of the following substances in concentrations exceeding 0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) •...
  • Page 5 WARNING Attention during use:  Do not use this product near water.  Do not spill water or any other liquids on your device.  Do not place heavy objects on the top of the device.  Operate this device from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your distributor or local power company.
  • Page 6 Technical Support & Services 1. Visit the IBASE website at www.ibase.com.tw to find the latest information about the product. If you need any assistance from your distributor or sales representative concerning problems that you may have encountered, please prepare the following information: ...

  • Page 7: Table Of Contents

    Table of Contents  Chapter 1 General Information ..............1  Introduction to OFP Series ................ 2     Features ....................2     Packing List ....................2     Specifications .................... 3     Dimensions ....................5     I/O Side View of the OFP Series ............... 8  ...
  • Page 8 2.3.23 M.2 (B key) 3042 Slot (J14) ........... 33     2.3.24 Front Panel Connector (J13) ..........33     2.3.25 Digital I/O Connector (J18) ............. 34     2.3.26 DC Power Input Connector (J19) ........... 34     Jumper & Connector Locations (IB917) ..........35  ...
  • Page 9 Interrupt Request Lines (IRQ) (IB917) ........... 112     Watchdog Timer Configuration .............. 113     OFP Panel PC Series User Manual...

  • Page 11: Chapter 1 General Information

    Chapter 1 General Information The information provided in this chapter includes: Features  Packing List  Specifications  Dimensions ...

  • Page 12: Introduction To Ofp Series

    They are upgradeable and ideal for industrial automation and factory automation applications. These devices are powered by Intel® Pentium® QC N4200 (OFP-151-PC / OFP-2100-PC); and Intel® Core i7 7600U, Intel® Core i5 7300U and Intel® Core i3 7100U processors (OFP-2101-PC).

  • Page 13: Specifications

    General Information 1.4 Specifications Product Name OFP-151-PC OFP-2100-PC OFP-2101-PC Display & Touch Screen Display Size 15” TFT-LCD 21” TFT-LCD Max. Resolution 1024 x 768 1920 x 1080 Luminance (cd/m Contrast 1:600 1:1000 Max. Color 16.2M 16.7M View Angle (H°/V°) 160/160...
  • Page 14 System Product Name OFP-151-PC OFP-2100-PC OFP-2101-PC Intel® Intel® Core i7 7600U Intel l® Pentium® Processor Pentium® QC Intel® Core i5 7300U QC N4200 N4200 Intel® Core i3 7100U Max. 8GB, Max. 8GB, default Max. 32GB, default Memory default 4GB Thermal Design...

  • Page 15: Dimensions

    General Information OFP-151-PC OFP-2100-PC OFP-2101-PC Model No. 1.5 Dimensions Unit: mm Dimensions: 375.2 x 289.6 x 60.9 OFP-151-PC OFP Panel PC Series User Manual...
  • Page 16 OFP-2100-PC Unit: mm Dimensions: 543 x 334 x 88.2 OFP Panel PC Series User Manual...
  • Page 17 General Information OFP-2101-PC Unit: mm Dimensions: 543 x 334 x 88.2 OFP Panel PC Series User Manual...

  • Page 18: I/O Side View Of The Ofp Series

    OFP-2100-PC OFP-2101-PC NOTE: As shown in the above pictures, both the OFP-151-PC and OFP-2100-PC open frame panel PCs have the same I/O connectors in conjunction with the 3-pin terminal block for power input and a 2-pin terminal block for power button located on the same side.
  • Page 19 General Information I/O View OFP-151-PC I/O View of OFP-2100-PC Below shows the edge connectors on the IB811F-420 board that is used by the OFP-151-PC and OFP-2100-PC open frame panel PCs Name Name COM1 (RJ50) Port LAN Port DisplayPort USB 3.0 Port...
  • Page 20 I/O View of OFP-2101-PC Below shows the edge connectors on the IB917 board that is used by the OFP-2101-PC open frame panel PC Name Name COM1 RS-232/422/485 HDMI Port USB 3.0 Ports DisplayPort LAN Port IB917 OFP Panel PC Series User Manual...
  • Page 21 General Information This page is intentionally left blank. OFP Panel PC Series User Manual...

  • Page 22: Chapter 2 Hardware Configuration

    Chapter 2 Hardware Configuration The information provided in this chapter includes:  Installations  Jumpers and Connectors...

  • Page 23: Installations

    1. To remove the HDD tray, remove the two screws locking the tray as indicated by the two arrows and push the tray away from the embedded system towards the edge of the panel. OFP-151-PC OFP-2101-PC OFP Panel PC Series User Manual...
  • Page 24 2. To remove HDD from the HDD tray, remove the 4 screws that are securing the HDD to the tray. HDD Tray of OFP-151-PC HDD Tray of OFP-2101-PC OFP Panel PC Series User Manual...

  • Page 25: Memory Replacement

    OFP-151-PC OFP-2101-PC NOTE: The OFP series panel PCs has a default 4GB memory on board. While the OFP-151-PC and OFP-2100-PC support up to 8GB memory, OFP-2101-PC can accommodate up to 32GB. OFP Panel PC Series User Manual...
  • Page 26 5. Remove the memory modules by using your fingers to press down on the two-side clips that hold each module in place. OFP-151-PC / OFP-2100-PC OFP-2101-PC OFP Panel PC Series User Manual...

  • Page 27: Mini-Pcie Installation

    Driver Installation 2.1.3 Mini-PCIe Installation To replace or install a mini-PCIe card, perform the following steps after removing the rear cover. 1. Locate the mini-PCIe slot, align the key of the card to the interface, and insert the card slantwise. 2.

  • Page 28: Front Bezel Design Suggestion

    1. The recommended thickness of front bezel and double sided tape is as follows. 2. Fixed OFP system and front bezel from rear side to front side using M3 screws. OFP-151-PC (M3 Screw *16PCS) OFP-2100/2101-PC (M3 Screw *19PCS) OFP Panel PC Series User Manual...
  • Page 29 1. The recommended thickness of front bezel and double sided tape is as follows. 2. Fixed OFP system and front bezel from rear side to front side or front side to rear side using M3 screws. OFP-151-PC (M3 Screw *8PCS) OFP-2100/2101-PC (M3 Screw *12PCS) OFP Panel PC Series User Manual...

  • Page 30: Setting The Jumpers

    2.2 Setting the Jumpers Configure the jumpers with the settings required to be able to use the features needed for your application. Contact your supplier if you have doubts about the best configuration for your use. Jumpers are short-length conductors consisting of several metal pins with a non-conductive base mounted on the circuit board.

  • Page 31: Jumper & Connector Locations (Ib811F)

    Driver Installation 2.3 Jumper & Connector Locations (IB811F) Motherboard: IB811F 10 9 9 10 9 10 BAT1 Intel Atom™ QC/DC ® Intel Pentium ® ® Intel ® Celeron ® Board diagram of IB811F OFP Panel PC Series User Manual...

  • Page 32: Lvds Panel Brightness Selection (Jp1)

    2.3.1 LVDS Panel Brightness Selection (JP1) Function Pin closed Illustration 3.3V (default) 2.3.2 LVDS Panel Power Selection (JP2) Function Pin closed Illustration 3.3V (default) OFP Panel PC Series User Manual...

  • Page 33: Edp Panel Power Selection (Jp3)

    Driver Installation 2.3.3 eDP Panel Power Selection (JP3) Function Pin closed Illustration 3.3V (default) OFP Panel PC Series User Manual...

  • Page 34: Edp / Lvds Panel Selection (Jp4)

    2.3.4 eDP / LVDS Panel Selection (JP4) Function Pin closed Illustration LVDS (default) 2.3.5 ATX / AT Power Selection (JP5) Function Pin closed Illustration (default) OFP Panel PC Series User Manual...

  • Page 35: Cmos Data Clearance (Jp6)

    Driver Installation 2.3.6 CMOS Data Clearance (JP6) Function Pin closed Illustration Normal (default) Clear CMOS 2.3.7 ME Register Clearance (JP7) Function Pin closed Illustration Normal (default) Clear ME OFP Panel PC Series User Manual...

  • Page 36: Sata Iii Connector (Cn2, Cn3)

    2.3.8 SATA III Connector (CN2, CN3) CN2: shared with M.2 B-key CN3: shared with mSATA 2.3.9 LAN Ports (CN4) 2.3.10 USB 3.0 Ports (CN5, CN6) OFP Panel PC Series User Manual...

  • Page 37: Console Com1 (Rj50) Rs-232/422/485 Port (Cn7)

    Driver Installation 2.3.11 Console COM1 (RJ50) RS-232/422/485 Port (CN7) COM1 port is jumper-less and configurable in BIOS. Assignment Assignment DSR, Data set ready DCD, Data carrier detect Ground DTR, Data terminal ready Ground CTS, Clear to send TX, Transmit RTS, Request to send RX, Receive RI, Ring Indicator Assignment...

  • Page 38: Displayport (Cn8)

    2.3.12 DisplayPort (CN8) 2.3.13 HDMI Port (CN9) 2.3.14 LCD Backlight Connector (J2) Assignment Assignment +12V Brightness Control Backlight Enable Ground OFP Panel PC Series User Manual...

  • Page 39: Lvds Connector (J1, J3)

    Driver Installation 2.3.15 LVDS Connector (J1, J3) J3: 1 channel J1: 2 channel Pin Assignment Pin Assignment TX0P TX0N Ground Ground TX1P TX1N Ground Ground TX2P TX2N Ground Ground CLKP CLKN Ground Ground TX3P TX3N OFP Panel PC Series User Manual...

  • Page 40: Audio Connector (J4)

    2.3.16 Audio Connector (J4) Pin Assignment Pin Assignment Lineout_L Lineout_R JD_FRONT Ground LINEIN_L Linein_R JD_LINEIN Ground MIC_L MIC-R JD_MIC1 Ground 2.3.17 DDR3L SO-DIMM Slot (J5, J8) OFP Panel PC Series User Manual...

  • Page 41: Usb 2.0 Connector (J6)

    Driver Installation 2.3.18 USB 2.0 Connector (J6) Pin Assignment Pin Assignment Ground Ground 2.3.19 Amplifier Connector (J7) Pin Assignment Pin Assignment OUTL+ OUTR- OUTL- OUTR+ OFP Panel PC Series User Manual...

  • Page 42: Sata Hdd Power Connector (J10)

    2.3.20 SATA HDD Power Connector (J10) Pin Assignment Pin Assignment Ground Ground +12V 2.3.21 Mini PCIe / mSATA Slot (J11) 2.3.22 COM2 / COM3 / COM4 RS-232 Port (J16, J17, J12) Assignment Assignment DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready Ground...

  • Page 43: B Key) 3042 Slot (J14)

    Driver Installation RTS, Request to send CTS, Clear to send RI, Ring indicator Not Used 2.3.23 M.2 (B key) 3042 Slot (J14) 2.3.24 Front Panel Connector (J13) Pin Assignment Pin Assignment Ground PWR_BTN 3.3V HDD Active Ground Reset Ground J13 is utilized for system indicators to provide light indication of the computer activities and switches to change the computer status.

  • Page 44: Digital I/O Connector (J18)

    2.3.25 Digital I/O Connector (J18) Pin Assignment Pin Assignment Ground OUT3 OUT1 OUT2 OUT0 2.3.26 DC Power Input Connector (J19) Assignment +9V ~ +36V Ground OFP Panel PC Series User Manual...

  • Page 45: Jumper & Connector Locations (Ib917)

    Driver Installation 2.4 Jumper & Connector Locations (IB917) Motherboard: IB917 J11, J12, J15, J14, CPU_FAN1 1 2 1 2 Intel Gen. Core™ / ® Celeron ® Board diagram of IB917 OFP Panel PC Series User Manual...

  • Page 46: Cmos Data Clearance (Jp2)

    2.4.1 CMOS Data Clearance (JP2) Function Pin closed Illustration Normal (default) Clear CMOS 2.4.2 ME Register Clearance (JP3) Function Pin closed Illustration Normal (default) Clear ME OFP Panel PC Series User Manual...

  • Page 47: Lvds Panel Power / Brightness Selections (Jp4 / Jp5)

    Driver Installation 2.4.3 LVDS Panel Power / Brightness Selections (JP4 / JP5) JP4: JP5: Jumper Function Pin closed Illustration 3.3V (default) 3.3V (default) Open Close OFP Panel PC Series User Manual...

  • Page 48: Com1 Rs-232/422/485 Port (Cn9)

    2.4.4 COM1 RS-232/422/485 Port (CN9) COM1 port is jumper-less and configurable in BIOS. Assignment Assignment DCD, Data carrier detect DSR, Data set ready RXD, Receive data RTS, Request to send TXD, Transmit data CTS, Clear to send DTR, Data terminal ready RI, Ring indicator Ground Assignment...

  • Page 49: Audio Connector (J1)

    Driver Installation 2.4.5 Audio Connector (J1) Pin Assignment Pin Assignment Lineout_L Lineout_R JD_FRONT Ground LINEIN_L Linein_R JD_LINEIN Ground MIC_L MIC-R JD_MIC1 Ground 2.4.6 SATA HDD Power Connector (J5) Pin Assignment Pin Assignment Ground Ground +12V OFP Panel PC Series User Manual...

  • Page 50: Front Panel Connector (J6)

    2.4.7 Front Panel Connector (J6) Pin Assignment Pin Assignment Ground PWR_BTN 3.3V HDD Active Ground Reset Ground J6 is utilized for system indicators to provide light indication of the computer activities and switches to change the computer status. It provides interfaces for the following functions.

  • Page 51: Usb 2.0 Connector (J7)

    Driver Installation 2.4.8 USB 2.0 Connector (J7) Pin Assignment Pin Assignment Ground Ground 2.4.9 Battery Connector (J10) Pin Assignment Battery+ Ground OFP Panel PC Series User Manual...

  • Page 52: Com2, Com3, Com4 Rs-232 Ports (J15, J12, J11)

    2.4.10 COM2, COM3, COM4 RS-232 Ports (J15, J12, J11) J15 (COM2): J12 (COM3): J11 (COM4): Assignment Assignment DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready Ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Not Used...

  • Page 53: Digital I/O Connector (J16)

    Driver Installation 2.4.12 Digital I/O Connector (J16) Pin Assignment Pin Assignment Ground OUT3 OUT1 OUT2 OUT0 2.4.13 LCD Backlight Connector (J19) Assignment Assignment +12V Brightness Control Backlight Enable Ground OFP Panel PC Series User Manual...

  • Page 54: Lvds Connector (J17, J18)

    2.4.14 LVDS Connector (J17, J18) J18: 2 channel J17: 1 channel Pin Assignment Pin Assignment TX0P TX0N Ground Ground TX1P TX1N Ground Ground TX2P TX2N Ground Ground CLKP CLKN Ground Ground TX3P TX3N Power Power 2.4.15 CPU Fan Connector (CPU_FAN1) Pin Assignment Pin Assignment Ground CPU Fan In...

  • Page 55: Chapter 3 Driver Installations

    Chapter 3 Driver Installations The driver installation information in this chapter is for the IB811F and IB917 boards.
  • Page 56 ® 3.1 Intel Chipset Software Installation Utility (IB811F) ® The Intel Chipset drivers should be installed first before the software drivers to install INF files for Plug & Play function for Intel chipset components. Follow the instructions below to complete the installation. 1.
  • Page 57 Driver Installation 3.2 VGA Driver Installation (IB811F) 1. Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. 2. Click Intel(R) Apollolake Graphics Driver. 3. When the Welcome screen appears, click Next to continue. 4.
  • Page 58 3.3 HD Audio Driver Installation (IB811F) 1. Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. 2. Click Realtek High Definition Audio Driver. 3. On the Welcome screen of the InstallShield Wizard, click Next for installation.
  • Page 59 Driver Installation ® 3.4 Intel Trusted Execution Engine Drivers (IB811F) 1. Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. 2. Click Intel(R) TXE Drivers. 3. When the Welcome screen appears, click Next. 4.
  • Page 60 ® 3.5 Intel Serial IO Drivers (IB811F) 1. Click Intel on the left pane and then Intel(R) Apollolake Chipset Drivers on the right pane. 2. Click Intel(R) Serial IO Drivers. 3. When the Welcome screen to the InstallShield Wizard appears, click Next. 4.
  • Page 61 Driver Installation 3.6 LAN Driver Installation (IB811F) 1. Click LAN Card on the left pane and then Intel LAN Controller Drivers on the right pane. 2. Click Intel(R) I21x Gigabit Network Drivers.. OFP Panel PC Series User Manual...
  • Page 62 3. When the Welcome screen appears, click Next. 4. Accept the license agreement and click Next. 5. On the Setup Options screen, click the checkbox to select the desired driver(s) for installation. Then click Next to continue. 6. The wizard is ready for installation. Click Install. 7.
  • Page 63 Driver Installation ® 3.7 Intel Chipset Software Installation Utility (IB917) ® The Intel Chipset drivers should be installed first before the software drivers to install INF files for Plug & Play function for Intel chipset components. Follow the instructions below to complete the installation. 1.
  • Page 64 3.8 VGA Driver Installation (IB917) 1. Insert the disk enclosed in the package. Click Intel on the left pane and then Intel(R) Kabylake-U Chipset Drivers on the right pane. 2. Click Intel(R) HD Graphics Driver. OFP Panel PC Series User Manual...
  • Page 65 Driver Installation 3. When the Welcome screen appears, click Next to continue. 4. Click Yes to accept the license agreement and click Next until the installation starts. 5. On the Readme File Information screen, click Next until the installation starts. 6.
  • Page 66 3.9 HD Audio Driver Installation (IB917) 1. Insert the disk enclosed in the package. Click Intel on the left pane and then Intel(R) Kabylake-U Chipset Drivers on the right pane. 2. Click Realtek High Definition Audio Driver. OFP Panel PC Series User Manual...
  • Page 67 Driver Installation 3. On the Welcome screen of the InstallShield Wizard, click Next. 4. Click Next until the installation starts. 5. After the installation, restart the computer for changes to take effect. OFP Panel PC Series User Manual...
  • Page 68 3.10 LAN Driver Installation (IB917) 1. Insert the disk enclosed in the package. Click Intel on the left pane and then Intel(R) Kabylake-U Chipset Drivers on the right pane. 2. Click Intel(R) PRO LAN Network Drivers.. OFP Panel PC Series User Manual...
  • Page 69 Driver Installation 3. When the Welcome screen appears, click Next. 4. Accept the license agreement and click Next. 5. On the Setup Options screen, click the checkbox to select the desired driver(s) for installation. Then click Next to continue. 6. The wizard is ready for installation. Click Install. 7.
  • Page 70 ® 3.11 Intel Management Engine Drivers Installation (IB917) 1. Insert the disk enclosed in the package. Click Intel on the left pane and then Intel(R) Kabylake-U Chipset Drivers on the right pane. 2. Click Intel(R) ME 11.x Drivers. OFP Panel PC Series User Manual...
  • Page 71 Driver Installation 3. When the Welcome screen appears, click Next. 4. Accept the license agreement and click Next until the installation starts. 5. After the installation, restart the computer for changes to take effect. OFP Panel PC Series User Manual...

  • Page 72: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the IB811F and IB917 boards installed in the OFP-151-PC system.

  • Page 73: Introduction

    BIOS Setup for UMT-7211 4.1 Introduction The BIOS (Basic Input/Output System) installed in the ROM of your computer system supports Intel ® processors. The BIOS provides critical low-level support for standard devices such as disk drives, serial ports and parallel ports.

  • Page 74: Main Settings (Ib818F)

    4.3 Main Settings (IB818F) BIOS Setting Description System Date Sets the date. Use the <Tab> key to switch between the data elements. System Time Set the time. Use the <Tab> key to switch between the data elements. 4.4 Advanced Settings (IB818F) This section allows you to configure, improve your system and allows you to set up some system features according to your preference.
  • Page 75 BIOS Setup for UMT-7211 4.4.1 Trusted Computing BIOS Setting Description Security Device Enables / Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and Support INT1A interface will not be available. SHA-1 PCR Bank Enable or Disable SHA1 PCR Bank SHA256 PCR Bank Enable or Disable SHA256 PCR Bank...
  • Page 76 4.4.2 ACPI Computing BIOS Setting Description Enable Enables / Disables the system ability to hibernate Hibernation (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep Selects an ACPI sleep state (Suspend Disabled or S3) State where the system will enter when the Suspend button is pressed.
  • Page 77 BIOS Setup for UMT-7211 4.4.4 Fintek Super IO Configuration BIOS Setting Description Standby Power Enables / Disables to provide the standby power for on S5 devices. Options: All Enable / Enable Ethernet for WOL / All Disable Serial Ports Sets parameters of serial ports. Configuration Enables / Disables the serial port and select an optimal setting for the Super IO device.
  • Page 78 BIOS Setting Description Serial Port Enables / Disables the serial port. Change Settings Selects an optimal settings for Super IO device. Options: Auto  IO = 3F8h; IRQ = 4  IO = 3F8h; IRQ = 3, 4, 5, 6, 7, 9, 10, 11, 12 ...
  • Page 79 BIOS Setup for UMT-7211 4.4.5 Fintek Super IO Hardware Monitor BIOS Setting Description Temperatures / These fields are the parameters of the hardware Voltages monitoring function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.
  • Page 80 4.4.7 CPU Configuration BIOS Setting Description Socket 0 CPU Displays the socket specific CPU information. Information CPU Power Allows you to enable / disable Turbo Mode. Management Active Enables / Disables the cores in the processor package. Processor Cores Monitor Mwait Enables / Disables Monitor Mwait.
  • Page 81 BIOS Setup for UMT-7211 4.4.9 Network Stack Configuration BIOS Setting Description Network Stack Enables / Disables UEFI Network Stack. IPv4 PXE Enables / Disables IPv4 PXE Boot Support. Support If disabled, Ipv4 PXE boot option will not be created. IPv4 HTTP Enables / Disables IPv4 HTTP Boot Support.
  • Page 82 4.4.10 CSM Configuration BIOS Setting Description CSM Support Enables / Disables CSM support. GateA20 Active Upon Request disables GA20 when using BIOS  services. Always cannot disable GA20, but is useful when any  RT code is executed above 1 MB. INT19 Trap Sets how BIOS reacts on INT19 trap by Option ROM.
  • Page 83 BIOS Setup for UMT-7211 4.4.11 USB Configuration BIOS Setting Description Legacy USB Enabled enables Legacy USB support.  Support Auto disables legacy support if there is no USB  device connected. Disabled keeps USB devices available only for EFI  applications.

  • Page 84: Chipset Settings (Ib818F)

    4.5 Chipset Settings (IB818F) 4.5.1 South Cluster Configuration 4.5.1.1 HD Audio Configuration 4.5.1.2 PCI Express Configuration BIOS Setting Description PCI Express Accesses the control of the PCI Express Root Port. Root Port 1 ~ 6 OFP Panel PC Series User Manual...
  • Page 85 BIOS Setup for UMT-7211 BIOS Setting Description PCI Express Enables/ Disables the PCIe root port. Root Port Auto: To disable unused root port automatically for the most optimum power savings. ASPM Sets the PCIe active state power management. Options: Disable / L0s / L1 / L0SL1 / Auto L1 Substates Sets PCIe L1 substates.
  • Page 86 4.5.1.4 USB Configuration BIOS Setting Description XHCI Pre-Boot Enables / Disables the support for XHCI Pre-Boot Driver. Driver XHCI Mode Enables / Disables XHCI mode. If disabled, XHCI controller would be disabled, and none of the USB devices are detectable or usable when systen is booted up in OS.

  • Page 87: Security Settings (Ib818F)

    BIOS Setup for UMT-7211 4.6 Security Settings (IB818F) BIOS Setting Description Setup Administrator Sets an administrator password for the setup utility. Password User Password Sets a user password. Secure Boot Customizable Secure Boot OFP Panel PC Series User Manual...
  • Page 88 4.6.1 Secure Boot BIOS Setting Description Secure Boot Secure activated when: secure boot is enable, Platform Key(PK) is enrolled, system mode is User/Deployed, and CSM is disabled. Secure Boot Secure Boot Mode – Custom & Standard, Set UEFI Customization Secure Boot Mode to STANDARD mode or CUSTOM mode, this change takes effect after save.
  • Page 89 BIOS Setup for UMT-7211 4.6.2 Key Management BIOS Setting Description Factory Key Provision factory default keys on next re-boot only when System in Setup Mode. Provision Options available: Enabled/Disabled. Default setting is Disabled. Restore Factory Force System to User Mode. Configure NVRAM to contain OEM-defined factory default Secure Boot keys.

  • Page 90: Boot Settings (Ib818F)

    4.7 Boot Settings (IB818F) BIOS Setting Description Setup Prompt Number of seconds to wait for setup activation key. Timeout 65535 (0xFFFF) means indefinite waiting. Bootup Selects the keyboard NumLock state. NumLock State Quiet Boot Enables / Disables Quiet Boot option. New Boot Controls the placement of newly detected UEFI boot Option Policy...

  • Page 91: Save & Exit Settings (Ib818F)

    BIOS Setup for UMT-7211 4.8 Save & Exit Settings (IB818F) BIOS Setting Description Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exits system setup without saving any changes. Exit Save Changes and Resets the system after saving the changes. Reset Discard Changes and Resets system setup without saving any...

  • Page 92: Main Settings (Ib917)

    4.9 Main Settings (IB917) BIOS Setting Description System Date Sets the date. Use the <Tab> key to switch between the data elements. System Time Set the time. Use the <Tab> key to switch between the data elements. OFP Panel PC Series User Manual...

  • Page 93: Advanced Settings (Ib917)

    BIOS Setup for UMT-7211 4.10 Advanced Settings (IB917) This section allows you to configure, improve your system and allows you to set up some system features according to your preference. 4.10.1 CPU Configuration Displays the type, ID and speed of the CPU. Note: The CPU information displayed varies upon your actual CPU type.
  • Page 94 4.10.2 Power & Performance BIOS Setting Description Intel(R) Allows more than two frequency ranges to be SpeedStep(tm) supported. Intel(R) Speed Enables / Disables Intel(R) Speed Shift Technology Shift Technology support. Enabling will expose the CPPC v2 interface to allow for hardware controlled P-states. OFP Panel PC Series User Manual...
  • Page 95 BIOS Setup for UMT-7211 4.10.3 PCH-FW Configuration BIOS Setting Description ME State When disabled ME will be put into ME Temporarily Disabled Mode. Manageability Enables / Disables Intel(R) manageability features in Features State FW. To disable support platform must be in an unprovisioned state first.
  • Page 96 4.10.3.1 AMT Configuration BIOS Setting Description ASF Support Enables / Disables Alert Standard Format support. USB Provisioning of Enables / Disables of AMT USB provisioning. CIRA Configuration Configures remote assistance process parameters. ASF Configuration Configures Alert Standard Format parameters. Secure Erase Secures erase configuration menu.
  • Page 97 BIOS Setup for UMT-7211 CIRA Configuration BIOS Setting Description Activate Remote Trigger CIRA boot. Note: Network Access must Assistance Process be activated first from MEBx Setup. ASF Configuration BIOS Setting Description PET Progress Enables / Disables PET events progress to receive PET events.
  • Page 98 Secure Erase Configuration: BIOS Setting Description Secure Erase Mode Changes Secure Erase module behavior. Simulated performs SE flow without erasing SSD.  Real erases SSD.  Force Secure Erase Force Secure Erase on next boot. OEM Flags Settings: BIOS Setting Description MEBx hotkey OEMFlag Bit 1: enables automatic MEBx hotkey...
  • Page 99 BIOS Setup for UMT-7211 MEBx Resolution Settings: BIOS Setting Description Non-UI Mode Sets resolution fro non-UI text mode. Resloution UI Mode Resolution Sets resolution for UI text mode. Graphics Mode Sets resolution for graphics mode. Resolution OFP Panel PC Series User Manual...
  • Page 100 4.10.3.2 Firmware Update Configuration BIOS Setting Description ME FW Image Enables / Disables ME FW Image Re-Flash function. RE-Flash 4.10.3.3 PTT Configuration BIOS Setting Description TPM Device Selects TPM device: PTT or dTPM. Selection PTT enables PTT in SkuMgr.  dTPM 1.2 disables PTT in SkuMgr warning.
  • Page 101 BIOS Setup for UMT-7211 4.10.3.4 ME Debug Configuration BIOS Setting Description Enables / Disables HECI sending/receiving timeouts. HECI Timeouts Forces the DID initialization status value. Force ME DID Init Status Disables CPU replacement polling loop. CPU Replaced Polling Disable Enables / Disables ME DID message (disable will prevent ME DID the DID message from being sent).
  • Page 102 4.10.4 Trusted Computing BIOS Setting Description Security Device Enables / Disables BIOS support for security device. OS will Support not show security device. TCG EFI protocol and INTIA interface will not be available. SHA-1 PCR Enables / Disables SHA-1 PCR Bank. Bank SHA256 PCR Enables / Disables SHA256 PCR Bank.
  • Page 103 BIOS Setup for UMT-7211 4.10.5 ACPI Settings BIOS Setting Description Enable Enables / Disables the system ability to hibernate (OS/S4 Hibernation Sleep State). This option may be not effective with some ACPI Sleep Selects an ACPI sleep state (Suspend Disabled or S3) State where the system will enter when the Suspend button is pressed.
  • Page 104 4.10.6 LVDS (eDP/DP) Configuration BIOS Setting Description LVDS (eDP/DP) Enables / Disables LVDS (eDP/DP). Support Panel Color Selects the panel collor depth. Depth Options: 18 bit, 24 Bit (VESA), 24 bit (JEIDA) LVDS Channel Chooses the LVDS as single or dual channel. Type LCD Panel Type Selects LCD panel used by Intel Graphics Device by selecting the appropriate setup item.
  • Page 105 BIOS Setup for UMT-7211 4.10.7 iSMART Controller BIOS Setting Description Power-On after Enables / Disables the system to be turned on Power failure automatically after a power failure. Temperature Generate the reset signal when system hands up on Guardian POST. Schedule Slots Sets up the hour / minute / day for the power-on schedule for the system.
  • Page 106 4.10.8 F81846 Super IO Configuration BIOS Setting Description Serial Ports Sets parameters of serial ports. Configuration Enables / Disables the serial port and select an optimal setting for the Super IO device. OFP Panel PC Series User Manual...
  • Page 107 BIOS Setup for UMT-7211 4.10.8.1 Serial Port 1 Configuration BIOS Setting Description Serial Port Enables / Disables the serial port. Change Settings Selects an optimal settings for Super I/O device. Options: Auto  IO = 3F8h; IRQ = 4  IO = 3F8h;...
  • Page 108 4.10.9 Hardware Monitor BIOS Setting Description CPU Fan smart Enables / Disables smart fan control. fan control Temperatures / These fields are the parameters of the hardware monitoring Voltages function feature of the motherboard. The values are read-only values as monitored by the system and show the PC health status.
  • Page 109 BIOS Setup for UMT-7211 4.10.10 CSM Configuration BIOS Setting Description Network Controls the execution of UEFI and Legacy PXE OpROM. OFP Panel PC Series User Manual...
  • Page 110 4.10.11 USB Configuration BIOS Setting Description Legacy USB Enabled enables Legacy USB support.  Support Auto disables legacy support if there is no USB device  connected. Disabled keeps USB devices available only for EFI  applications. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support.

  • Page 111: Chipset Settings (Ib917)

    BIOS Setup for UMT-7211 4.11 Chipset Settings (IB917) 4.11.1 PCH-IO Configuration BIOS Setting Description SATA and RST Configuration SATA device options and settings PCH LAN Controller Enables / Disables onboard NIC. Wake on LAN Enable Enables / Disables integrated LAN to wake the system.
  • Page 112 4.11.1.1 SATA and RST Configuration: BIOS Setting Description SATA Controller(s) Enables / Disables the Serial ATA. SATA Mode Selection Selects IDE or AHCI Mode. Serial ATA Port 0~2 Enables / Disables Serial Port 0 ~ 2. SATA Ports Hot Plug Enables / Disables SATA Ports HotPlug.

  • Page 113: Security Settings (Ib917)

    BIOS Setup for UMT-7211 4.12 Security Settings (IB917) BIOS Setting Description Setup Administrator Sets an administrator password for the setup utility. Password User Password Sets a user password. OFP Panel PC Series User Manual...

  • Page 114: Boot Settings (Ib917)

    4.13 Boot Settings (IB917) BIOS Setting Description Setup Prompt Number of seconds to wait for setup activation key. Timeout 65535 (0xFFFF) means indefinite waiting. Bootup Selects the keyboard NumLock state. NumLock State Quiet Boot Enables / Disables Quiet Boot option. Fast Boot Enables / Disables boot with initialization of a minimal set of devices required to launch the active boot option.

  • Page 115: Save & Exit Settings (Ib917)

    BIOS Setup for UMT-7211 4.14 Save & Exit Settings (IB917) BIOS Setting Description Save Changes and Exit Exits system setup after saving the changes. Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system after saving the changes. Discard Changes and Resets system setup without saving any Reset...

  • Page 116: Appendix

    Appendix This section (based on IB811F board) provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration. I/O Port Address Map  Interrupt Request Lines (IRQ)  Watchdog Timer Configuration ...

  • Page 117: I/O Port Address Map (Ib818F)

    Motherboard resources 0x00000092-0x00000092 Motherboard resources 0x000000B2-0x000000B3 Motherboard resources 0x00000680-0x0000069F Motherboard resources 0x00000400-0x0000047F Motherboard resources 0x00000500-0x000005FE Motherboard resources 0x00000600-0x0000061F Motherboard resources 0x0000164E-0x0000164F Motherboard resources 0x0000F040-0x0000F05F Intel(R) Celeron(R)/Pentium(R) Processor SMBUS - 5AD4 0x0000D000-0x0000DFFF Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD9 OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 118 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x0000F000-0x0000F03F Intel(R) HD Graphics 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer OFP-151-PC/OFP-2100-PC/OFP2101-PC...

  • Page 119: I/O Port Address Map (Ib917)

    Programmable interrupt controller 0x00000A00-0x00000A0F Motherboard resources 0x00000A10-0x00000A1F Motherboard resources 0x00000A10-0x00000A1F Motherboard resources 0x0000002E-0x0000002F Motherboard resources 0x0000004E-0x0000004F Motherboard resources 0x00000061-0x00000061 Motherboard resources 0x00000063-0x00000063 Motherboard resources 0x00000065-0x00000065 Motherboard resources 0x00000067-0x00000067 Motherboard resources 0x00000070-0x00000070 Motherboard resources 0x00000070-0x00000070 System CMOS/real time clock 0x00000080-0x00000080 Motherboard resources OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 120 Motherboard resources 0x00000060-0x00000060 Standard PS/2 Keyboard 0x00000064-0x00000064 Standard PS/2 Keyboard 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x0000F000-0x0000F03F Intel(R) HD Graphics 620 0x000003B0-0x000003BB Intel(R) HD Graphics 620 0x000003C0-0x000003DF Intel(R) HD Graphics 620 OFP-151-PC/OFP-2100-PC/OFP2101-PC...

  • Page 121: Interrupt Request Lines (Irq) (Ib818F)

    Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft) IRQ 4294967280 ~ 285 Intel(R) I211 Gigabit Network Connection #2 IRQ 4294967286 ~ 291 Intel(R) I211 Gigabit Network Connection IRQ 4294967292 Intel(R) Trusted Execution Engine Interface IRQ 4294967293 Intel(R) HD Graphics IRQ 4294967294 Standard SATA AHCI Controller OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 122 Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft) IRQ 4294967291 Intel(R) HD Graphics 620 IRQ 4294967292 Intel(R) Ethernet Connection I219-V IRQ 4294967293 Standard SATA AHCI Controller IRQ 4294967294 Mobile 6th/7th Generation Intel(R) Processor Family I/O PCI Express Root Port #11 - 9D1A OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 123 Fintek 81964, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime); if (bTime) { EnableWDT(bTime); } else { DisableWDT(); return 0; //--------------------------------------------------------------------------- OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 124 // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------- #include "F81964.H" #include <dos.h> //--------------------------------------------------------------------------- unsigned int F81964_BASE; void Unlock_F81964 (void); void Lock_F81964 (void); //--------------------------------------------------------------------------- unsigned int Init_F81964(void) unsigned int result; unsigned char ucDid; OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 125 //--------------------------------------------------------------------------- //--------------------------------------------------------------------------- // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 126 **endptr; char SIO; printf("Fintek 81866 watch dog program\n"); SIO = Init_F81866(); if (SIO == 0) printf("Can not detect Fintek 81866, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 127 // THIS CODE AND INFORMATION IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY // KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE // IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR // PURPOSE. //--------------------------------------------------------------------------- #include "F81866.H" #include <dos.h> //--------------------------------------------------------------------------- OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 128 Unlock_F81866(); outportb(F81866_INDEX_PORT, F81866_REG_LD); outportb(F81866_DATA_PORT, LD); Lock_F81866(); //--------------------------------------------------------------------------- void Set_F81866_Reg( unsigned char REG, unsigned char DATA) Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); outportb(F81866_DATA_PORT, DATA); Lock_F81866(); //--------------------------------------------------------------------------- unsigned char Get_F81866_Reg(unsigned char REG) unsigned char Result; Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); Result = inportb(F81866_DATA_PORT); Lock_F81866(); return Result; OFP-151-PC/OFP-2100-PC/OFP2101-PC...
  • Page 129 F81866_INDEX_PORT (F81866_BASE) #define F81866_DATA_PORT (F81866_BASE+1) //--------------------------------------------------------------------------- #define F81866_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81866_UNLOCK 0x87 #define F81866_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81866(void); void Set_F81866_LD( unsigned char); void Set_F81866_Reg( unsigned char, unsigned char); unsigned char Get_F81866_Reg( unsigned char); //--------------------------------------------------------------------------- #endif // F81866_H OFP-151-PC/OFP-2100-PC/OFP2101-PC...

This manual is also suitable for:

Ofp-2100-pcOfp-2101-pc

Table of Contents
