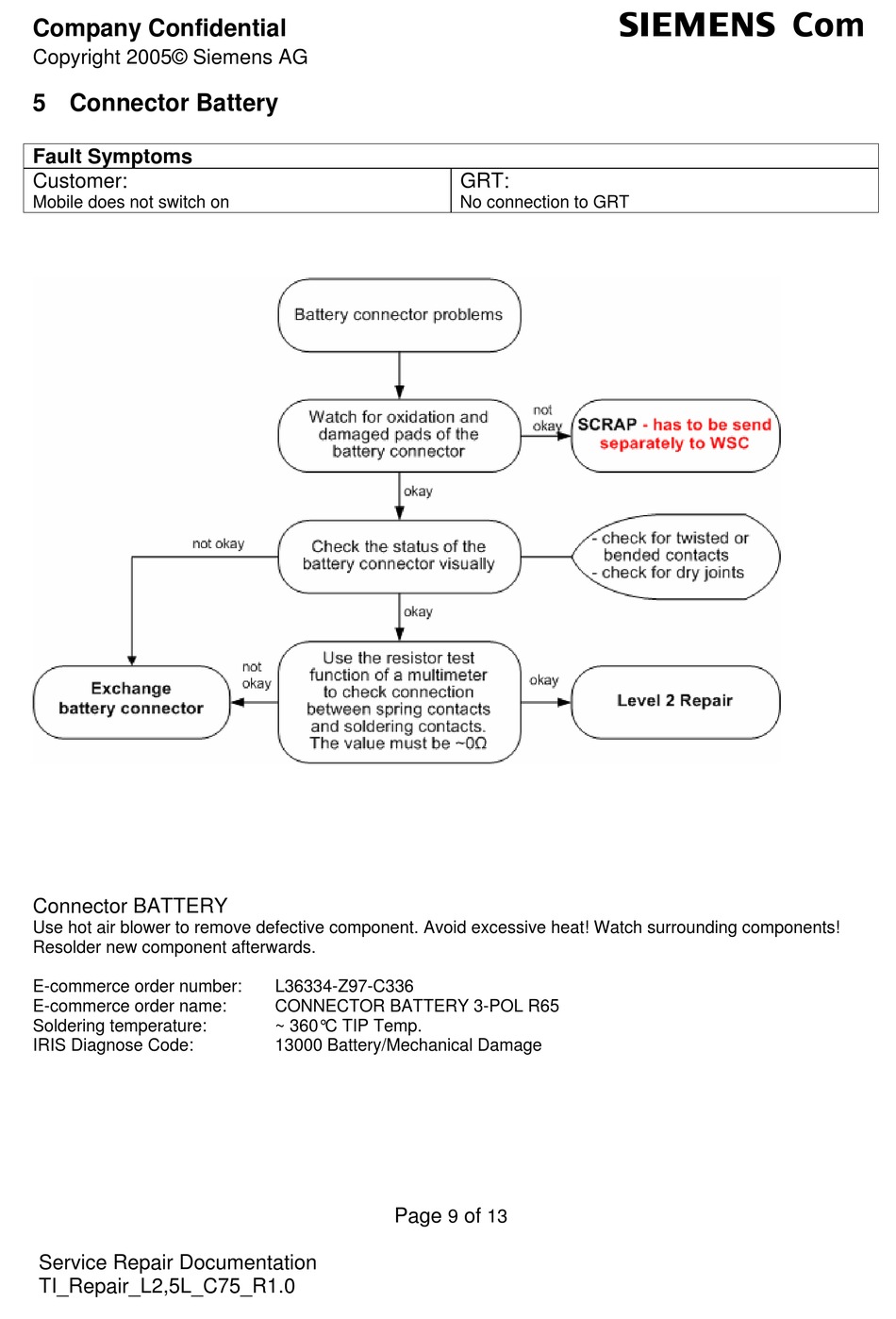

5 Connector Battery

Fault Symptoms
Customer:
Mobile does not switch on
Connector BATTERY
Use hot air blower to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number:
E-commerce order name:
Soldering temperature:
IRIS Diagnose Code:
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
L36334-Z97-C336
CONNECTOR BATTERY 3-POL R65
~ 360°C TIP Temp.
13000 Battery/Mechanical Damage
