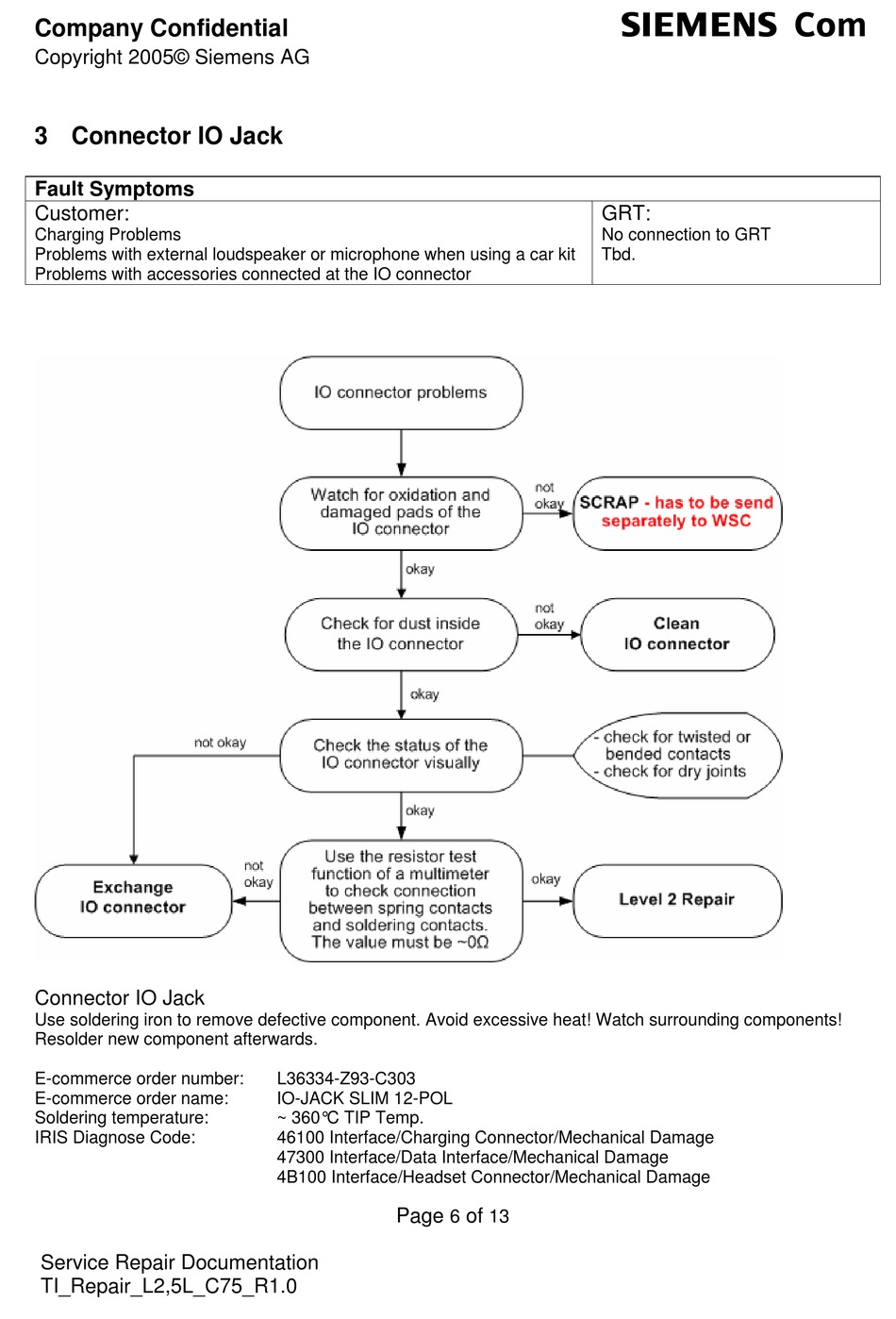

3 Connector IO Jack

Fault Symptoms
Customer:
Charging Problems
Problems with external loudspeaker or microphone when using a car kit
Problems with accessories connected at the IO connector
Connector IO Jack
Use soldering iron to remove defective component. Avoid excessive heat! Watch surrounding components!
Resolder new component afterwards.
E-commerce order number:
E-commerce order name:
Soldering temperature:
IRIS Diagnose Code:
Service Repair Documentation
TI_Repair_L2,5L_C75_R1.0
L36334-Z93-C303
IO-JACK SLIM 12-POL
~ 360°C TIP Temp.
46100 Interface/Charging Connector/Mechanical Damage
47300 Interface/Data Interface/Mechanical Damage
4B100 Interface/Headset Connector/Mechanical Damage
Page
GRT:
No connection to GRT
Tbd.
