Star Trac TreadClimber Troubleshooting

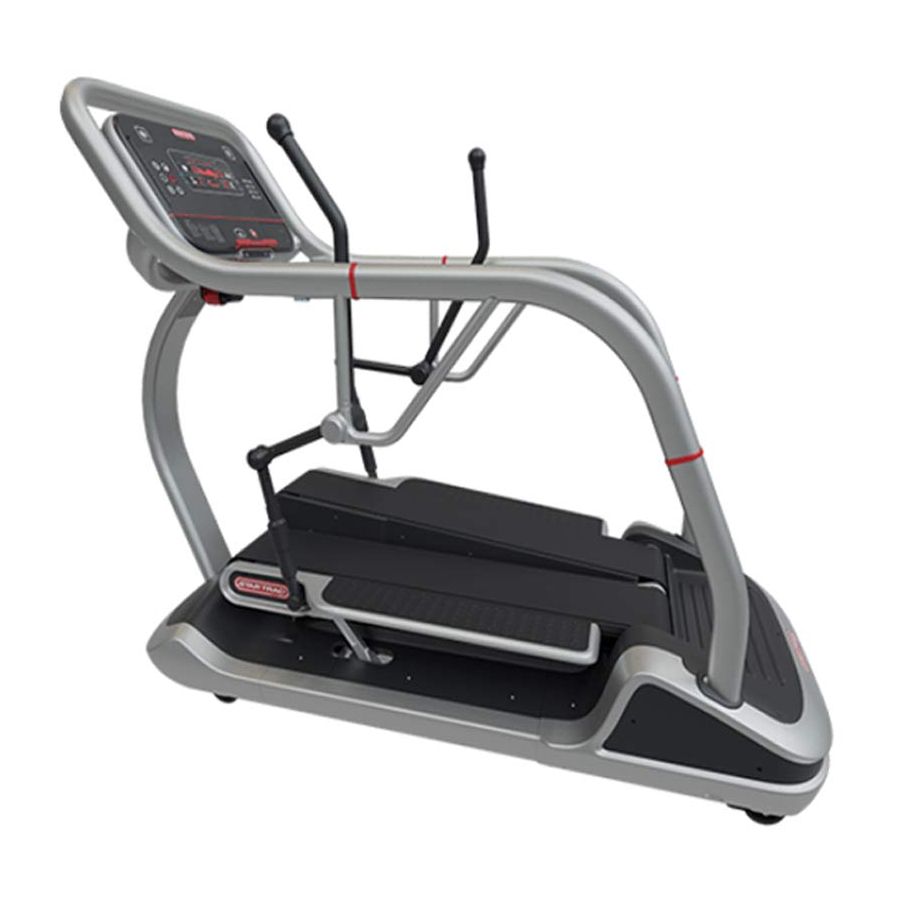

TreadClimber® has the ability to store information for the last five error codes that have occurred on the unit. The
information is stored in the Last Error List (in the Maintenance Mode). This information is critical for effective
troubleshooting on the TreadClimber®.

Access the Last Error List

To enter the Maintenance Mode, press and hold,
Press
Once in the Last Error List Setting
There are five sets of information for the last five error codes that have occurred.
Press numbers thru
Use the
right of the information name in brackets. Example: "LAST ERROR (1)".

Set Information

Set information lists the details about specific conditions when an error code occurs.
LAST CODE – The error code that occurred and is represented by a number. Reference the LAST CODE chart to find the
last code.
LAST LEVEL- percentage that the elevation was commanded to be at the time the error code occurred.
LAST TRDL POS- The value of the treadle position bits last received from the Lower Control Board at the time of the
error.
LAST SSPD – The speed that the unit was commanded to be at the time of the error code.
LAST PWM –The power output of the MCB (measured in PWM's) at the time of the error code.
LAST MSPD – The speed that the RPM sensor registered at the time of the error code.
LAST TIME – The time (in seconds) into the program when the error occurred.
LAST DFR – The Drive Fault Record from the MCB (if applicable) which caused the error code.
LAST PRGM – The program that the machine was running when the error occurred. Reference the LAST PRGM chart.
LAST ODOM – The number of miles/kilometers accumulated on the treadmill at the time of the error code.
LAST OPHR- The number of hours accumulated on the treadmill at the time of the error code.
ERR CNT- This numbers is used to determine which is the most recent code. The highest number points out the most
recent error code set.
