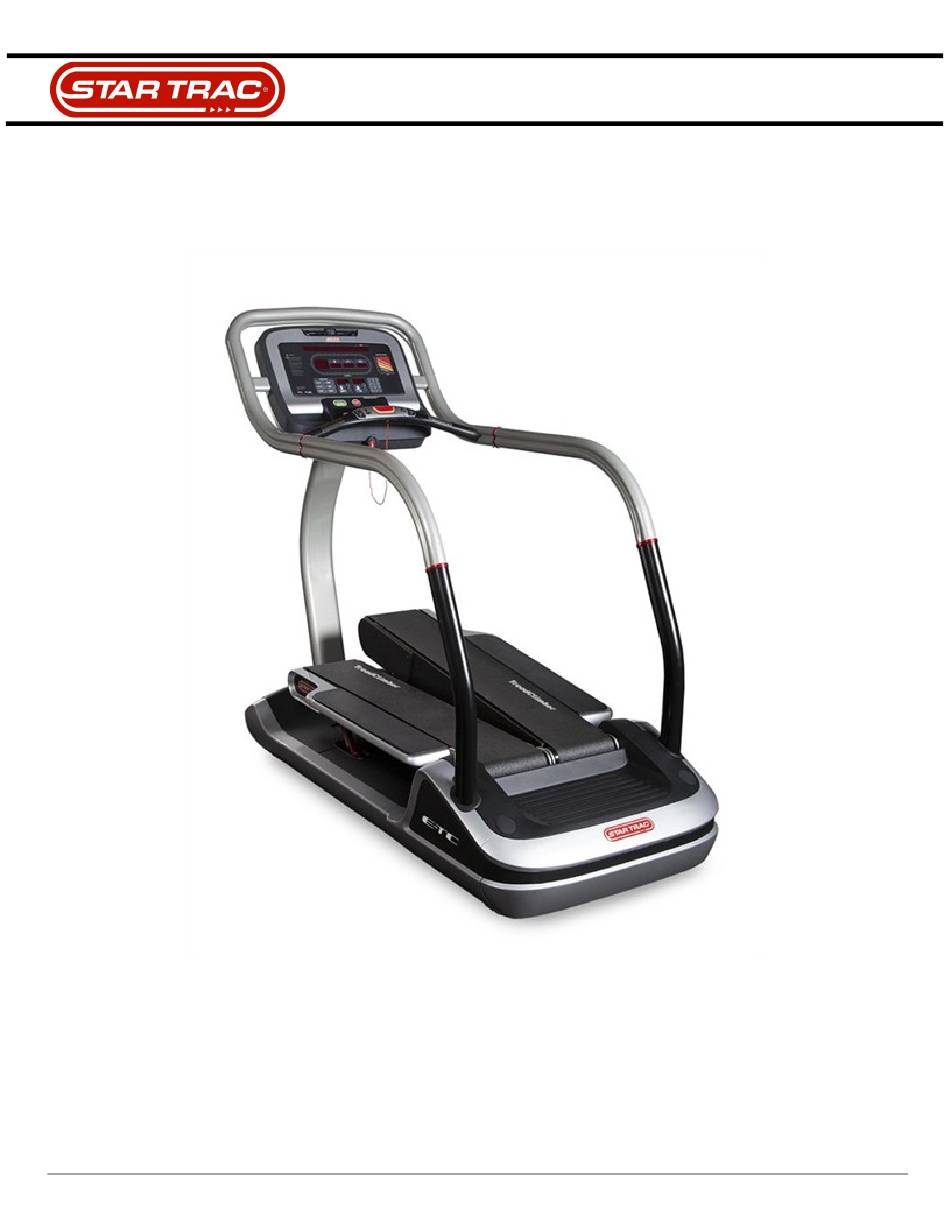

- Page 1 Assembly & Setup ® TreadClimber INSTALLATION INSTRUCTIONS STAR TRAC FITNESS 1 of 14 635-4175 Rev: B...
- Page 2 Assembly & Setup NOTICE Installation of this product requires that 2 or more people are available to safely perform certain steps outlined by this document. STAR TRAC FITNESS 2 of 14 635-4175 Rev: B...
- Page 3 2. Cut all straps to remove the cardboard packaging along with any protective wrapping to expose the palletized TreadClimber base and assembly components (Fig. 2). Fig. 2 3. Move all unattached components off the TreadClimber base (Fig. 3). Components: Console Frame Neck Mast Rear Corner Shroud (Left &...
- Page 4 Fig. 4 5. Remove the alternator shroud (Fig. 5) located under the two treadle assemblies at the front of the TreadClimber base. Fig. 5 6. Locate the two transport grip handles (Fig. 6) that come with the packaged base and attach them to the “J”...
- Page 5 Fig. 7 8. Remove and store the transport grip handles (Fig. 8) once the TreadClimber base is safely on the floor. The transport grip handles can be reattached for future transport.
-
Page 6: Assembly Tip
17 of the assembly process. 11. Mount the left & right lower handrail sections to the TreadClimber base and loosely thread four socket head cap bolts to each handrail mount (Fig. 11) along with sliding on the corresponding left & right handrail grommets into place. - Page 7 Hardware: 5/16-18 X 1.0” Socket Head Cap Screw 5/16 Flat Washer 5/16 Split Lock Washer QTY: 4 Each Final Torque: 240 In-Lbs (27 Nm) Fig. 15 STAR TRAC FITNESS 7 of 14 635-4175 Rev: B...
- Page 8 (Fig. 17) specifications which are listed in the notes section of the step instructions. Fig. 17 18. Hover the top half of the display (Fig. 18) over the console frame. Fig. 18 STAR TRAC FITNESS 8 of 14 635-4175 Rev: B...
- Page 9 21. From the back of the display (Fig. 22) secure the display’s grounding wire to the frame using a washer & phillips head screw. Hardware: #8-18X 3/4” Phillips Pan Head Thread Tap Screw M4 Flat Washer QTY: 1 Each Fig. 22 STAR TRAC FITNESS 9 of 14 635-4175 Rev: B...
- Page 10 (Fig. 24). Hardware: #8-18X 3/4” Phillips Pan Head Thread Tap Screw QTY: 8 Each Fig. 24 24. Dislodge the rear step shroud from the TreadClimber base (Fig. 25) and move the handrail grommets up the handrails. Fig. 25 STAR TRAC FITNESS...
- Page 11 Assembly & Setup 25. Mount the rear shroud to the TreadClimber base and secure it in place by installing the corresponding five phillips head screws to the top (Fig. 26) and lower (Fig. 27) sections at the circled locations. Fig. 27 Hardware: M5x0.8-16mm Phillips Pan Head Machined Screw...
- Page 12 30. Locate the stabilizing feet (Fig. 32) and thread the jam nuts onto the threaded stud of each foot until the base of each stud is reached. Hardware: 1/2 -13 Jam Nut QTY: 1 Each Fig. 32 STAR TRAC FITNESS 12 of 14 635-4175 Rev: B...
- Page 13 Assembly & Setup 31. With two or more people, have one person carefully tilt the assembled TreadClimber (Fig. 33) at an angle by pushing up at the center of each handrail while the second person installs the rear stabilizing feet.
- Page 14 Assembly & Setup 34. Wedge the cover plugs back into the rear step shroud once the TreadClimber is resting on the stabilizing feet. 35. Plug the power cord into the power & connections panel located at the front of the machine (Fig. 36).
