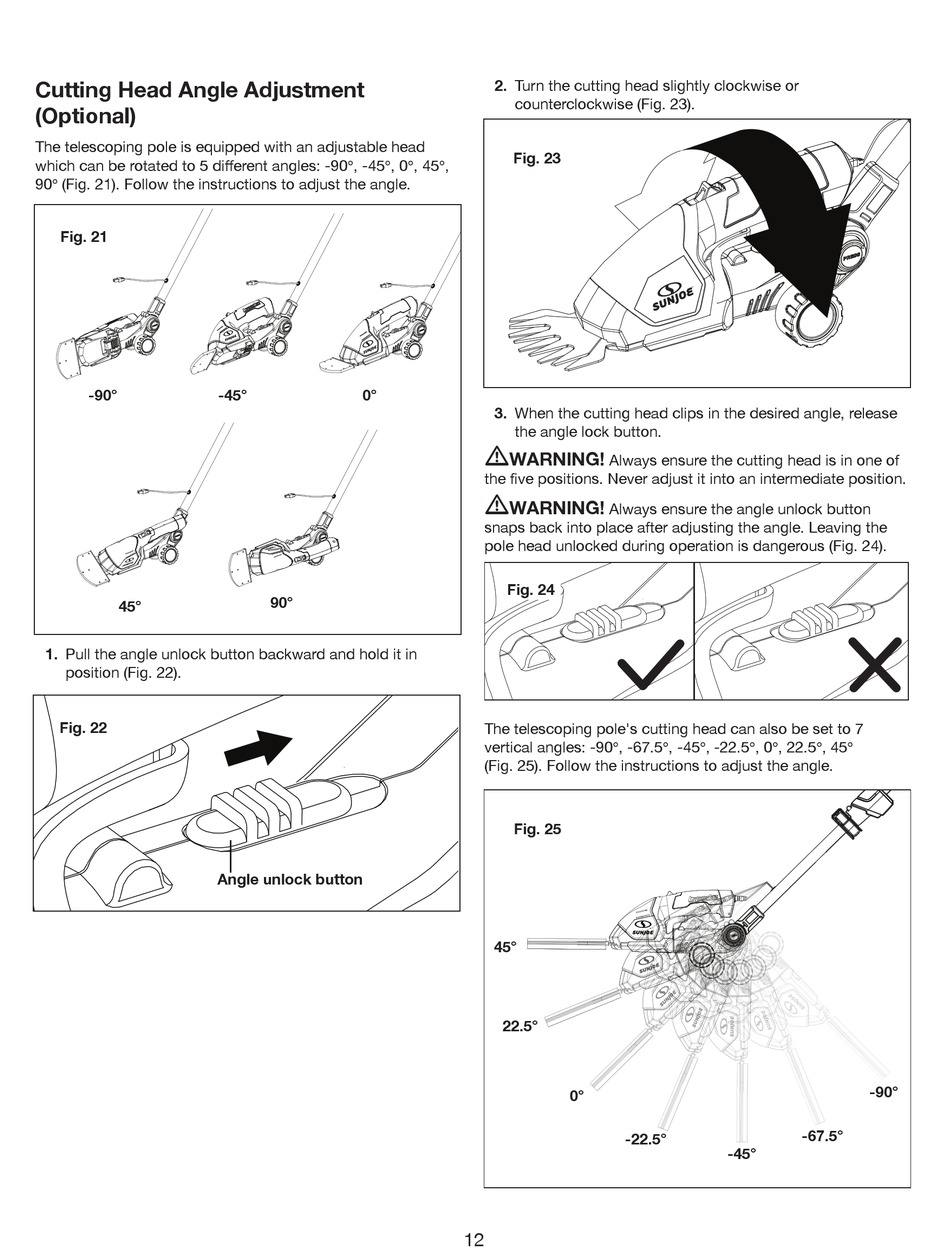

SNOWJOE SUNJOE HJ605CC Operator's Manual page 12

Cutting Head Angle Adjustment
(Optional)
The telescoping pole is equipped with an adjustable head
which can be rotated to 5 different angles: -90°, -45°, 0°, 45°,
90° (Fig. 21). Follow the instructions to adjust the angle.
Fig. 21
-90°
45°
1. Pull the angle unlock button backward and hold it in
position (Fig. 22).
Fig. 22
-45° 0°
90°
Angle unlock button
2. Turn the cutting head slightly clockwise or
counterclockwise (Fig. 23).
Fig. 23
3. When the cutting head clips in the desired angle, release
the angle lock button.
m
WARNING!
Always ensure the cutting head is in one of
the five positions. Never adjust it into an intermediate position.
m
WARNING!
Always ensure the angle unlock button
snaps back into place after adjusting the angle. Leaving the
pole head unlocked during operation is dangerous (Fig. 24).
Fig. 24
The telescoping pole's cutting head can also be set to 7
vertical angles: -90°, -67.5°, -45°, -22.5°, 0°, 22.5°, 45°
(Fig. 25). Follow the instructions to adjust the angle.
Fig. 25
45°
22.5°
0°
-22.5°
