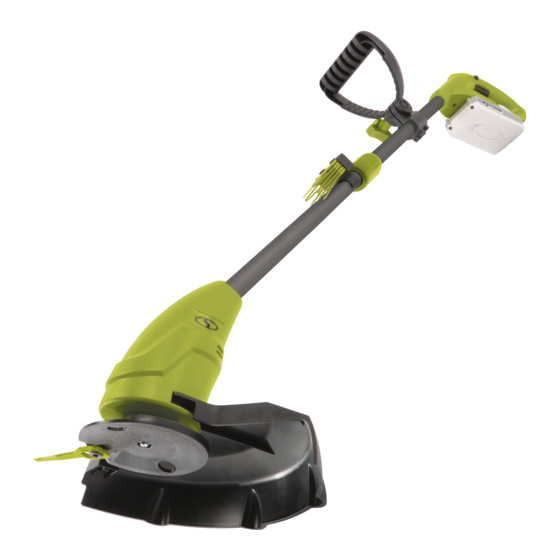

Cordless pole grass trimmer 24v max 2.0 ah 10 inch
Hide thumbs Also See for Sunjoe 24V-GT10-LT:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

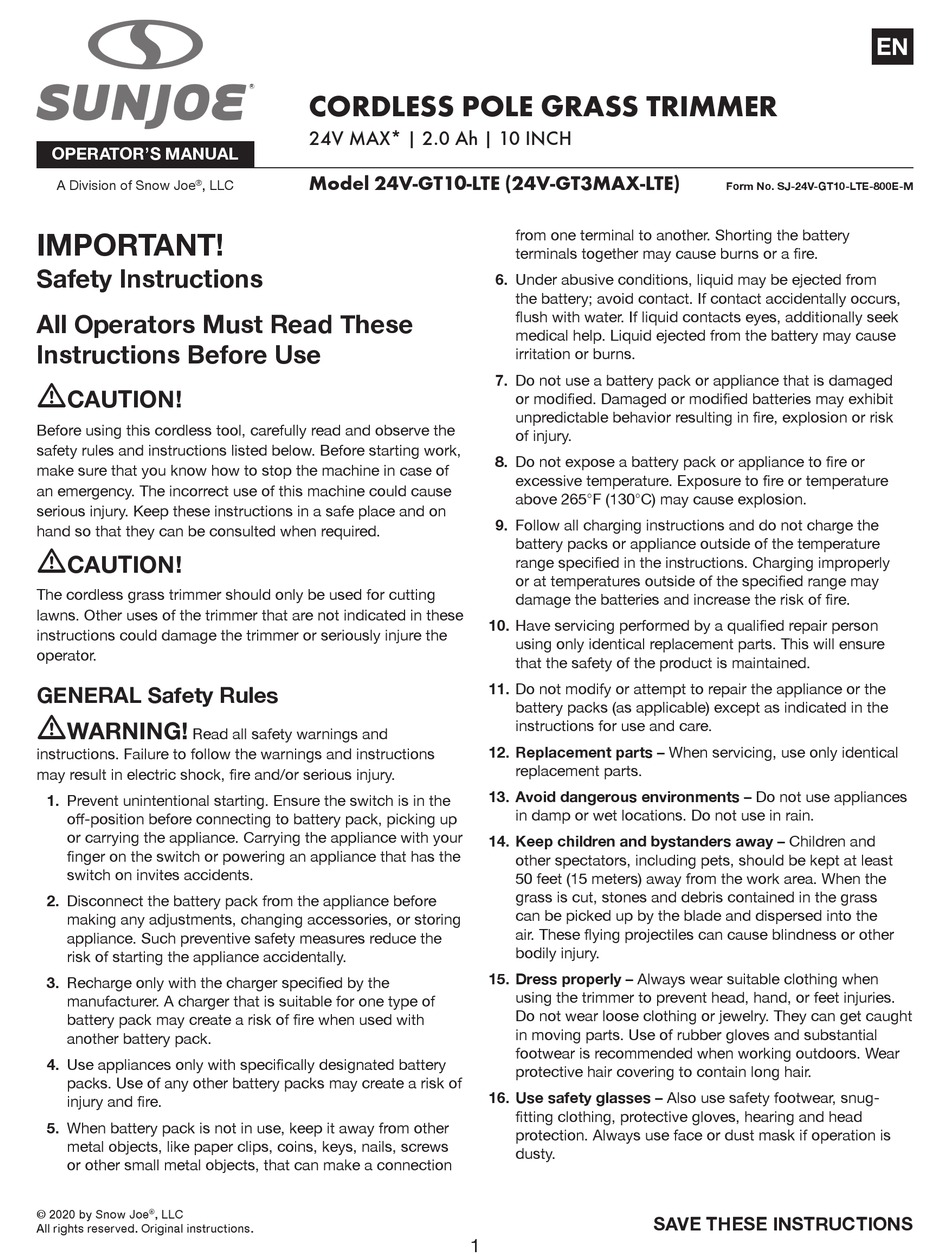

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
m
CAUTION!
Before using this cordless tool, carefully read and observe the
safety rules and instructions listed below. Before starting work,
make sure that you know how to stop the machine in case of
an emergency. The incorrect use of this machine could cause
serious injury. Keep these instructions in a safe place and on
hand so that they can be consulted when required.
m
CAUTION!
The cordless grass trimmer should only be used for cutting
lawns. Other uses of the trimmer that are not indicated in these
instructions could damage the trimmer or seriously injure the
operator.
GENERAL Safety Rules
m
WARNING!
Read all safety warnings and
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
1. Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to battery pack, picking up
or carrying the appliance. Carrying the appliance with your
finger on the switch or powering an appliance that has the
switch on invites accidents.
2. Disconnect the battery pack from the appliance before
making any adjustments, changing accessories, or storing
appliance. Such preventive safety measures reduce the
risk of starting the appliance accidentally.
3. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
4. Use appliances only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
5. When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
© 2020 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
R
CORDLESS POLE GRASS TRIMMER
24V MAX* | 2.0 Ah | 10 INCH
Model 24V-GT10-LTE (24V-GT3MAX-LTE)
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or appliance that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
8. Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may cause explosion.
9. Follow all charging instructions and do not charge the
battery packs or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
damage the batteries and increase the risk of fire.
10. Have servicing performed by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the product is maintained.
11. Do not modify or attempt to repair the appliance or the
battery packs (as applicable) except as indicated in the
instructions for use and care.
12. Replacement parts – When servicing, use only identical
replacement parts.
13. Avoid dangerous environments – Do not use appliances
in damp or wet locations. Do not use in rain.
14. Keep children and bystanders away – Children and
other spectators, including pets, should be kept at least
50 feet (15 meters) away from the work area. When the
grass is cut, stones and debris contained in the grass
can be picked up by the blade and dispersed into the
air. These flying projectiles can cause blindness or other
bodily injury.
15. Dress properly – Always wear suitable clothing when
using the trimmer to prevent head, hand, or feet injuries.
Do not wear loose clothing or jewelry. They can get caught
in moving parts. Use of rubber gloves and substantial
footwear is recommended when working outdoors. Wear
protective hair covering to contain long hair.
16. Use safety glasses – Also use safety footwear, snug-
fitting clothing, protective gloves, hearing and head
protection. Always use face or dust mask if operation is
dusty.
1
Form No. SJ-24V-GT10-LTE-800E-M
SAVE THESE INSTRUCTIONS
EN
