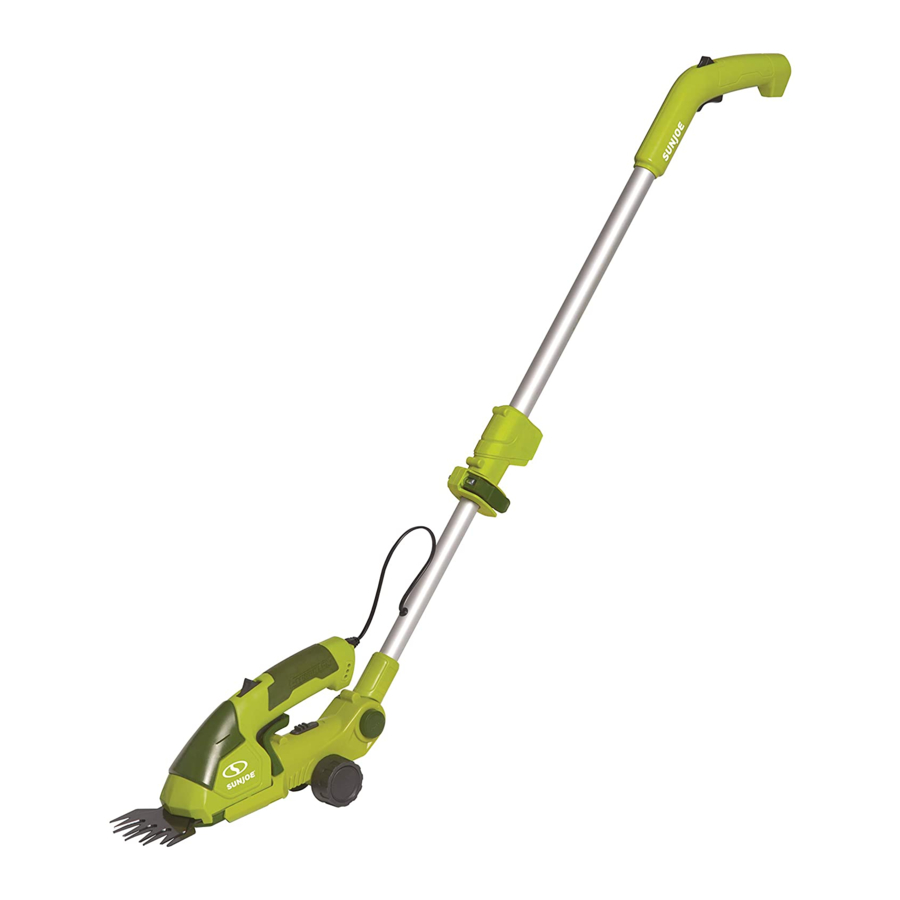

2-in-1 cordless telescoping grass shears + hedge trimmer. 7.2v lithium-ion
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

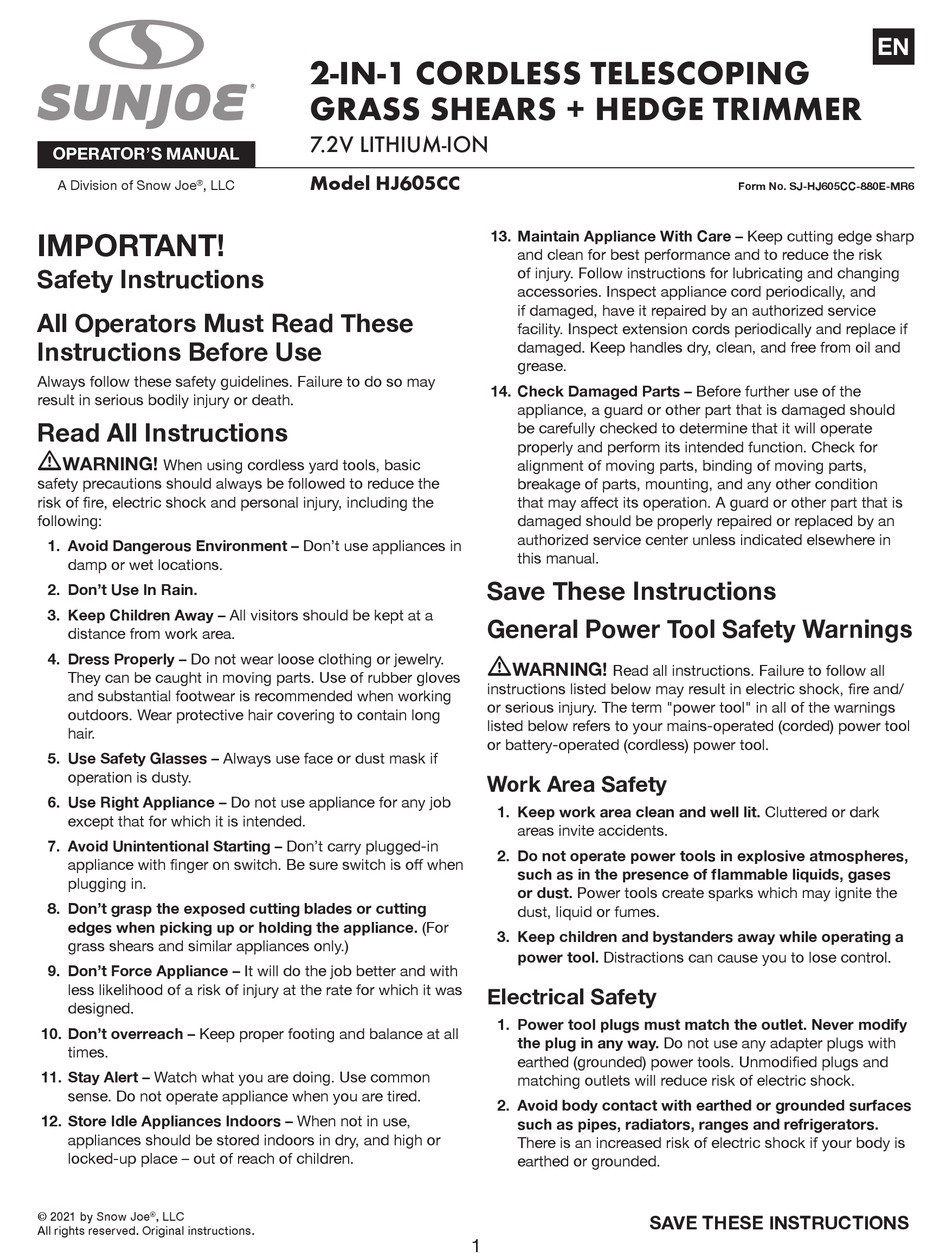

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
Read All Instructions
m
WARNING!
When using cordless yard tools, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock and personal injury, including the
following:
1. Avoid Dangerous Environment – Don't use appliances in
damp or wet locations.
2. Don't Use In Rain.
3. Keep Children Away – All visitors should be kept at a
distance from work area.
4. Dress Properly – Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long
hair.
5. Use Safety Glasses – Always use face or dust mask if
operation is dusty.
6. Use Right Appliance – Do not use appliance for any job
except that for which it is intended.
7. Avoid Unintentional Starting – Don't carry plugged-in
appliance with finger on switch. Be sure switch is off when
plugging in.
8. Don't grasp the exposed cutting blades or cutting
edges when picking up or holding the appliance. (For
grass shears and similar appliances only.)
9. Don't Force Appliance – It will do the job better and with
less likelihood of a risk of injury at the rate for which it was
designed.
10. Don't overreach – Keep proper footing and balance at all
times.
11. Stay Alert – Watch what you are doing. Use common
sense. Do not operate appliance when you are tired.
12. Store Idle Appliances Indoors – When not in use,
appliances should be stored indoors in dry, and high or
locked-up place – out of reach of children.
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
2-IN-1 CORDLESS TELESCOPING
R
GRASS SHEARS + HEDGE TRIMMER
7.2V LITHIUM-ION
Model HJ605CC
13. Maintain Appliance With Care – Keep cutting edge sharp
and clean for best performance and to reduce the risk
of injury. Follow instructions for lubricating and changing
accessories. Inspect appliance cord periodically, and
if damaged, have it repaired by an authorized service
facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and
grease.
14. Check Damaged Parts – Before further use of the
appliance, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced by an
authorized service center unless indicated elsewhere in
this manual.
Save These Instructions
General Power Tool Safety Warnings
m
WARNING!
Read all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/
or serious injury. The term "power tool" in all of the warnings
listed below refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
Work Area Safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases
or dust. Power tools create sparks which may ignite the
dust, liquid or fumes.
3. Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
SAVE THESE INSTRUCTIONS
1
EN
Form No. SJ-HJ605CC-880E-MR6
