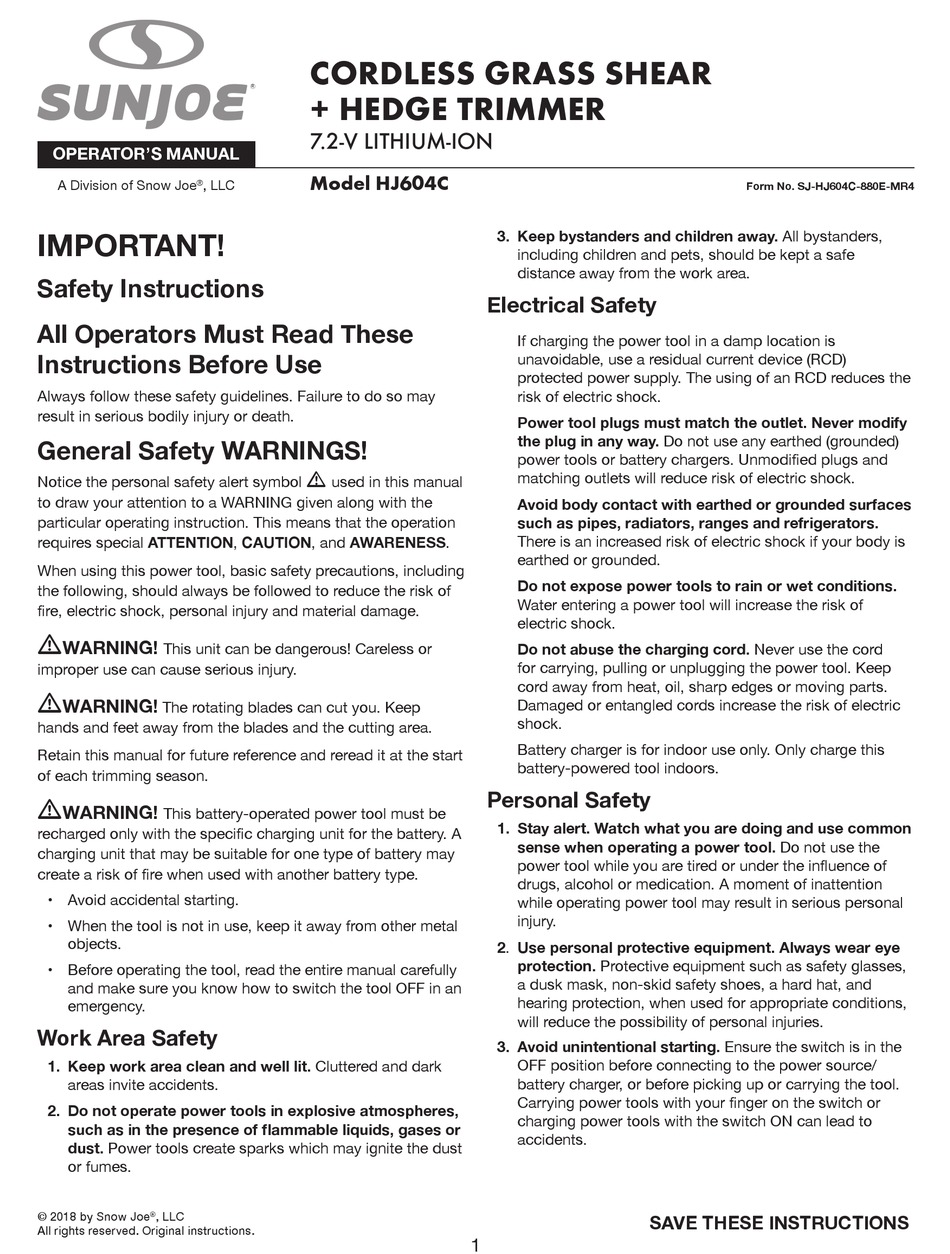

SNOWJOE SUNJOE HJ604C-PRP Operator's Manual

SNOWJOE SUNJOE HJ604C-PRP Operator's Manual

Cordless grass shear + hedge trimmer

Advertisement

Quick Links

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
Notice the personal safety alert symbol
to draw your attention to a WARNING given along with the
particular operating instruction. This means that the operation
requires special ATTENTION, CAUTION, and AWARENESS.
When using this power tool, basic safety precautions, including
the following, should always be followed to reduce the risk of
fire, electric shock, personal injury and material damage.
m
WARNING!
This unit can be dangerous! Careless or
improper use can cause serious injury.
m
WARNING!
The rotating blades can cut you. Keep
hands and feet away from the blades and the cutting area.
Retain this manual for future reference and reread it at the start
of each trimming season.
m
WARNING!
This battery-operated power tool must be
recharged only with the specific charging unit for the battery. A
charging unit that may be suitable for one type of battery may
create a risk of fire when used with another battery type.
• Avoid accidental starting.
• When the tool is not in use, keep it away from other metal
objects.
• Before operating the tool, read the entire manual carefully
and make sure you know how to switch the tool OFF in an
emergency.
Work Area Safety
1. Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
© 2018 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS GRASS SHEAR
R
+ HEDGE TRIMMER
7.2-V LITHIUM-ION
Model HJ604C
m
used in this manual
3. Keep bystanders and children away. All bystanders,
including children and pets, should be kept a safe
distance away from the work area.
Electrical Safety
If charging the power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected power supply. The using of an RCD reduces the
risk of electric shock.
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any earthed (grounded)
power tools or battery chargers. Unmodified plugs and
matching outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
Do not abuse the charging cord. Never use the cord
for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
Battery charger is for indoor use only. Only charge this
battery-powered tool indoors.
Personal Safety
1. Stay alert. Watch what you are doing and use common
sense when operating a power tool. Do not use the
power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention
while operating power tool may result in serious personal
injury.
2. Use personal protective equipment. Always wear eye
protection. Protective equipment such as safety glasses,
a dusk mask, non-skid safety shoes, a hard hat, and
hearing protection, when used for appropriate conditions,
will reduce the possibility of personal injuries.
3. Avoid unintentional starting. Ensure the switch is in the
OFF position before connecting to the power source/
battery charger, or before picking up or carrying the tool.
Carrying power tools with your finger on the switch or
charging power tools with the switch ON can lead to
accidents.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-HJ604C-880E-MR4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE HJ604C-PRP and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE SUNJOE HJ604C-PRP

  • Page 1 CORDLESS GRASS SHEAR + HEDGE TRIMMER 7.2-V LITHIUM-ION OPERATOR’S MANUAL Model HJ604C A Division of Snow Joe , LLC ® Form No. SJ-HJ604C-880E-MR4 IMPORTANT! 3. Keep bystanders and children away. All bystanders, including children and pets, should be kept a safe distance away from the work area.
  • Page 2: Battery Safety Warnings

    4. Remove any adjusting key or wrench before starting Cutter blades contacting a "live" wire may make exposed the power tool. A wrench or a key left attached to a metal parts of the power tool "live" and could give the operator an electric shock.
  • Page 3 7. Do not operate the charger if it has received a sharp blow or has become damaged in any way. 8. Do not disassemble the charger. If the charger requires service or repair, contact an authorized Snow Joe ® Sun Joe dealer ®...
  • Page 4: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on this tool before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand SAFETY ALERT –...
  • Page 5: Technical Data

    Know Your Cordless Grass Shear + Hedge Trimmer 1. Grass shear + hedge trimmer handle 2. Safety lock-off button 3. Charge level indicator 4. Power ON/OFF trigger switch 5. Charging socket 6. Motor housing 7. Blade cover 8. Grass shear blade sheath 9.
  • Page 6 Unpacking Fig. 1 Carton Contents • Cordless grass shear + hedge trimmer • Hedge trimmer blade • Hedge trimmer blade sheath • Grass shear blade • Grass shear blade sheath • Charger • Manual with registration card 1. Carefully remove the cordless grass shear + hedger trimmer and check to see that all of the above items are supplied.
  • Page 7 2. Gently remove the blade by lifting the end tip of the blade 5. Once the blade is in position, replace the blade cover by off of the grass shear + hedge trimmer unit (Fig. 4). aligning the cover with the slots on the base of the motor housing (Fig.
  • Page 8: Before Using

    Before Using NOTE: The grass shear + hedge trimmer has been shipped in a low charge condition and should be fully charged before use. Charging Procedure 1. Plug the charger adaptor into an appropriate AC power outlet. Connect the AC adaptor charger plug into the The battery charger supplied matches the lithium-ion battery charging socket of the grass shear + hedge trimmer to installed in the tool.
  • Page 9: Operation

    CAUTION! Do not force the blades through dense Colour of LED's Illuminated Condition growth. If the blades slow down, then reduce your cutting LED's pace. Should the blades jam, release the trigger immediately. Do not use your fingers to free up jammed blades. Jammed 1- Red, 2- Not illuminated, blades can release suddenly causing serious injury.
  • Page 10: Blade Maintenance

    Maintenance 3. Keep the blades sharp. Have a worn or damaged cutting device replaced with a new one of the same type by a qualified specialist. WARNING! Always switch the product off and let the product cool down before performing inspection, maintenance and cleaning work.
  • Page 11: Model + Serial Numbers

    HJ604C-CHRG 2. Install only new batteries of the same type in your product (where applicable). Federal Communications Commission 3. Failure to insert batteries in the correct polarity, as indicated in the battery compartment or manual, may (FCC) shorten the life of the batteries or cause batteries to leak. 4.
  • Page 12 Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this cordless grass shear + hedge trimmer. Contact Snow Joe + Sun Joe if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless ®...
