ZKTeco InBIo Pro Series Installation Manual
Access control panels
Hide thumbs
Also See for InBIo Pro Series:
- Installation manual (36 pages) ,
- Installation manual (16 pages)
Related Manuals for ZKTeco InBIo Pro Series
Summary of Contents for ZKTeco InBIo Pro Series
- Page 1 INSTALLATION GUIDE InBio Pro Series Access Control Panels Date: April, 2021 Version: 1.4...
-
Page 2: What's In The Box
What’s in the Box 2 Screws & Anchors 2 Screwdriver 4 Diode InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 3: Table Of Contents
..............PC485 Extension Connection ........Connecting EX0808 through PC485 ......... DIP Switch Setting for RS485/OSDP Communication Restore Factory Setting ............ Installation Diagram ............ZKpanelWeb ................Troubleshooting ..............Electrical Specifications ........... Specifications ................InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 4: Optional Accessories

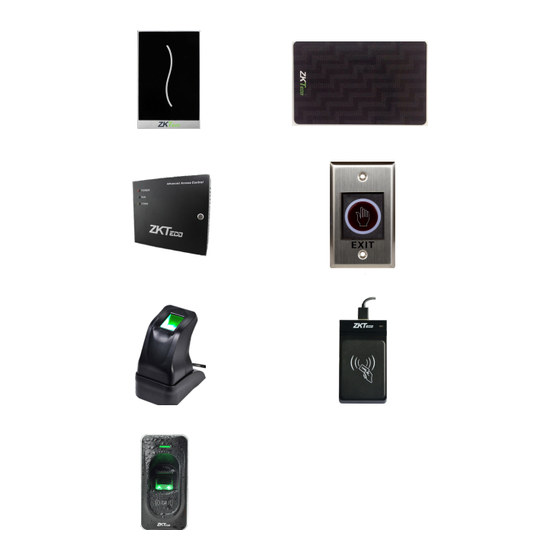

Optional accessories Wiegand Card Reader Prox Card InBio Pro Cabinet K2 Exit Button ZK4500 Enrollment reader CR20E Card Enroller RS485 Fingerprint Reader InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 5: Safety Precautions
Clean the device often to remove dust on it. In cleaning, do not splash water on the device but wipe it out with smooth cloth or towel. Contact your supplier in case of a problem. InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 6: Product Pin Diagram
Product PIN Diagram Figure 1 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 7: Led Indicators
Figure 5 Flashing (RUN) Green LED indicates that panel is in normal working state. Figure 6 Flashing (CARD) Yellow LED indicates that the card is read by the panel. Figure 7 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 8: Product Dimension
Figure 8 InBio Pro- Metal Cabinet 13 in 13 in (330 mm) (330 mm) 15.7 in (400 mm) 15.7 in (400 mm) 3.56 in 3.56 in (90.5 mm) (90.5 mm) Figure 9 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 9: Installation Of Panel & Cabinet
Mounting Rail Mounting Rail Figure 11 We recommend drilling the mounting plate screws into solid wood (i.e. stud/beam). If a stud/beam cannot be found, then use the supplied drywall plastic mollies (anchors). InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 10: Wiring Legend
Wiring Legend Figure 12 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 11: Power Wiring Diagram
Power Wiring Diagram Without Backup Battery Ground Switching Power Supply Figure 13 With Backup Battery Ground Switching Power Supply Figure 14 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 12: Rs485 Fingerprint Reader Connection
RS485 Fingerprint Reader Connection ETHERNET ETHERNET 12V DC 12V DC 12V DC 12V DC RS485 Fingerprint Reader Figure InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 13: Dip Switch Setting For Rs485 Reader
RS485 address 2 is for OUT reader) 200 meters or 600 ft , the number 6 switch should be ON as below: If RS485 fingerprint reader is pow- Distance: More than 200 meters Distance: More than 200 meters InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 14: Wiegand Connection
Wiegand Connection DC+(6-14V) DC+(6-14V) Wiegand D0 Wiegand D0 Wiegand D1 Wiegand D1 Green LED Green LED Beeper Beeper Wiegand Card Reader Figure 17 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 15: Rex Connections
REX Connections Separate Power Supply 12V DC(+) 12V DC(+) 12V DC( - ) 12V DC( - ) BUTTON BUTTON Unused Unused ZK ABK Exit Button K2 Exit Switch Figure 18 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 16: Lock Connection
Lock Connection Connecting a Lock with External to Power Supply (Dry Contact) ETHERNET ETHERNET Door Contact Door Contact Sensor Sensor Sensor Sensor 12V DC 12V DC FR107 FR107 Diode Diode Figure 19 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 17: Switching Dry Contact To Wet Contact
Connect the lock as show in the diagram, (see figure 23 and 24) Back of InBio460Pro Select one Relay Figure 20 Default setting Take off jumpers Jumpers Plug Jumpers 1, 2 - 3, 4 2, 3 - 4, 5 Figure 21 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 18: Lock Connection
16 or 18 AWG shielded cable recommended 12V DC 12V DC Figure 22 Normally Closed Lock Powered From Lock Terminal (Wet Contact) ETHERNET ETHERNET 12V DC 12V DC FR107 FR107 Diode Diode 12V DC 12V DC Figure 23 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 19: Aux. I/O Connection
Aux. I/O Connection Aux. Input Connection ETHERNET ETHERNET 12V DC 12V DC Figure 24 Aux. Output Connection ETHERNET ETHERNET 12V DC 12V DC Figure 25 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 20: Ethernet Connection
To connect InBio Pro Panel with a PC directly, connect both devices with a straight network cable. As the InBio Pro Panel supports auto MDI/MDIX, it is not necessary to use a crossover type cable. ETHERNET CR20E Card Issuer ZK4500 Enrollment reader Figure 27 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 21: Pc485 Extension Connection
R S 485 Subnet mask: 255.255.255.0 S WI TC H DC12V 485- 485+ Router ZKBioSecurity DC12V DC12V DC12V IP address: 192.168.1.130 #1 EX0808 #2 EX0808 #8 EX0808 Subnet mask: 255.255.255.0 Figure 28 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 22: Dip Switch Setting For Rs485/Osdp Communication
ON, OSDP mode is used. If the cable length is more than 200 meters, the switch 6 should be ON for noise reduction on long RS485 cables. InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 23: Restore Factory Setting
10 seconds and finally returned to OFF position, the factory settings will be restored after the access control panel is restarted. To reset factory settings Turn #7 switch ON and OFF Repeat process 3 times Figure 31 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 24: Installation Diagram
CEILING CEILING Sensor Sensor Electric Lock Electric Lock OUTDOOR INDOOR Exit Button Exit Button Outdoor Wiegand card reader Outdoor Wiegand card reader Indoor Wiegand card reader Indoor Wiegand card reader Figure 32 InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 25: Zkpanelweb
Web Server. b. When Web Server is used, “User Name“ and “Password“ should be set firstly.The default “user name” is admin and the default “password” is zkteco@12345. c. Click Sign in to enter the Web Server. 2. Basic Operation Bar of the Web Server... - Page 26 , change the language in which the server interface is displayed, and click Confirm. (3) Use Conditions of the Server Click , and you can view the version of the current server, as well as the browser and resolution recommended for the server. InBio Pro Series Access Control Panels INSTALLATION GUIDE...
- Page 27 If you met some problems when using the server, click to view or down- load the user help document. (5) Exit Click , and then click Confirm to return to the server login page. InBio Pro Series Access Control Panels INSTALLATION GUIDE...
- Page 28 IP Mode: the default server IP is 0.0.0.0, and you can modify it according to the actual. Port: the default Port is 80, and you can modify it according to the actual. InBio Pro Series Access Control Panels INSTALLATION GUIDE...
- Page 29 5. System (1) User Settings Click Edit to change the login password of an administrator or a user. InBio Pro Series Access Control Panels INSTALLATION GUIDE...
- Page 30 You can manually configure the controller time or synchronize the controller time with the PC time, and click Confirm to complete the setting.. (3) System Settings Click Reboot. The device will be restarted. (4) Device Information InBio Pro Series Access Control Panels INSTALLATION GUIDE...
-
Page 31: Troubleshooting
Figure 34 2. Can we integrate IP Camera and NVR? › Currently ZKBiosecurity software supports ZKTeco’ s IP Cameras and NVR › You can associate a camera to the door and setup a linkage for the same. 3. What does it mean when I get a “Wiegand Format Error”? ›... -
Page 32: Electrical Specifications
The input ports are pulled Pull- up resistance (Ω) 4.7k up with 4.7k resistors WIEGAND INPUT Voltage (V) 10.8 13.5 Current (mA) ZK ELECTRIC LOCK Voltage (V) DC 10.8 13.2 Current (mA) InBio Pro Series Access Control Panels INSTALLATION GUIDE... -
Page 33: Specifications
128MB 128MB 128MB Flash Memory 256MB 256MB 256MB Power 9.6V-14.4V DC 9.6V-14.4V DC 9.6V-14.4V DC Operating Temp 0-45°C 0-45°C 0-45°C Operating Hu- 20% to 80% 20% to 80% 20% to 80% midity InBio Pro Series Access Control Panels INSTALLATION GUIDE... - Page 34 Copyright © 2021. ZKTECO CO., LTD. All rights reserved.
