eldoLED LINEARdrive 180 Wiring Diagram page 2

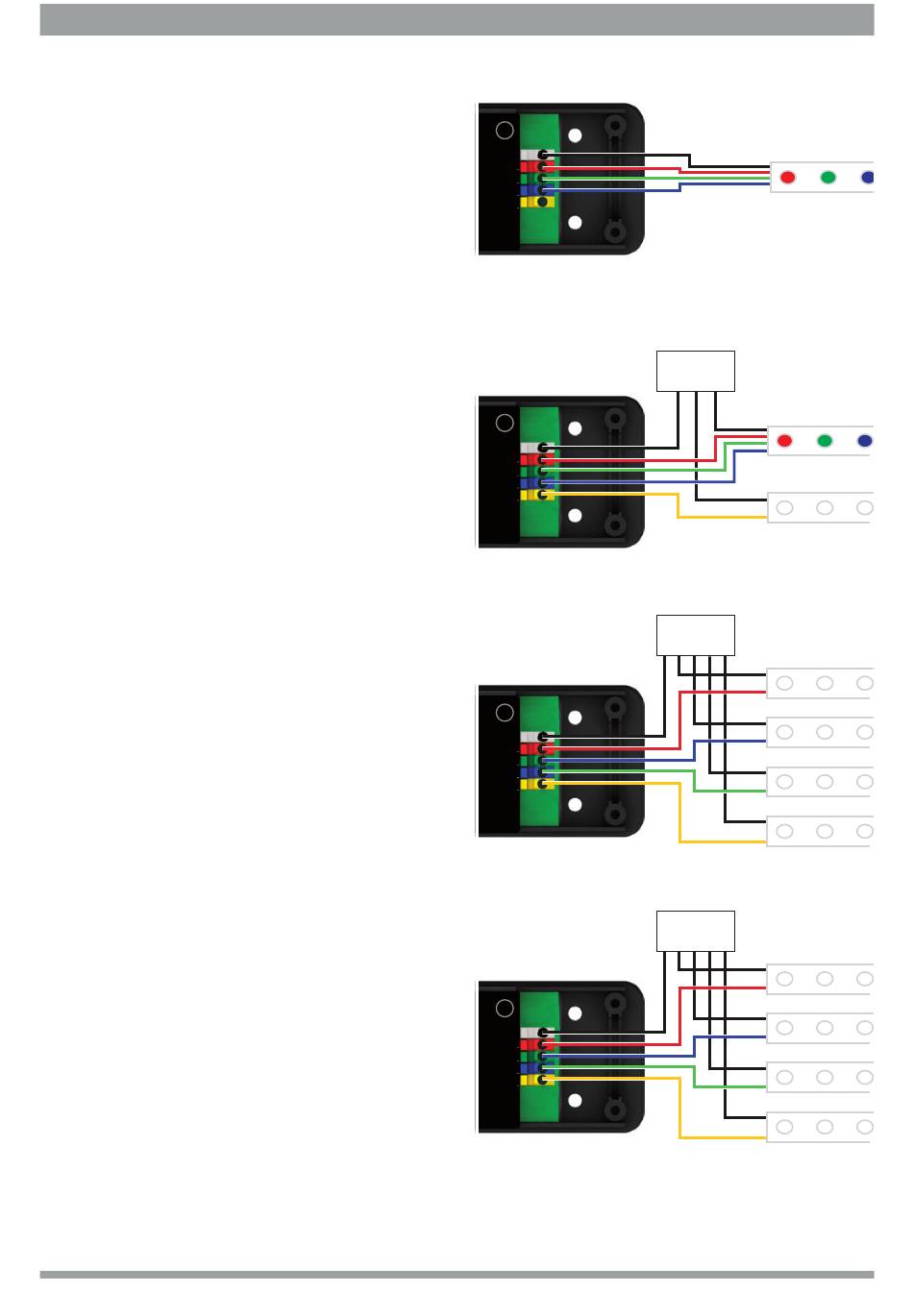

Wiring diagram LINEARdrive 180
Connecting an RGB LED strip
Maximum current per output at 12V: 2A
Maximum current per output at 24V: 2A
Configuration of the LED groups:
Press M and + simultaneously, in the LED menu choose
RGB and save this setting by pressing M.
Connecting an RGB strip and a white LED strip
Maximum current per output at 12V: 1.5A
Maximum current per output at 24V: 1.5A
Configuration of the LED groups:
Press M and + simultaneously, in the LED menu choose
RGBW and save this setting by pressing M.
Connecting warm white and cool white LED strips
Maximum current per output at 12V: 1.5A
Maximum current per output at 24V: 1.5A
Configuration of the LED groups:
Press M and + simultaneously, in the LED menu choose
4-4L and save this setting by pressing M.
Connecting four white or self-colored LED strips
Maximum current per output at 12V: 1.5A
Maximum current per output at 24V: 1.5A
Configuration of the LED groups:
Press M and + simultaneously, in the LED menu choose
1-4L and save this setting by pressing M.
eldoLED Europe bv Luchthavenweg 18a
eldoLED America, Inc. 1762 Technology Drive # 226 San Jose, CA95110
LED supply +
Group
Group
Group
Group
LED supply +
Group
Group
Group
Group
LED supply +
Group
Group
Group
Group
LED supply +
Group
Group
Group
Group
5657 EB Eindhoven The Netherlands
USA
TC
1
2
3
4
connector
e.g. Wago 222
TC
1
2
3
4
connector
e.g. Wago 222
TC
1
2
3
4
connector
e.g. Wago 222
TC
1
2
3
4
T +31 40 2054050 F +31 40 2054058
T +1 408 451 9333 F +1 408 451 9335
(LIN180D1)
RGB LED strip
+
R
G
B
Compact
RGB LED strip
+
R
G
B
White LED strip
+
-
Compact
Warm white LED strip
+
-
Cool white LED strip
+
-
Warm white LED strip
+
-
Cool white LED strip
+
-
Compact
White LED strip
+
-
White LED strip
+
-
White LED strip
+
-
White LED strip
+
-
V1.1
