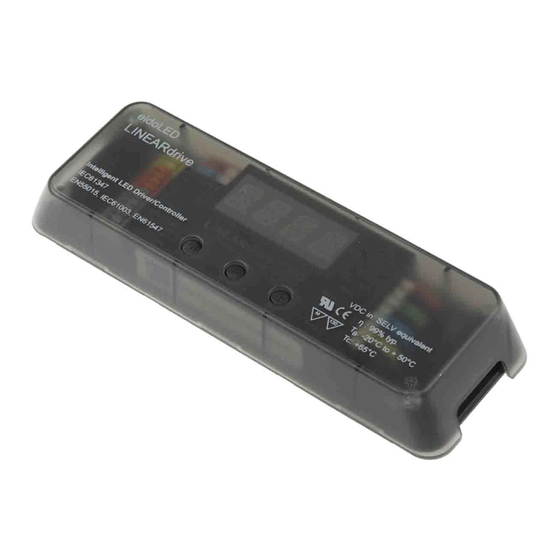

eldoLED LINEARdrive 720D Wiring Diagram

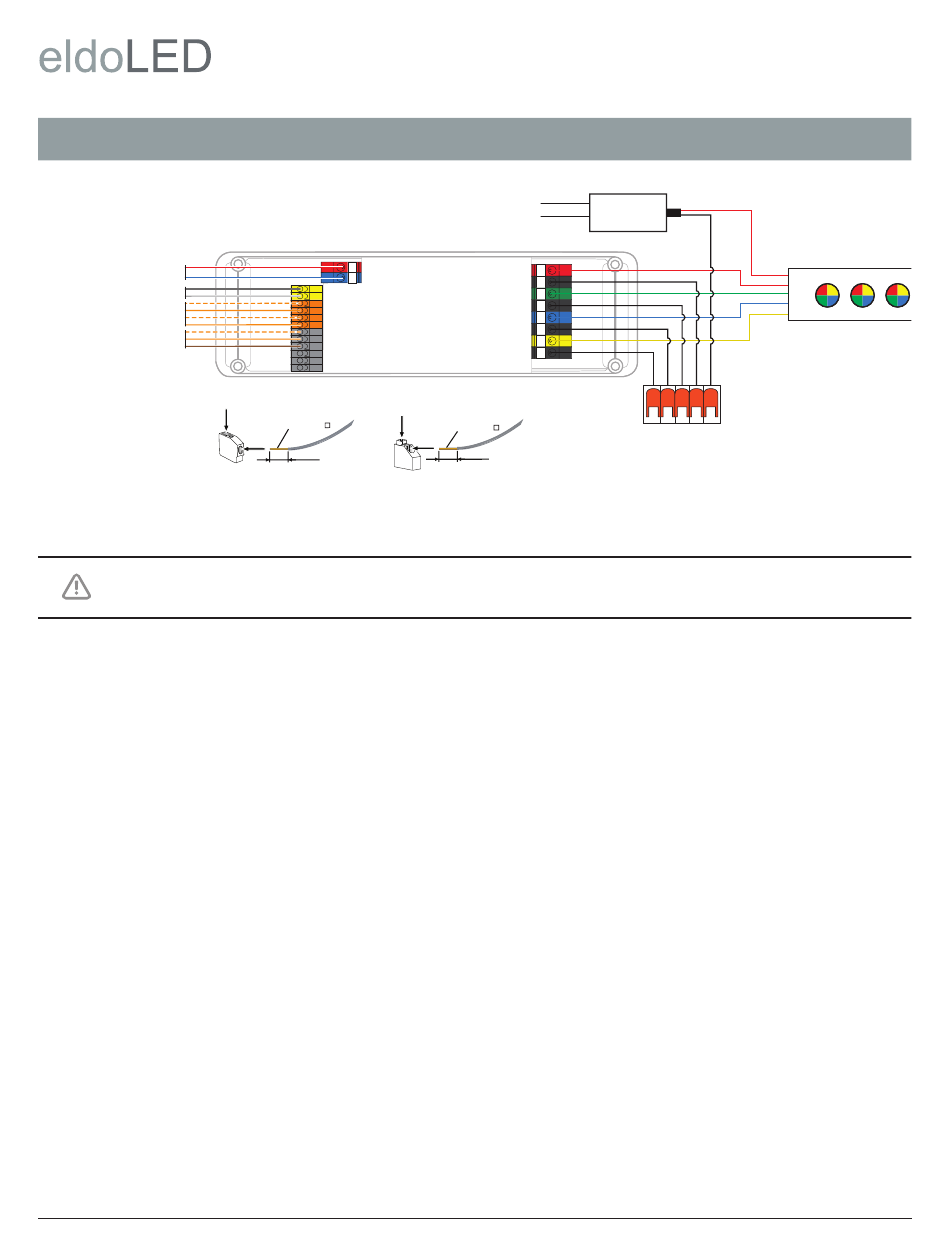

Wiring Diagram LINEARdrive 720D
12-48 VDC Supply Voltage for Driver
(can be connected to PSU)
External control device
DALI network
DMX
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and build-ing
codes must be observed. Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
12V - 48V DC In
These connectors supply power to the LINEARdrive control
and processing circuitry and must be connected. To connect
to a 12-48V DC power supply unit (PSU), connect the PSU's
positive voltage supply wire to the VDC+ connector and the
PSU's negative voltage supply wire to the VDC-connector. The
driver and LEDs can use the same PSU.
Ext In
You have the possibility to connect an external control device
(10kΩ potentiometer or show selection switch) to the driver's
Ext in+ and Ext in- connector. Configure the driver for use with
an external control device over the 3-button user interface.
DA+ / DA-
Use these connectors to connect the driver to a DALI network.
Always combine a DA+ and a DA- connector for either data
in-put or data output.
Rev 4-7-2022
LINEARdrive 720D
VDC IN +
VDC IN -
Ext in -
Ext in +
DA +
DA -
DA +
DA -
DMX in +
DMX in -
DMX in shield
VDC and LED connectors: Other connectors:
1
AWG 24-16
0.2-1.5 mm 2
2
9 mm
0.35 inch
The content of this document is subject to change without notice.
Line
Neutral
LED Group 1
Group 1 GND
LED Group 2
Group 2 GND
LED Group 3
Group 3 GND
LED Group 4
Group 4 GND
AWG 20-16
1
2
0.5-1.5 mm
2
9 mm
0.35 inch
DMX In / Out
Use these connectors when the driver is used in a DMX network.
For DMX in/out, connect the network cable's DMX+, DMX- and
DMX shielding wire (the orange/white, orange and brown wire
in a CAT5 cable) to the DMX in+, DMX in- and DMX in shield
connector respectively.
LED Groups
Indicates the location of the connectors for your LED groups.
R(ed) represents channel 1, G(reen) represents channel 2,
B(lue) represents channel 3 and W(hite) represents channel
4. The default group color allocation can be changed over the
3-button user interface.
(LIN720D3)
Pos (+)
PSU
Neg (-)
V+
R
G
B
W
Terminal Block
RGBW LED Strip
Page 1
