eldoLED LINEARdrive 180 Wiring Diagram

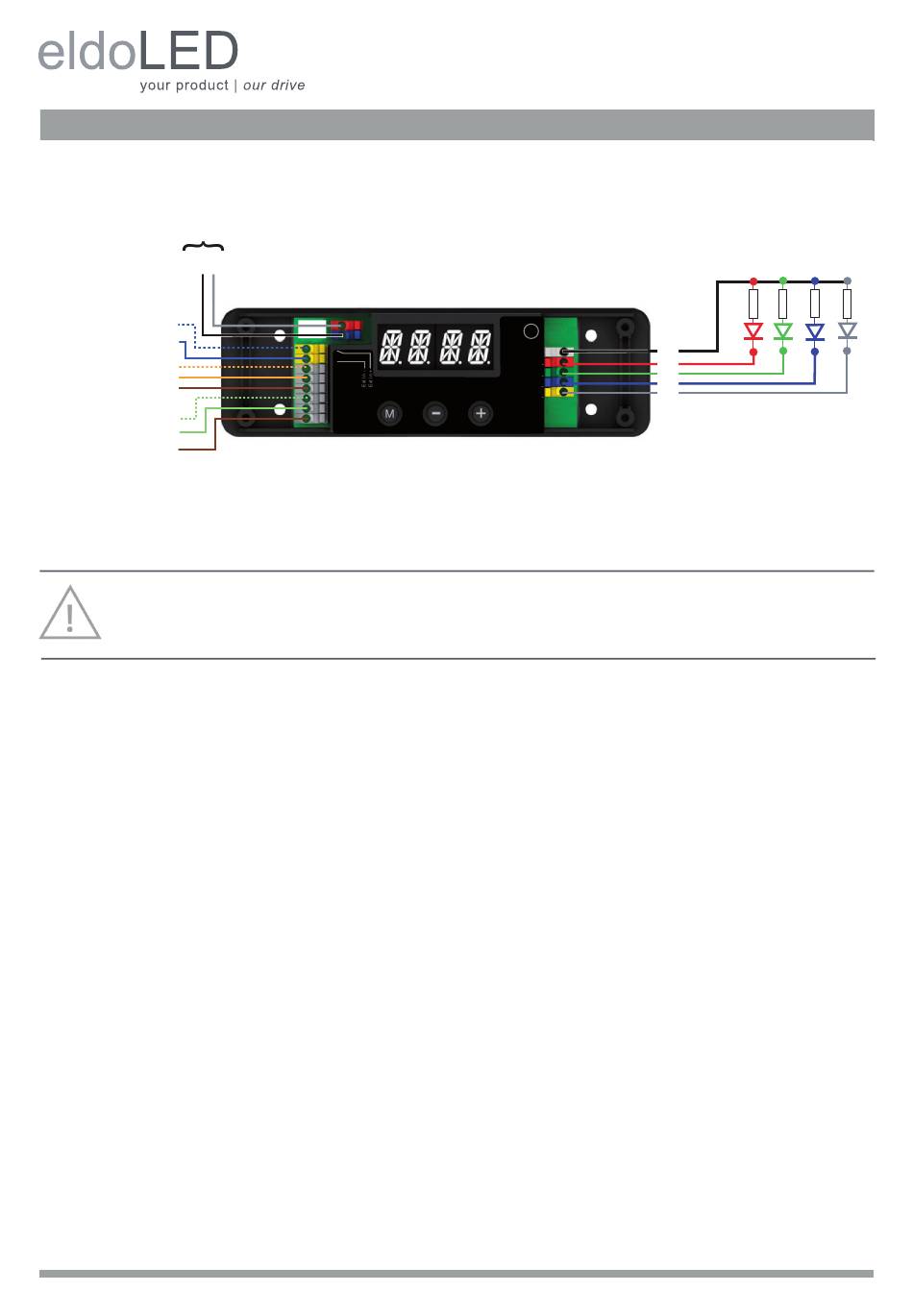

Wiring diagram LINEARdrive 180
12V-28V DC IN
VDC - VDC +
Ext in +
Ext in -
DMX in +
DMX in -
DMX in shield
LedSync thru +
LedSync thru -
LedSync thru shield
CAUTION: incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
Therefore, the device must only be connected and installed by a qualified electrician. All applicable regulations,
legislation and building codes must be observed!
12V - 28V DC IN
To connect the driver/controller to a DC power supply (PSU),
connect the PSU's positive voltage supply wire to the VDC+
connector and the PSU's negative voltage supply wire to the
VDC- connector.
EXT in (optional)
Connect an external control device (0...10V control device,
10kΩ potentiometer or show selection switch) to the driver/
controller by connecting the device's positive lead to the EXT
in+ connector and its negative lead to the EXT in- connector.
Configure the driver/controller for use with an external control
device over the 3-button user interface.
More information (datasheets, application notes, user manuals) and eldoLED's terms and conditions are available at www.eldoled.com.
Max | Vdc+
28V | Vdc-
DMX in +
DMX in -
LINEARdrive 180D
DMX in shield
12-28V / 6A Direct voltage controlled LED driver
LedSync thru +
LedSync thru -
LedSync shield
©
2010 eldoLED. All rights reserved.
TC
LED supply +
Group 1
Group 2
Group 3
Group 4
DMX in/LedSync thru (optional)
Use these connectors when the driver/controller is used in a
DMX network.
For data input, connect the network cable's data+, data- and
shielding wire (the orange/white, orange and brown wire in a
CAT5 cable) to the DMX in+, DMX in- and DMX in shield con-
nector respectively.
For data output, connect the network cable's data+, data- and
shielding wire (the orange/white, orange and brown wire in a
CAT5 cable) to the LedSync thru+, LedSync thru- and
LedSync shield connector respectively.
LED groups
Indicates the location of the connectors to which you
can connect your LED groups. R(ed) represents channel 1,
G(reen) represents channel 2, B(lue) represents channel 3
and W(hite) represents channel 4. The default group color al-
location can be changed over the 3-button user interface.
(LIN180D1)
LED groups
R R R
LED sup
R
G
B
W
R
