eldoLED LINEARdrive 720D Quick Start Manual

Quick Start Guide LINEARdrive 720D
Connecting and configuring LINEARdrive 720D
A
Removing the cover
12 -48VDC IN
-
Ext in +
Ext in -
DA +
DA -
DA +
DA -
DMX in +
DMX in -
DMX in shield
LedSync out +
LedSync out -
LedSync shield
LINEARdrive 180D
12-28V / 6A Direct voltage controlled LED driver
E
Fastening the strain reliefs
CAUTION: The device may only be connected and installed by a qualified electrician. All applicable regulations, legislation and building
codes must be observed. Incorrect installation of the device can cause irreparable damage to the device and the connected LEDs.
More product documentation and eldoLED's terms and conditions are available at www.eldoled.com.
All manuals and user guides at all-guides.com
VDC in: SELV equivalent
: 99% typ.
T a : -20°C to + 50°C
M 130
Tc : +65°C
B
Removing the strain reliefs
VDC and LED connectors:
1
AWG 24-16
0.2-1.5 mm 2
+
2
9 mm
0.35 inch
DA +
DA -
DA +
DA -

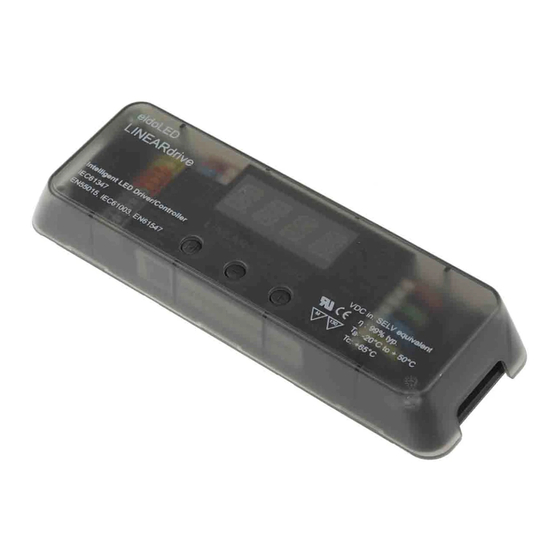

LINEARdrive 720D
DMX in +
12-28V / 24W Direct voltage controlled LED driver
DMX in -
DMX in shield
LedSync out +
LedSync out -
LedSync shield
D
Making the wire connections
F
Configuring the LINEARdrive
©
2016 eldoLED. All rights reserved. V4.1
LINEARdrive 180D
12-28V / 6A Direct voltage controlled LED driver
C
Other connectors:
AWG 20-16
1
2
0.5-1.5 mm
2
9 mm
0.35 inch
TC
Group 1
Group 1 GND
Group 2
Group 2 GND
Group 3
Group 3 GND
Group 4
Group 4 GND
(LIN720D3)
110 mm / 4.33" 21.5 mm / 0.85"
ø 4.2 mm / 0.17"
Mounting the LINEARdrive
LED groups
R R R R
G
Replacing the cover
10 mm / 0.39"
30 mm / 1.18"
Power
supply
VDC in: SELV equivalent
: 99% typ.
T a : -20°C to + 50°C
M 130
Tc : +65°C
