Constant current LEDs are to be wired in
SERIES
maximum number of fixtures connected to
a driver as indicated on the following page.
POWERING or TESTING less than the MINIMUM number
of fixtures per driver OR connecting fixtures with
the driver live OR wiring them in parallel will
IMMEDIATELY and PERMANENTLY DESTROY the LEDs.
Carefully read instructions prior to installation and testing.
STOP
and require a
MINIMUM
answers@inter-lux.com inter-lux.com
and
Advertisement
Table of Contents
Related Manuals for eldoLED POWERdrive 562/S

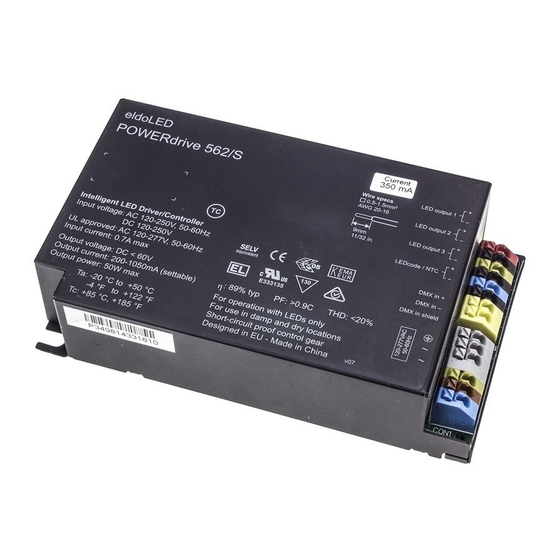

Summary of Contents for eldoLED POWERdrive 562/S
- Page 1 STOP Constant current LEDs are to be wired in SERIES MINIMUM and require a maximum number of fixtures connected to a driver as indicated on the following page. POWERING or TESTING less than the MINIMUM number of fixtures per driver OR connecting fixtures with the driver live OR wiring them in parallel will IMMEDIATELY and PERMANENTLY DESTROY the LEDs.
- Page 2 Constant Current drivers Wiring Key Points LEDs shall be wired in series as shown in wiring diagram. CAUTION: parallel wiring will damage LEDs. Wire shall be 18 awg stranded minimum. Large gauge wire shall be used to limit voltage drop in order to maintain the proper operating voltage. Take every precaution to avoid interferance from other electrical circuits and equipment.
- Page 3 Dry Location Enclosure Maximum Wiring Distance Guide* Wire Gauge Maximum Lead Length 72 ft (22 m) 118 ft (36 m) 150 ft (46 m) 200 ft (61 m) *Actual distance must be calculated by installer. Must comply with NEC code. 13.25"...
- Page 4 The NTC throttle temperature is programmable through the freely available FluxTool software (see “Configuring your driver over DMX in”). © 2014 eldoLED. All rights reserved. V1.1 More documentation and eldoLED’s terms and conditions are available at www.eldoled.com.
- Page 5 Wiring diagram POWERdrive 562/S, 562/A (PW0562S1, PW0562A1) Connecting 2 LED groups Connecting 1 LED group eldoLED B.V. Science Park Eindhoven 5125 5692 ED Son The Netherlands T +31 40 7820400 info@eldoled.com eldoLED America One Lithonia Way Conyers, GA30012 T +1 877 353 6533...
