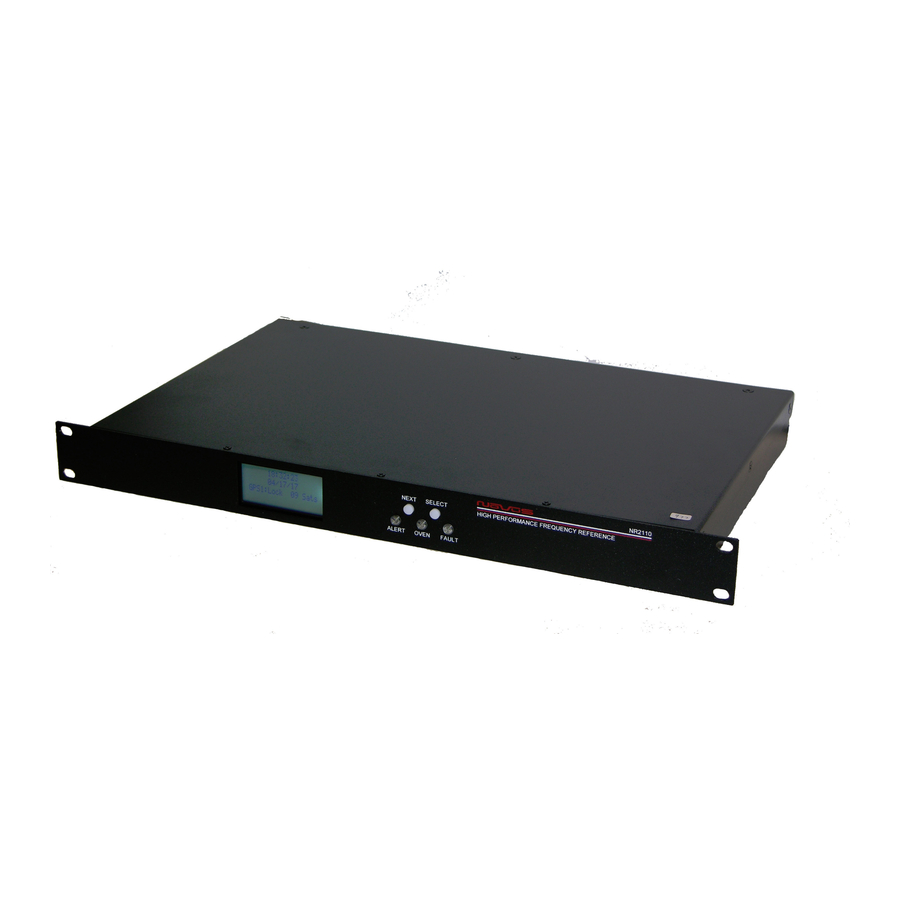

16 Channel Distribution Amplifier w/SNMP
All information provide herein is the property of Novus Power Products LLC The
information included may be reproduced without the permission of Novus Power
Products LLC for the purpose of operating the equipment.
Page #:
1 of 39
USERS MANUAL
REVISION
DATE
ND2316D
www.novuspower.com
ND2316D
A
091420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ND2316D and is the answer not in the manual?

Questions and answers

Related Manuals for Novus ND2316D

Summary of Contents for Novus ND2316D

  • Page 1 091420 ND2316D 16 Channel Distribution Amplifier w/SNMP All information provide herein is the property of Novus Power Products LLC The information included may be reproduced without the permission of Novus Power Products LLC for the purpose of operating the equipment.

  • Page 2: Table Of Contents

    USERS MANUAL ND2316D REVISION DATE 091420 Contents 1.0 Summary ......................3 2.0 Controls and Indicators – Front Panel ............. 5 2.1 Channel Status .................... 5 2.2 Status LEDs ....................7 2.3 Input Status ....................7 2.4 Power Supply Status ................... 8 2.6 Alert Threshold ....................
  • Page 3 DATE 091420 1.0 Summary The ND2316D is a ten channel wide bandwidth distribution amplifier. While primarily used for 10 MHz reference distribution, it has a functional bandwidth from 100kHz to 12 MHz but is filtered for the lowest phase noise 10MHz signal.
  • Page 4 USERS MANUAL ND2316D REVISION DATE 091420 The amplifier can also be optionally redundantly powered. The redundancy feature adds a second power supply which may be AC or DC. The dual input design monitors the input signals and selects the active signal or the prioritized signal.

  • Page 5: Controls And Indicators - Front Panel

    USERS MANUAL ND2316D REVISION DATE 091420 2.0 Controls and Indicators – Front Panel This section describes the functionality of the front panel controls and indicators. Two buttons above the status LEDs provide navigation through the menus. In general, the NEXT button advances through the menus to the next screen, while the SELECT button chooses between the available values on a menu.
  • Page 6 USERS MANUAL ND2316D REVISION DATE 091420 The channel status can be determined by reading the actual RMS value on the output of each stage. This is compared to a threshold limit that is set by the user as a percentage variation from a saved value. The default variation value is set at ±25% percent from the current state of the...

  • Page 7: Status Leds

    USERS MANUAL ND2316D REVISION DATE 091420 2.2 Status LEDs There are three status LEDs which provide a quick indication of valid unit operation. Alert LED: The alert LED will illuminate flashing red to indicate an input failure or a power supply failure. The alert LED will not flash red if any valid input signal is present.

  • Page 8: Power Supply Status

    USERS MANUAL ND2316D REVISION DATE 091420 2.4 Power Supply Status The power supply status screen provides DC voltage values of the two available power supply sources. The 90-250V AC input is internally connected to an internal 24V AC-DC convertor which powers the internal supplies with 24V.

  • Page 9: Alert Threshold

    USERS MANUAL ND2316D REVISION DATE 091420 Redundant power supplies operate on either the AC input or DC input, and function independently. All functionality and reporting for an individual power supply and amplifier is independent of its redundant copy. 2.6 Alert Threshold...
  • Page 10 USERS MANUAL ND2316D REVISION DATE 091420 Each channel has a reference voltage which can be set, all at once, by latching the channel’s current value in the latch channel average screen. Each channel’s reference voltage can be set individually by writing the value serially with the $SET command.
  • Page 11 USERS MANUAL ND2316D REVISION DATE 091420 The alert threshold can be optimized so that a channel short or an impedance change will cause an alert. Page #: 11 of 39 www.novuspower.com...
  • Page 12 USERS MANUAL ND2316D REVISION DATE 091420 Example: The output of channel 1 is connected to a high impedance input and reports 1.25Vrms at the output. The output of channel 2 is connected to a 50 Ohm terminated input, and reports 0.90Vrms at the output.

  • Page 13: Input Threshold

    USERS MANUAL ND2316D REVISION DATE 091420 2.7 Input Threshold The input threshold screen allows the user to monitor and set the threshold at which the input is regarded as invalid or faulted. The input threshold value is the absolute voltage (user programmable between 0.1Vrms and 1Vrms) below which the input fault will occur, and...

  • Page 14: Input Select

    USERS MANUAL ND2316D REVISION DATE 091420 2.8 Input Select The input select screen allows the user to monitor and select the input priority for inputs A and B. Pressing the SELECT button with advance through the following settings: Input A Select...

  • Page 15: Latch Channel Values

    USERS MANUAL ND2316D REVISION DATE 091420 2.9 Latch Channel Values The latch channel values screen allows the user to save the current channel output values for use as the reference value for alert settings. A channel alert is triggered when a channel output voltage exceeds or falls below a percentage of the reference value.

  • Page 16: Fault Status

    USERS MANUAL ND2316D REVISION DATE 091420 2.10 Fault Status The fault status screen allows a quick overview of any channel faults from the front panel. The total fault count is listed, as well as a visual flashing indication of any channels that are beyond the threshold values.

  • Page 17: Power Switch

    USERS MANUAL ND2316D REVISION DATE 091420 2.11 Power Switch The rear panel power switch controls AC power input to the unit. If the optional DC input is provided with 24V, or a valid DC supply, the unit will operate. If the unit is powered with the DC Option, the rear panel switch does not remove DC power.

  • Page 18: Rs232 Db9 Port

    USERS MANUAL ND2316D REVISION DATE 091420 2.12 RS232 DB9 Port The front panel RS232 port allows convenient setup of the unit in addition to the rear panel RS232 which may be connected to a more permanent instrumentation setup. The front panel RS232 port will respond to the same commands as the rear panel, and any changes made will be reported on both serial ports.

  • Page 19: Rear Panel

    USERS MANUAL ND2316D REVISION DATE 091420 3.0 Rear Panel 3.1 Channel Outputs - BNC There are ten outputs across the left hand side of the rear panel. They are labeled 1 through 10. Nominally the outputs are 50 Ohm impedance.

  • Page 20: 24Vdc Input

    USERS MANUAL ND2316D REVISION DATE 091420 3.4 24VDC Input The DC input connector is a 3 pin Amphenol circular connector, P/N DL3102A10SL-3P. The mating connector is available as P/N DL3106A10SL-3S. The default DC input voltage is 24Vdc. Custom voltage ranges can be provided from -60Vdc to +60Vdc.
  • Page 21 USERS MANUAL ND2316D REVISION DATE 091420 Function Command Port TX Command Port RX The default settings for the rear panel RS232 port are 115200 baud, 8 bits, 1 stop bit, no parity. Page #: 21 of 39 www.novuspower.com...

  • Page 22: Functional Description

    USERS MANUAL ND2316D REVISION DATE 091420 4.0 Functional Description Page #: 22 of 39 www.novuspower.com...

  • Page 23: Bandwidth

    USERS MANUAL ND2316D REVISION DATE 091420 4.1 Bandwidth 20 KHz to 10MHz. Gain flatness is ±2dB. The amplifier is available with output drive to DC. Though the unit operates well across wide bandwidth, filtering and design have been optimized to reduce phase noise at 10 MHz.

  • Page 24: Outputs

    USERS MANUAL ND2316D REVISION DATE 091420 4.3 Outputs Each output is fault and electrostatic discharge protected. Each output is independent, and any output can be faulted for an indefinite period of time with no permanent damage. Each output is connected to a monitor circuit that detects a local fault on the output.

  • Page 25: Programming Guide (Rs232 Port: Front And Rear)

    USERS MANUAL ND2316D REVISION DATE 091420 Also, in most applications, the equipment that surrounds this unit is sensitive and the filter also reduces noise that could impact the performance of other equipment. If the optional DC Power Option is installed, the unit can be powered from nominal 24 Vdc.
  • Page 26 USERS MANUAL ND2316D REVISION DATE 091420 The checksum can be required for all input commands, and the requirement for a checksum can be enabled or disabled (default setting is disabled). The checksum method is the two- hexadecimal character representation of an XOR of all characters in the sentence between, but not including, the $ and the * character.

  • Page 27: Rs232 Commands

    USERS MANUAL ND2316D REVISION DATE 091420 5.1 RS232 Commands Command Setting Response Description Query Baud Rate on rear panel RS232. (Default = $BAUDNV 115200). Front Panel is 115200 baud. RS232 REAR Assign Baud rate to Rear Panel RS232 port. Default PANEL BAUD $BAUDNV=<current Baud Rate>...
  • Page 28 USERS MANUAL ND2316D REVISION DATE 091420 Setting Command Response Description $SET<nn>=n.nn Set or query the Reference Voltage for a perticular channel with respect to the active input. Use in combination with the Channel Fault Threshold Factor to define Alert on an individual Channel.
  • Page 29 USERS MANUAL ND2316D REVISION DATE 091420 Setting Command Response Description $CAL<n>=nn.nn Query or set Cal Factors for specific ADC conversions. See list of Cal Factors numbered for CAL FACTORS $CAL<n>=nn.nn appropriate measurement parameters. These $CAL1=11.10 settings should only be changed by an authorized technician.

  • Page 30: Status String ($Gpnvs,1) Channel Measurements

    USERS MANUAL ND2316D REVISION DATE 091420 5.2 Status String ($GPNVS,1) Channel Measurements $GPNVS 1 n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn * # Description Range 1. Identifier $GPNVS 2. String ID 0.00 – 3.30 [V] 3. Channel 1 Vrms 0.00 –...

  • Page 31: Status String ($Gpnvs,2) Power Supply Measurements

    USERS MANUAL ND2316D REVISION DATE 091420 5.3 Status String ($GPNVS,2) Power Supply Measurements $GPNVS 2 n.nn n.nn n.nn n.nn n.nn n.nn n.nn ±nnC # Description Range 1. Identifier $GPNVS 2. String ID 3. 24V AC/DC Internal 0.00 to 36.0 [V] 4.

  • Page 32: Status String ($Gpnvs,3) Status Bytes

    USERS MANUAL ND2316D REVISION DATE 091420 5.4 Status String ($GPNVS,3) Status Bytes $GPNVS 3 0 A 0 0x0000 0x00 0x00 0x00 0x0000 0x0000 0x0000 2 3 4 # Description Range 1. Identifier $GPNVS 2. String ID 3. Active PCB Assembly 0 or 1 4.

  • Page 33: Status Byte Key

    USERS MANUAL ND2316D REVISION DATE 091420 5.5 Status Byte Key Hex Value (OR'd) Channel ID Channel Status Word 0x1<<0 Channel 1 Fault 0x1<<1 Channel 2 Fault 0x1<<2 Channel 3 Fault 0x1<<3 Channel 4 Fault 0x1<<4 Channel 5 Fault 0x1<<5 Channel 6 Fault 0x1<<6...
  • Page 34 USERS MANUAL ND2316D REVISION DATE 091420 Hex Value (OR'd) Channel ID Primary PCB Amp Status 0x1<<0 Channel 1 Fault 0x1<<1 Channel 2 Fault 0x1<<2 Channel 3 Fault Internal Fault Primary 0x1<<3 Channel 4 Fault Assembly: The channel 0x1<<4 Channel 5 Fault has failed an internal 0x1<<5...
  • Page 35 USERS MANUAL ND2316D REVISION DATE 091420 Hex Value (OR'd) Status Message 0x1<<0 8V(-) PS out of range 0x1<<1 Reserved Primary and 0x1<<2 Reserved Secondary 0x1<<3 8V(+) PS out of range Power Supply 0x1<<4 5V PS out of range Status 0x1<<5 Communication Failure 0x1<<6...

  • Page 36: Calibration Factors

    USERS MANUAL ND2316D REVISION DATE 091420 5.6 Calibration Factors Calibration Default Description Value CAL00 24Vdc Input Adjust 11.30 CAL01 AC/DC 24V Adjust 11.10 CAL02 Input A Vrms Adjust 2.85 CAL03 Input B Vrms Adjust 2.72 CAL04 Reserved 0.00 CAL05 Reserved 0.00...

  • Page 37: Technical Specifications

    USERS MANUAL ND2316D REVISION DATE 091420 6.0 Specifications 6.1 Technical Specifications Linear amplifier bandwidth 20KHz to 15MHz ±2db, 1.5 Vrms max (option to DC available) Bandwidth limited for 10 MHz reference applications. Factory configurable Impedance 50 Ohm channel status, system status - front panel display – serial port...

  • Page 38: Limited Hardware Warranty

    1 (one) year to be free from defects caused by faulty materials or poor workmanship, provided: (a) NOVUS is notified in writing by Buyer of such defect prior to the expiration of the warranty period, and (b) after receiving return material authorization (RMA) from NOVUS, the defective item is returned with transportation prepaid to NOVUS, Independence, Missouri, with transportation charges prepaid by Buyer …see RMA policy in Terms and Conditions, and...
  • Page 39 OF SUCH CLAIMS OR DAMAGES. LIMITATION OF REMEDIES: REGARDLESS OF WHETHER ANY REMEDY SET FORTH HEREIN FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL NOVUS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES...
  • Page 40 $GPNVS Appendix C: $GPNVS Status String Definitions All information provide herein is the proprietary property of Novus Power Products L.L.C. The information included may be reproduced without the permission of Novus Power Products L.L.C. with out prior approval for purpose of operating the equipment.
  • Page 41 Users manual $GPNVS Revision #: Date: 8/25/20 Contents 1.0 The $GPNVS Serial Status String ................3 1.1 Status String ($GPNVS,1) Fault Bytes ..............4 1.2 Status String ($GPNVS,2) Channel Values 1-8 ............5 1.3 Status String ($GPNVS,3) Power Supply Values............. 6 1.4 Status String ($GPNVS,4) Channel Values 9-16 .............

  • Page 42: The $Gpnvs Serial Status String

    Date: 8/25/20 1.0 The $GPNVS Serial Status String Novus products provide, in many cases, serial data output from a standard GNSS receiver matching the NMEA 0183 protocol. This is usually a direct connection to the receiver. In addition to NMEA, Novus Products which provide an additional RS232 serial port for status monitoring, will be set up to meet the following protocols.

  • Page 43: Status String ($Gpnvs,1) Fault Bytes

    Users manual $GPNVS Revision #: Date: 8/25/20 1.1 Status String ($GPNVS,1) Fault Bytes $GPNVS 1 hhmmss mmddyy A A nn nn 0x0000 0x00 0x00 * XX 12 13 # Description Range 1. Identifier $GPNVS 2. String ID 3. Time (UTC) hhmmss 4.
  • Page 44 Users manual $GPNVS Revision #: Date: 8/25/20 1.2 Status String ($GPNVS,2) Channel Values 1-8 $GPNVS 2 hhmmss ddmmyy n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn * XX # Description Range 1. Identifier $GPNVS 2. String ID 3. Time (UTC) hhmmss 4.

  • Page 45: Status String ($Gpnvs,3) Power Supply Values

    Users manual $GPNVS Revision #: Date: 8/25/20 1.3 Status String ($GPNVS,3) Power Supply Values $GPNVS 3 hhmmss ddmmyy n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn nn * XX 13 14 # Description Range 1. Identifier $GPNVS 2. String ID 3.
  • Page 46 Users manual $GPNVS Revision #: Date: 8/25/20 1.4 Status String ($GPNVS,4) Channel Values 9-16 $GPNVS 4 hhmmss ddmmyy n.nn n.nn n.nn n.nn n.nn n.nn n.nn n.nn * XX # Description Range 1. Identifier $GPNVS 2. String ID 3. Time (UTC) hhmmss 4.

  • Page 47: Status String ($Gpnvs,5) Sensors

    Users manual $GPNVS Revision #: Date: 8/25/20 1.5 Status String ($GPNVS,5) Sensors $GPNVS 5 hhmmss ddmmyy nnn ±nn * XX # Description Range 1. Identifier $GPNVS 2. String ID 3. Time (UTC) hhmmss 4. Date mmddyy 5. Potentiometer Hex Value 000 to FFF 6.

  • Page 48: Status String ($Gpnvs,6) Status Bytes

    Users manual $GPNVS Revision #: Date: 8/25/20 1.6 Status String ($GPNVS,6) Status Bytes There are two different Status Strings; one for everything except the NR2304 and one for the NR2304. 1.6.1 Status String ($GPNVS,6) Status Bytes; Standard $GPNVS 6 0 A 0 0x0000 0x00 0x00 0x00...

  • Page 49: Status String ($Gpnvs,6) Status Bytes; Rubidium

    Users manual $GPNVS Revision #: Date: 8/25/20 1.6.2 Status String ($GPNVS,6) Status Bytes; Rubidium $GPNVS nnn 0x0000 nnn # Description Range 1. Identifier $GPNVS 2. String ID 3. Heat Sink Temperature 0-255 4. Heater Current Voltage 0x0000-0x0136 5. Measured Voltage in Heater 0-255 6.

  • Page 50: Status String ($Gpnvs,7) Status Bytes

    Users manual $GPNVS Revision #: Date: 8/25/20 1.7 Status String ($GPNVS,7) Status Bytes $GPNVS 7 nnnnnn nnnnnn A nn 0x00 nnnnnn n.nn n.nn # Description Range 1. Identifier $GPNVS 2. String ID 3. Time hhmmss 4. Date mmddyy “A” = Valid, “V” = Not Valid 5.

  • Page 51: Event String ($Gpnvs,8) Event Status

    Users manual $GPNVS Revision #: Date: 8/25/20 1.8 Event String ($GPNVS,8) Event Status $GPNVS nnnnnn # Description Range 1. Identifier $GPNVS 2. String ID 3. Discipline Counter 0 = Off, 1 = Disciplined to Synthetic PPS 4. User Enabled 0 = Off, 1 = On 5.

  • Page 52: Status String ($Gpnvs,9) Frequency Measurement

    Users manual $GPNVS Revision #: Date: 8/25/20 1.9 Status String ($GPNVS,9) Frequency Measurement The frequency measurement string has two versions, one standard version, and one for the NR6720. 1.9.1 Standard Frequency Measurement String $GPNVS hhmmss ddmmyy (n)nnnnnnn.nnn (-)nn # Description Range 1.

  • Page 53: Nr6720-Hs Frequency Measurement String

    Users manual $GPNVS Revision #: Date: 8/25/20 1.9.2 NR6720-HS Frequency Measurement String $GPNVS nnnnnnn.nnn n.nnnnn nnnnnnnn.nn ±n.nn ±n.nn * # Description Range 1. Identifier $GPNVS 2. String ID 3. Frequency (Loop Period) 10000000.000 4. DAC Voltage (Double) 2.00000 5. Frequency (per second) 10000000.0 6.

  • Page 54: Pps Alignment String ($Gpnvs,10) Pps Status

    Users manual $GPNVS Revision #: Date: 8/25/20 1.10 PPS Alignment String ($GPNVS,10) PPS Status $GPNVS 10 ±n ±n ±n # Description Range 1. Identifier $GPNVS 2. String ID 3. PPS Stability Enabled 0 = Off, 1 = On 4. PPS Disciplining to GPS 0 = Off, 1 = Actively Synchronized 5.

  • Page 55: Pps Alignment String ($Gpnvs,9) Pps Status

    Users manual $GPNVS Revision #: Date: 8/25/20 1.12 PPS Alignment String ($GPNVS,9) PPS Status $GPNVS nnn 0x0000 nnn # Description Range 8. Identifier $GPNVS 9. String ID 10. Heat Sink Temperature 0-255 11. Heater Current Voltage 0x0000-0x0136 12. Measured Voltage in Heater 0-255 13.

  • Page 56: Response String ($Gpnvs,R)

    Users manual $GPNVS Revision #: Date: 8/25/20 1.11 Response String ($GPNVS,R) $GPNVS R n <response> * XX # Description Range 1. Identifier $GPNVS 2. Response ID 3. Command Success 1 = Success, 0 = Fail 4. Response <see example responses> *XX (xor’d value of bytes between $ and *) 5.

  • Page 57: Discipline Selection String ($Gpnvs,13)

    Users manual $GPNVS Revision #: Date: 8/25/20 1.12 Discipline Selection String ($GPNVS,13) $GPNVS, # Description Range 1. Identifier $GPNVS 2. String ID 3. Priority Discipline Source 0 = GNSS, 1 = 10MHz input, 2 = Optical input 4. Current Discipline Source 0 = GNSS, 1 = 10MHz, 2 = Optical, 3 = Holdover 5.

  • Page 58: Combined Nmea/Status Rs232

    Users manual $GPNVS Revision #: Date: 8/25/20 2.0 Combined NMEA/Status RS232 NR2110-OG Combined NMEA?Status Port 2.1 Status String ($GPNVS,1) Fault Bytes $GPNVS 1 hhmmss mmddyy nn 0x00 0x00 0x00 * XX # Description Range 15. Identifier $GPNVS 16. String ID 17.

  • Page 59: Status String ($Gpnvs,2) Channel Values

    Users manual $GPNVS Revision #: Date: 8/25/20 2.2 Status String ($GPNVS,2) Channel Values $GPNVS 1 hhmmss mmddyy n.nn n.nn n.nn n.nn n.nn n.nn * XX # Description Range 14. Identifier $GPNVS 15. String ID 16. Time (UTC) hhmmss 17. Date mmddyy 18.

  • Page 60: Status String ($Gpnvs,3) Power Supply Values

    Users manual $GPNVS Revision #: Date: 8/25/20 2.3 Status String ($GPNVS,3) Power Supply Values $GPNVS 3 hhmmss mmddyy n.nn n.nn n.nn n.nn n.nn # Description Range 15. Identifier $GPNVS 16. String ID 17. Time (UTC) hhmmss 18. Date mmddyy 19. -5Vdc Power Supply(opt) -30.0 to 30.0 [V] 20.

  • Page 61: Status Byte Key

    Users manual $GPNVS Revision #: Date: 8/25/20 3.0 Status Byte Key Hex Value (OR'd) Channel ID Channel Status Word 0x1<<0 Channel 1 Fault 0x1<<1 Channel 2 Fault 0x1<<2 Channel 3 Fault 0x1<<3 Channel 4 Fault 0x1<<4 Channel 5 Fault 0x1<<5 Channel 6 Fault 0x1<<6 Channel 7 Fault...
  • Page 62 Users manual $GPNVS Revision #: Date: 8/25/20 Hex Value (OR'd) Channel ID Primary PCB Amp Status 0x1<<0 Channel 1 Fault 0x1<<1 Channel 2 Fault 0x1<<2 Channel 3 Fault Internal Fault Primary 0x1<<3 Channel 4 Fault Assembly: The channel 0x1<<4 Channel 5 Fault has failed an internal 0x1<<5 Channel 6 Fault...
  • Page 63 Users manual $GPNVS Revision #: Date: 8/25/20 Hex Value (OR'd) Status Message 0x1<<0 Flash Read Boot Error (Deprecated) 0x1<<1 Potentiometer Read/Set Fail 0x1<<2 Reserved Active Board 0x1<<3 Reserved Status 0x1<<4 PCB Assembly Input A/B Select Fail 0x1<<5 Reserved 0x1<<6 Reserved 0x1<<7 Reserved Hex Value (OR'd)
