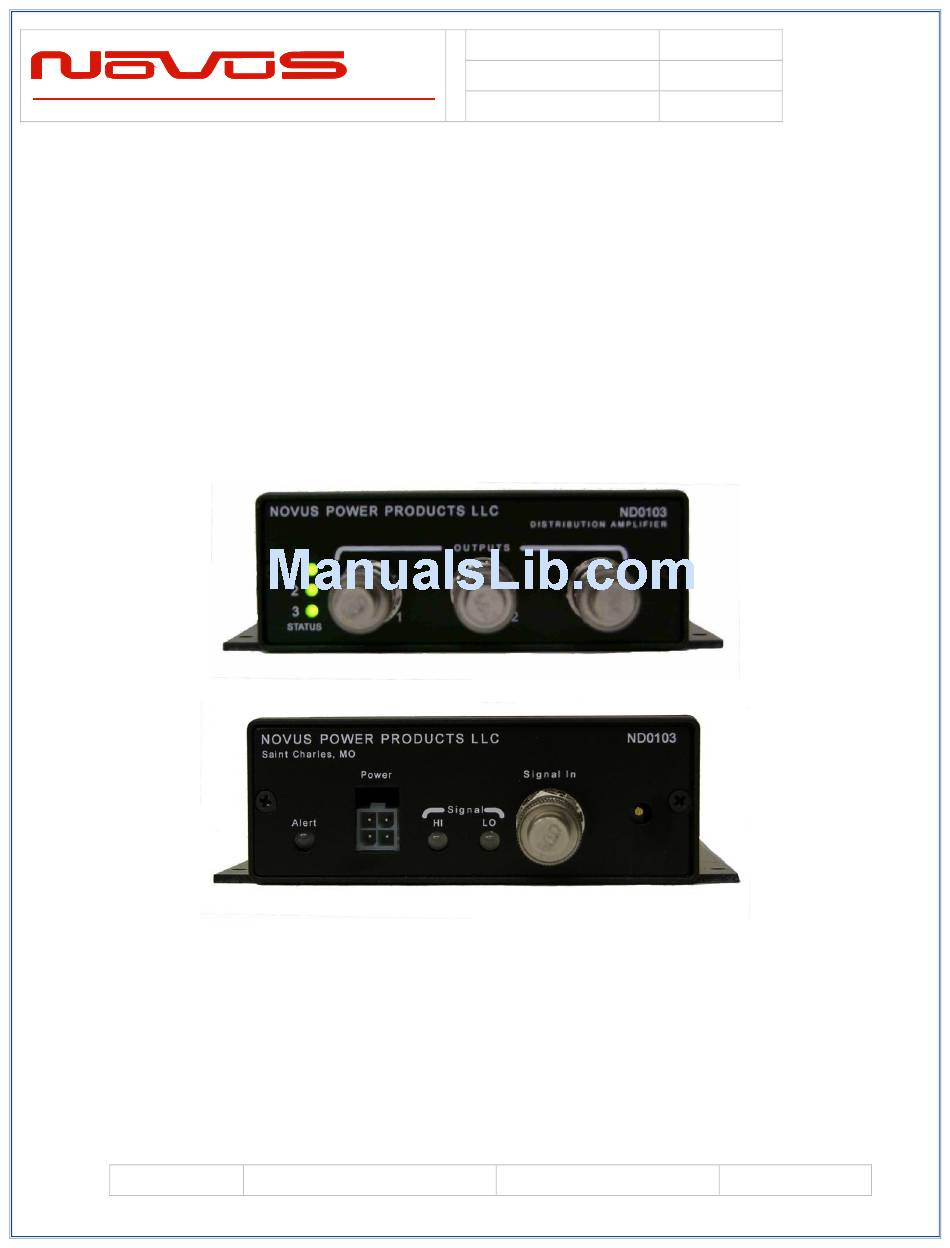

Users Manual
3 Channel Distribution Amplifier
All information provide herein is the proprietary property of Novus Power Products
L.L.C. The information included may be reproduced without the permission of Novus
Power Products L.L.C. with out prior approval for purpose of operating the equipment.
Page #:
1 of 11
Users manual
Revision #:
Date:
Model ND0103
www.novuspower.com
ND0103
C
8/1/16
Advertisement
Table of Contents
Related Manuals for Novus ND0103
Summary of Contents for Novus ND0103
- Page 1 Model ND0103 3 Channel Distribution Amplifier All information provide herein is the proprietary property of Novus Power Products L.L.C. The information included may be reproduced without the permission of Novus Power Products L.L.C. with out prior approval for purpose of operating the equipment.
-
Page 2: Table Of Contents
Users manual ND0103 Revision #: Date: 8/1/16 Table of Contents: 1.0 Summary 2.0 Controls and Indicators 2.1 Channel Status 2.2 Alert 2.3 HI,LOW 3.0 Rear Panel 3.1 Channel outputs 3.2 Alert relay 3.3 Power Connector 4.0 Functional Description 4.1 Bandwidth 4.2 Outputs... -
Page 3: Summary
8/1/16 1.0 Summary The ND0103 is a 3 Channel wide bandwidth distribution amplifier. When used with a reference signal, the user will have available 3 channels of the reference to be routed as required. All inputs and outputs are electrostatic discharge protected. Any output can be shorted indefinitely with no permanent damage to the unit. -
Page 4: Controls And Indicators
Users manual ND0103 Revision #: Date: 8/1/16 2.0 Controls and Indicators 2.1 Channel Status There are three LEDs on the front panel. Under normal conditions the LED is green. If a channel is locally faulted the indicator will turn red. This is not considered a system fault and the status relay will remain closed. -
Page 5: Rear Panel
Users manual ND0103 Revision #: Date: 8/1/16 3.0 Rear Panel 3.1 Status The status signal is available from lower two pins on the power connector. This connects to the alert relay and the relay contacts are rated at 20VDC or AC 0.5 amps. -
Page 6: Functional Description
Users manual ND0103 Revision #: Date: 8/1/16 4.0 Functional Description Signal Level Low Noise Power Converter Monitor Signal In Signal Protection Monitor Built In Test Monitor Alert 4.1 Bandwidth The bandwidth extends from DC to 10 MHz with gain variation of less than ±2dB. -
Page 7: Power Supplies
Users manual ND0103 Revision #: Date: 8/1/16 4.5 Power Supplies The standard unit is designed to operate from a nominal 12 vdc. However the unit can be operated from 110 vac to 250vac and/or -60 to +60 VDC. A power adapter is available that provides 12 VDC from standard AC power. -
Page 8: Mechanical
Users manual ND0103 Revision #: Date: 8/1/16 6.0 Mechanical Bottom View 6.002 .500 .501 4.95 4.12 4.61 3.63 2.55 6.00 1.44 .497 Page #: 8 of 11 www.novuspower.com... -
Page 9: Technical Specification
Users manual ND0103 Revision #: Date: 8/1/16 7.0 Technical Specification Bandwidth DC to 10MHz ±2dB, (bandwidth restricted for reference applications) Channel status, System 3 channel status, system status Rear panel connectors 3 output, Signal in and system status BNC, AC power in Hi ≈... - Page 10 Should Novus be unable to repair or replace the product within a reasonable amount of time, the customer’s alternate remedy shall be a refund of the purchase price upon return of the product to Novus. The liability of NOVUS under this warranty is limited to replacing, repairing or issuing a credit, at its option, for any such item returned by Buyer under the terms of this warranty.
- Page 11 CLAIMS OR DAMAGES. LIMITATION OF REMEDIES: REGARDLESS OF WHETHER ANY REMEDY SET FORTH HEREIN FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL NOVUS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES, INCLUDING, WITHOUT LIMITATION, DAMAGES...
