Bogen MAX1R Manual
Mono aux input module
Hide thumbs
Also See for MAX1R:
- Manual (2 pages) ,
- Quick start manual (2 pages) ,
- Information (13 pages)
Advertisement
Quick Links
Features
•
Gain/Trim control
•
Bass and treble
•
Audio Gating with threshold and duration adjustments
•
Variable signal ducking when muted or gated
•
Fade back from mute level
•
4 levels of available priority
•
Can be muted from higher priority modules
•
Can mute lower priority modules

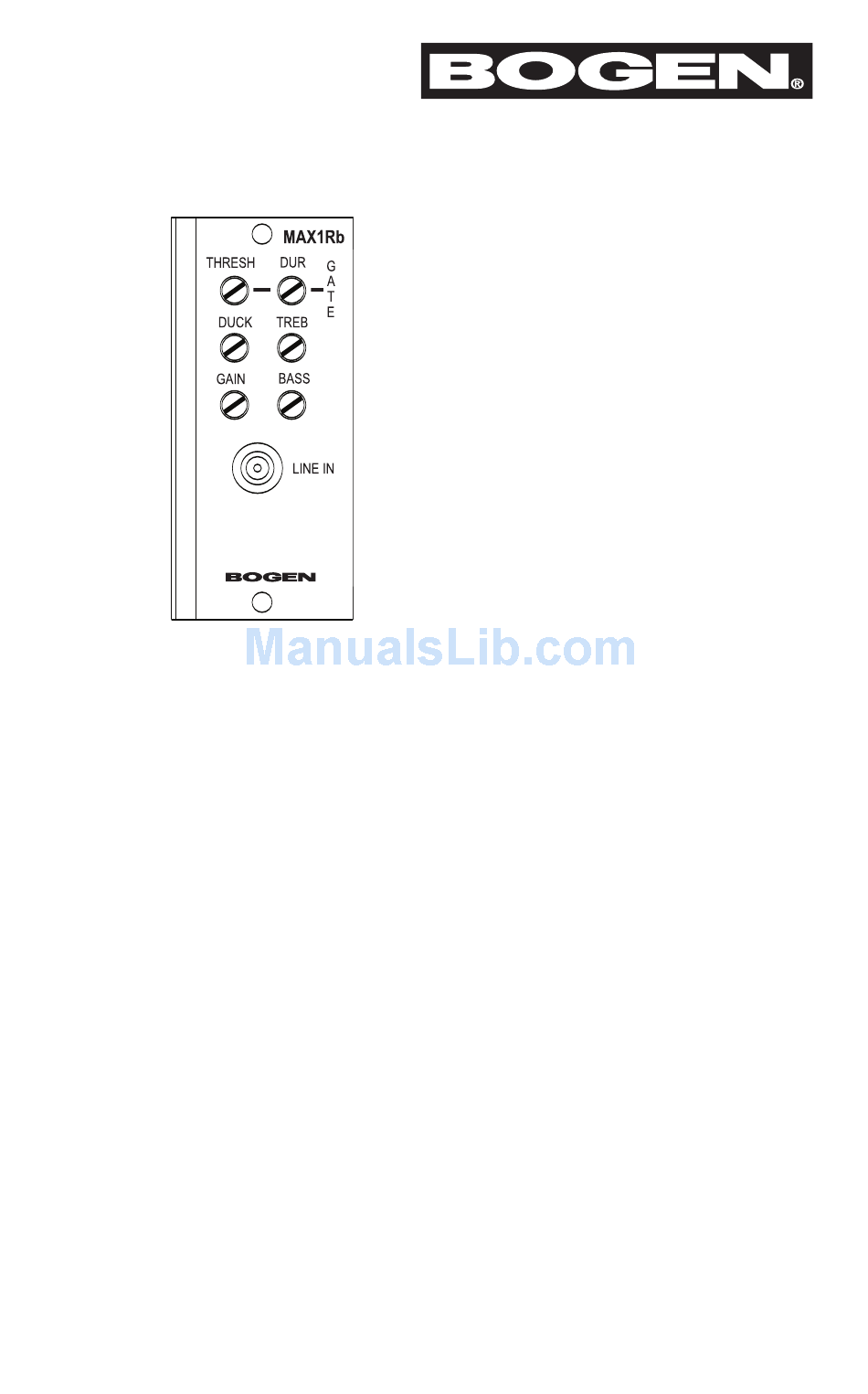

MAX1R
Mono Aux Input
Module
Printed in Korea.
© 2005 Bogen Communications, Inc.
54-2053-01B
Specifications subject to change without notice.
0505
Advertisement
Related Manuals for Bogen MAX1R
Summary of Contents for Bogen MAX1R
- Page 1 Mono Aux Input Module Features • Gain/Trim control • Bass and treble • Audio Gating with threshold and duration adjustments • Variable signal ducking when muted or gated • Fade back from mute level • 4 levels of available priority •...
- Page 2 Uses a standard RCA connector to make connections to the module’s input. internal signal buses of the main unit. Allows a way to balance the input lev- The inputs are quasi-balanced to reduce the chance of ground loops while still els of various devices so that the main unit controls can be set to relative- being compatible with unbalanced signal sources.
- Page 3 Block Diagram 50 Spring Street, Ramsey, NJ 07446 U.S.A. 201-934-8500; Fax: 201-934-9832 www.bogen.com...
