DS-KD8103-E6
D Series Door Station
UD19918B
E N G L I S H

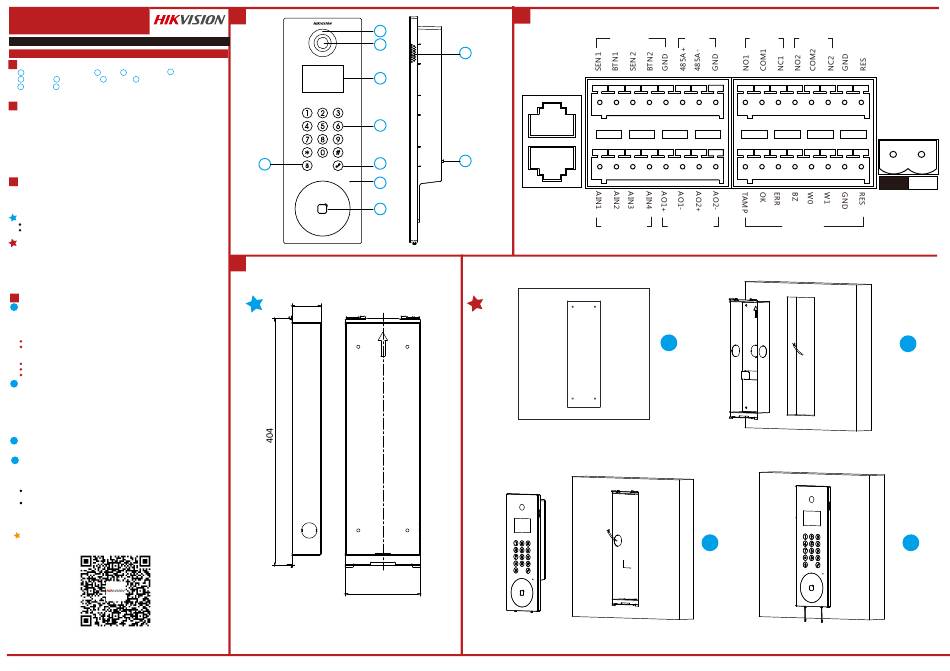

Diagram References

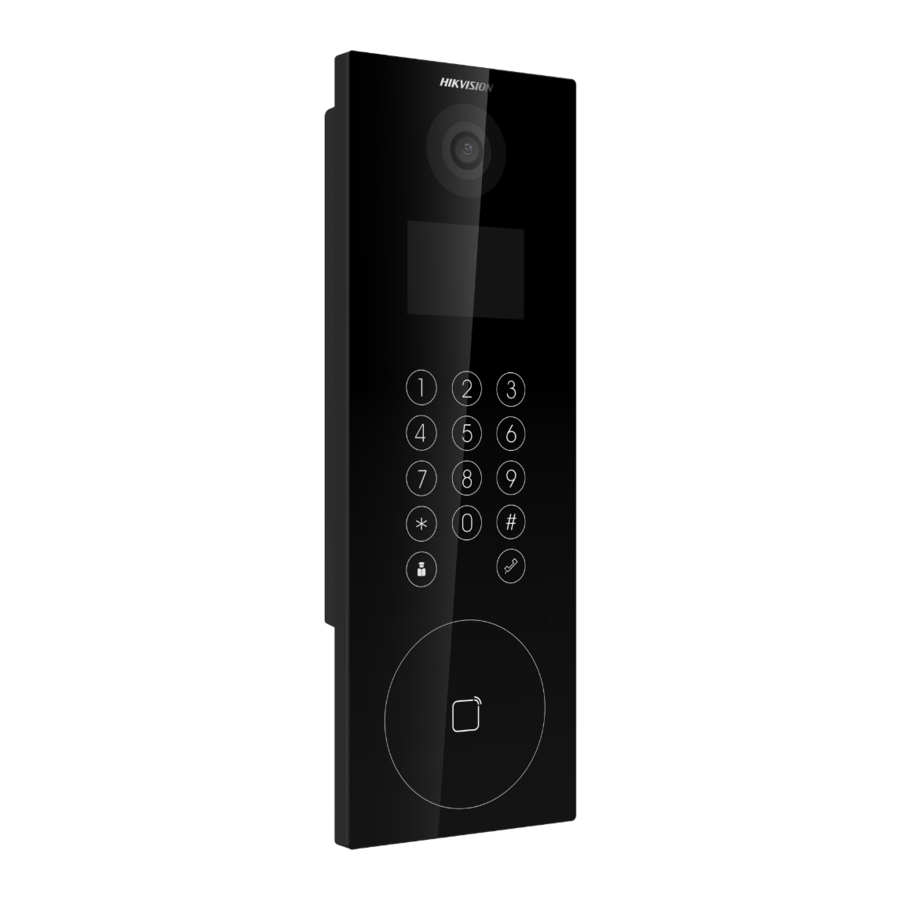

Appearance
1
1
2
3
4
Keypad
Low Illumination Supplement Light
Camera
LCD Display Screen
5
6
7
8
Call Button
Call Center Button
Microphone
Card Reading Area
9
Loudspeaker
10
TAMPER
Note: The appearance of the device vary according to different model. Refers to the actual device.
Terminal
2
DC 12 V: Power Supply Input
485A-: RS-485 Communication Terminal
AO1+/AO1- : Alarm Relay Output 1
485A+: RS-485 Communication Terminal
AO2+/AO2- : Alarm Relay Output 2
TAMP: Wiegand Card Reader TAMPER
NC1/NC2: Door Lock Relay Output (NC)
OK: Card Reader Indicator Output (Valid)
ERR: Card Reader Indicator Output (Invaild)
NO1/NO2: Door Lock Relay Output (NO)
COM1/COM2: Common Interface
BZ: Card Reader Buzzer Output
W0: Data Input Interface Wiegand Card Reader
AIN1/AIN2/AIN3/AIN4: Alarm Input
BTN1/BTN2: Door Contact Detection Input/Exit Button
W1: Data Input Interface Wiegand Card Reader
RES: Reserved
SEN1/SEN2: Door Contact Detection Input/Door Contact
GND: Grounding
Note: Wiring description refers to the User Manual.
Installation
3
Before you begin:
1. Accessories that you need to prepare for installation: gang box and mounting template.
2. Make sure the power supply meet the power requirements of the door station (12 VDC, 1 A).
3. Make sure all the related equipment is power-off during the installation.
4. Wire the cables before installation.
Accessory
The dimension of the gang box is: 404 mm(W) × 123 mm(H) × 47.5 mm(D).
The installation hole should be larger than gang box. The suggested dimension of the installation hole
is 404.5 mm(W) × 123.5 mm(H) × 48 mm(D).
Flush Mounting
1. Drill an installation hole on the wall.
Note: The size of the hole should be larger than that of the gang box. The suggested dimension of the
installation hole is 404.5 mm(W) × 123.5 mm(H) × 48 mm(D).
2. Insert the gang box into the hole and fix it with 4 PA4 screws. Make sure the edges of the gang box
align to the wall. Route the cables of the door station through the cable hole.
3. Pull the door station downward and then push it towards the inside to make sure it fits the hole.
4. Tighten the screws of the door station with the Allen wrench.
Configuration
4
Activate Device
1
You are required to activate the device first by setting a strong password for it before you can use the device.
1. Power on the device to enter the activation page automatically.
2. Create a password and confirm it.
3. Press # to activate the door station.
Note:
Enter an 8 to 16 characters admin password.
When entering the password, taking the numeric key 2 as example, press the numeric key 2 once, the text
field shows "2", and press it again in 1.5 s, the text field shows "a", and press it again in 1.5 s, the text field
shows "b", and so on.
Hold 0 to enter special characters.
Press # to confirm the password.
Press * to delete the password during entering.
Call Resident
2
The door station can work as main/sub door station, and outer door station, which correspond to different
calling resident modes respectively.
Call from Main/Sub Door Station
Press number button to enter the calling page.
Enter the room No. and press call button again to call.
Call from Outer Door Station
Press number button to enter the calling page.
Enter【Building No. + # + Unit No. + # + Room No.】 and press call button to call resident.
Call Center
3
Press number button to enter the calling page.
Press center button to call. Press * to cancel during calling management center.
Unlock Door
4
The device support unlock the door by presenting card, entering password, and fingerprint. Here
takes unlock by entering password and unlock by presenting card for example.
Note: You should create the password and add the card to the device first.
Unlock by Entering Password
Common Password
Press number button, enter【# + room No. + password + #】 to unlock the door.
Public Password
Note: Create the public password via iVMS-4200 Client Software remotely first.
Press number button, enter【# + public password + #】 to unlock the door.
Unlock by Presenting Card
Present the card on the card reading area to unlock the door.
Refer to Video Intercom D Series Door Station User Manual (scan the QR code) for details.
1
1
2
3
4
6
5
7
8
3
47.5
123
Unit : mm
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
2
ALARM IN
9
RESERVED
10
LAN
ALARM IN
RS485
LOCK1
LOCK2
ALARM OUT
WIEGAND
1
3
12 VDC
GND
POWER
2
4
