Summary of Contents for Rasilient AI72

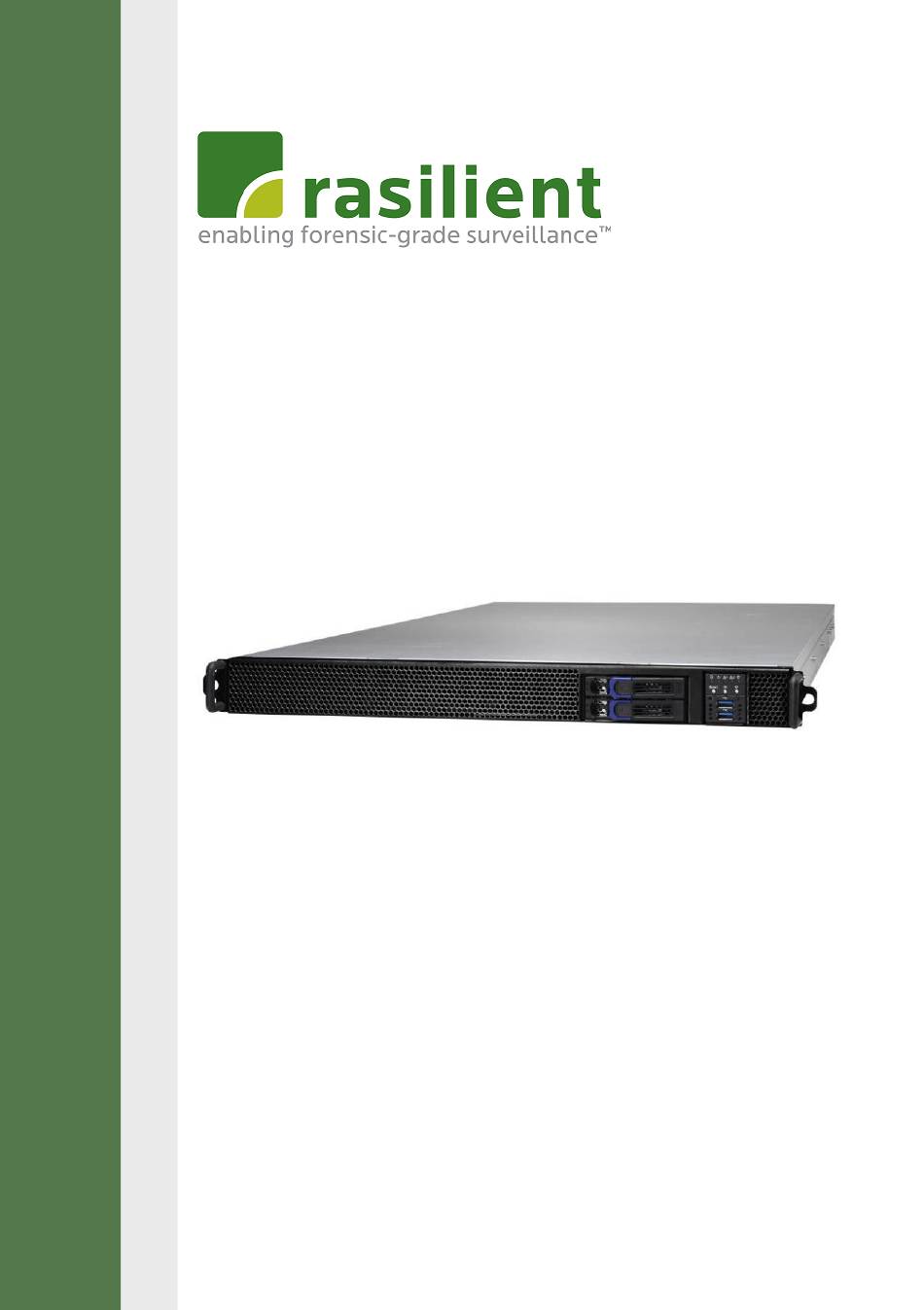

  • Page 1 AI72 User Manual...
  • Page 2: Table Of Contents

    About this Guide ......................12 Packing Checklist ......................12 Specifications ........................13 Chapter 1: Overview ......................14 About the AI72 ......................14 System Front View ......................15 System Rear View ......................16 System Internal View ..................... 17 Rack Mounting........................20 Installing the Server in a Rack ..................
  • Page 3 Copyright Notice All rights, including copyright, in the content of this manual are owned or controlled by RASILIENT and protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of RASILIENT Systems, Inc.
  • Page 4 FCC Declaration Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: ‧This device may not cause harmful interference.
  • Page 5 Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CAUTION Lithium battery included with this board. Do not puncture, mutilate, or dispose of battery in fire. There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer.
  • Page 6: About This Manual

    About This Manual Conventions To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. Provides Information to prevent injury in the process Warning: of completing a task. Provides Information to prevent damage to the Caution: components in the process of completing a task.
  • Page 7: Safety Symbols

    Safety Symbols The following symbols are placed on some components of the system to alert the user to potential hazards, WARNING: Electric Shock Hazard – To reduce risk of injury from electric shock hazards, do not open this component. WARNING: Contains No User or Field Serviceable Parts – To reduce the risk of injury from electric shock hazards, do not open this component.
  • Page 8: Safety Precautions

    Safety Precautions Technician Notes  Only authorized technicians should attempt to repair this equipment.  Before installing this system, carefully read all the manuals included with the system.  All repair procedures allow only module replacement. Because of the complexity of the individual boards and sub-assemblies, no one should attempt to make repairs at the component level or make modifications to any printed wiring board.
  • Page 9 System Warnings  Avoid dust, humidity, and extreme temperatures; place the system on a stable surface.  To reduce the risk of personal injury from hot surfaces, allow the hot- plug disk modules and other system modules to cool before touching them.
  • Page 10: Regulatory And Integration Information

    Regulatory and Integration Information FCC Declaration Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: ‧This device may not cause harmful interference.
  • Page 11: Safety: En/Iec 60950-1

    Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. CAUTION Lithium battery included with this board. Do not puncture, mutilate, or dispose of battery in fire. There will be danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by manufacturer.
  • Page 12: Introduction

    Chapter 1 Introduction Audience Assumptions About This Guide Packing Checklist Specifications System Overview...
  • Page 13: Audience Assumptions

    General introduction to the AI72 and its components. Packing Checklist Make sure you have all the components shipped with your system. If any item is damaged or missing, please contact your sales representative for replacement. The AI72 is shipped with the following: Chassis...
  • Page 14: Specifications

    Specifications The table below is the technical specification for the AI72. Table 1: AI72 Specification Height: 1.7" / 43.5mm Dimensions Width: 17.4" / 438mm Depth: 34.5" / 885mm Weight Max-weight: 58.5 lbs/26.5 kg ±5% Operating System: +10ºC~+35ºC Temperature Non-operating System: -40ºC~+70ºC...
  • Page 15: Chapter 1: Overview

    Chapter 1: Overview About the AI72 The AI72R is optimized for Analytic/Machine Learning Video Surveillance applications. The AI72R comes fully integrated and tested with industry leading video analytic software, offering a turnkey platform for Artificial Intelligence, Machine learning and Heuristic Analytic applications.
  • Page 16: System Front View

    The following views show you the product. System Front View Table 2: Front Panel Board Switch and LED Indication State LED Color Behavior Power/ ID Power On Green System Power On / Green Solid On System Power Off Power Off / Green Off ID free Blue ID Located / Green off &...
  • Page 17: System Rear View

    System Rear View Description Type-A USB3.0 Ports 1Gb RJ45 LAN dedicated for BMC/IPMI) 10Gb RJ45 LAN from Intel X550-AT2 (LAN2) 10Gb RJ45 LAN from Intel X550-AT2 (LAN1) VGA Port (1)+(1) 1600W RPSU GPU Card Slot PCI-E Gen3 x16 Slot, support low profile add-on card...
  • Page 18: System Internal View

    System Internal View System Fans CPU and Memory Socket PCIE Riser Card Power Supply Cage Riser Card (FH/FL/DW PCI-E Gen.3 x16 slot) Riser Card (FH/FL/DW PCI-E Gen.3 x16 slot)
  • Page 19 Activity LED Status LED Description Color: Green Color: Amber No Driver Present or power disconnected Solid On Drive present, no activity Blinking Drive present, with activity Do not care Solid On HDD Fail Do not care Blinking @1Hz Drive Locate Identify Do not care Blinking @4Hz Rebuilding...
  • Page 20 Chapter 2 Rack Mounting...
  • Page 21: Rack Mounting

    Rack Mounting The AI72 can be mounted in a rack using the supplied rack mounting kit. Installing the Server in a Rack Follow these instructions to mount the AI72 into an industry standard 19" rack. Installing the inner Rails to the Chassis Release and detach the inner rail from the sliding rail.
  • Page 22: Installing The Outer Rails To The Rack

    Pull the inner sliding rail forward to secure it to the chassis. Installing the Outer Rails to the Rack Secure the outer rails to the rack.
  • Page 23: Rack Mounting The Server

    Rack mounting the Server Lift the unit and then insert the inner slide rails into the middle rails. Push the whole system into the rack.
  • Page 24 Chapter 3 Replacing Components...
  • Page 25: Replacing The System Components

    Replacing the System Components Replacing System Fans 1. AI72 is equipped with ten system fans which can be repacked if needed. 2. Disconnect the fan cable. 3. Lift the fan which you need to replace a new one.
  • Page 26: Replacing The Power Supply

    Replacing the Power Supply To replace the power supply follow these instructions. Press the tab as shown in the diagram and pull out the power. Free the power from the power socket. Replace a new single power and reinsert it into the power socket following the above steps in reverse.
  • Page 28 Chapter 4 Connecting External Devices...
  • Page 29: Connecting External Devices

    Connecting External Devices The AI72 supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. USB3.0 Port LAN3 (IPMI) VGA Port LAN2 (X550) LAN1(X550) NOTE: Peripheral devices can be plugged straight into any of these ports but software may be required to complete the installation.
  • Page 30 1Gbps LAN Port LAN Indication 10/100/1000 Mbps LAN Link/Activity LED Scheme Left LED Right LED (Link/Activity) (Speed) No Link Solid Green Link 10 Mbps Blinking Green Active Solid Green Solid Green Link 100 Mbps Blinking Green Solid Green Active Solid Green Solid Amber 1000 Mbps Link...
