- Page 1 AI68 Video Analytics Tower User Manual AI68 User Manual version 1.1...
- Page 2 Copyright Notice All rights, including copyright, in the content of this manual are owned or controlled by RASILIENT and protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of RASILIENT Systems, Inc.
-
Page 3: Table Of Contents
System Overview ....................... 15 Powerful ..........................16 Complete solution ......................17 SSD Drives ........................17 Optimized ........................... 17 System Specification ......................18 Component Identification;....................21 Motherboard rear I/O ......................21 Front I/O ..........................22 Power Supply ........................23 AI68 User Manual version 1.1... - Page 4 List of Figures Figure 1: AI68 ............................ 16 Figure 2: AI68 Rear IO ........................21 Figure 3: AI68 Front IO ........................22 Figure 4: AI68 PSU ..........................23 Figure 5: AI68 RTX2080 IO ....................... 24 Figure 6: QRTX4000 (4 DP) ......................25...
- Page 5 List of Tables Table 1: European Union Safety requirements .................. 11 Table 2: Packing Checklst ......................... 13 Table 3: Specifications ........................14 Table 4: System Specification ......................18 AI68 User Manual version 1.1...
-
Page 6: About This Manual
About This Manual Conventions Safety Symbols Safety Precautions Regulatory and Integration Information AI68 User Manual version 1.1... - Page 7 WARNING: This symbol, on power supplies or systems, indicates that the equipment is supplied by multiple sources of power. To reduce the risk of injury from electric shock, remove all power cords to completely power down the system. AI68 User Manual version 1.1...
-
Page 8: Safety Precautions
Ensure the power cord is inserted into a grounded electrical outlet that is easily accessible at all times. Unplug the power cord from the power supply module to shut off power to the equipment Protect the storage system from power fluctuations and temporary power interruptions with a AI68 User Manual version 1.1... - Page 9 Route power cords so that they will not be walked on or pinched by items placed upon or against them. Pay particular attention to the plug, electrical outlet, and the point where the cords exit from the product. AI68 User Manual version 1.1...
-
Page 10: Regulatory And Integration Information
FCC logo or FCC ID on the label. Class B devices have an FCC logo or FCC ID on the label. Once the class of the device is determined, refer to the following corresponding statement. Class A Equipment This equipment has been assembled with components that comply with the limits for a Class A AI68 User Manual version 1.1... -
Page 11: Power Cords
1.00mm² or 18AWG, and the length of the cords must be between 1.8m (6 feet) and 3.6m (12 feet). If you have questions about the type of power cord to use, contact your sales representative. AI68 User Manual version 1.1... -
Page 12: Introduction
Chapter 1 Introduction Audience Assumptions About This Guide Packing Checklist Specifications System Overview AI68 User Manual version 1.1... -
Page 13: Table 2: Packing Checklst
About this Guide AI68 comes with appropriate hardware installed. User only needs to configure IP addresses, install appropriate VMS software to administer and view the cameras. This manual is generally organized as... -
Page 14: Specifications
Specifications The table below is the technical specification for the AI68. Table 3: Specifications Height: 22" / 560mm Dimensions Width: 9.13" / 232mm Depth: 22" / 560mm Weight Max-weight: 40 lbs / 18 kg ±5% ... -
Page 15: System Overview

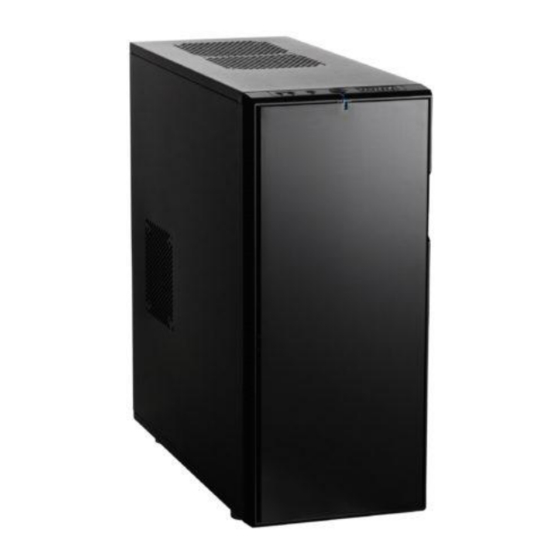

System Overview The AI68 Video Analytics Server The AI68T is optimized for Analytic/Machine Learning Video Surveillance applications. The AI68T comes fully integrated and tested with industry leading video analytic software, offering a turnkey platform for Artificial Intelligence, Machine learning and Heuristic Analytic applications. -
Page 16: Powerful
Multiple CPU and GPU configurations available to create the most efficient and cost-effective analytics solutions. The AI68T offers high performance and bandwidth connectivity to meet the requirements of the most demanding video analytics requirements. The AI68T comes standard with two GbE ports for LAN connectivity. AI68 User Manual version 1.1... -
Page 17: Complete Solution
Complete solution Rasilient provides a complete physical security solution. We offer all necessary components, including high performance recording, analytics servers, viewing/monitoring and administration servers, and our high performance storage products for a complete solution. We provide the right solutions for small to the large video surveillance deployments. -
Page 18: System Specification
1x VGA. Additional based on GPU cards Onboard graphics Aspeed AST2500 I/O Ports 6 x USB 3.0 ports (2 front and 4 rear) 2 x USB 2.0 port (front) 1 x VGA (D-sub) Compliance PSU Safety US/Canada (UL1950-CSA950) AI68 User Manual version 1.1... - Page 19 100/220V AC Watts 1200 Watts Operating Environment Designed for 24x7x365 Operation Operation temperature 10℃ ~ 35℃ Non operation -40℃ ~ 70℃ temperature Humidity: 20% ~ 90% ( Non condensing) Operating altitude 0 to 10,000’/0 to 3000m AI68 User Manual version 1.1...
- Page 20 Chapter 2 AI68 Component Identification AI68 User Manual version 1.1...
-
Page 21: Component Identification
2 Component Identification; Motherboard rear I/O Following diagram shows the location of all the rear I/O modules on AI68T motherboard. Figure 2: AI68 Rear IO AI68 User Manual version 1.1... -
Page 22: Front I/O
Front I/O AI68 Front I/O are as shown below: Figure 3: AI68 Front IO AI68 User Manual version 1.1... -
Page 23: Power Supply
Power supply is located in the rear of the case. The switch and power plug is shown in the figure below: Figure 4: AI68 PSU Graphics I/Os AI68 Supports seven Graphics Adapters. Following diagram shows the graphic ports available from each graphics adapter: AI68 User Manual version 1.1... -
Page 24: Figure 5: Ai68 Rtx2080 Io
Figure 5: AI68 RTX2080 IO AI68 User Manual version 1.1... -
Page 25: Figure 6: Qrtx4000 (4 Dp)
Figure 6: QRTX4000 (4 DP) AI68 User Manual version 1.1... - Page 26 AI68 User Manual version 1.1...
