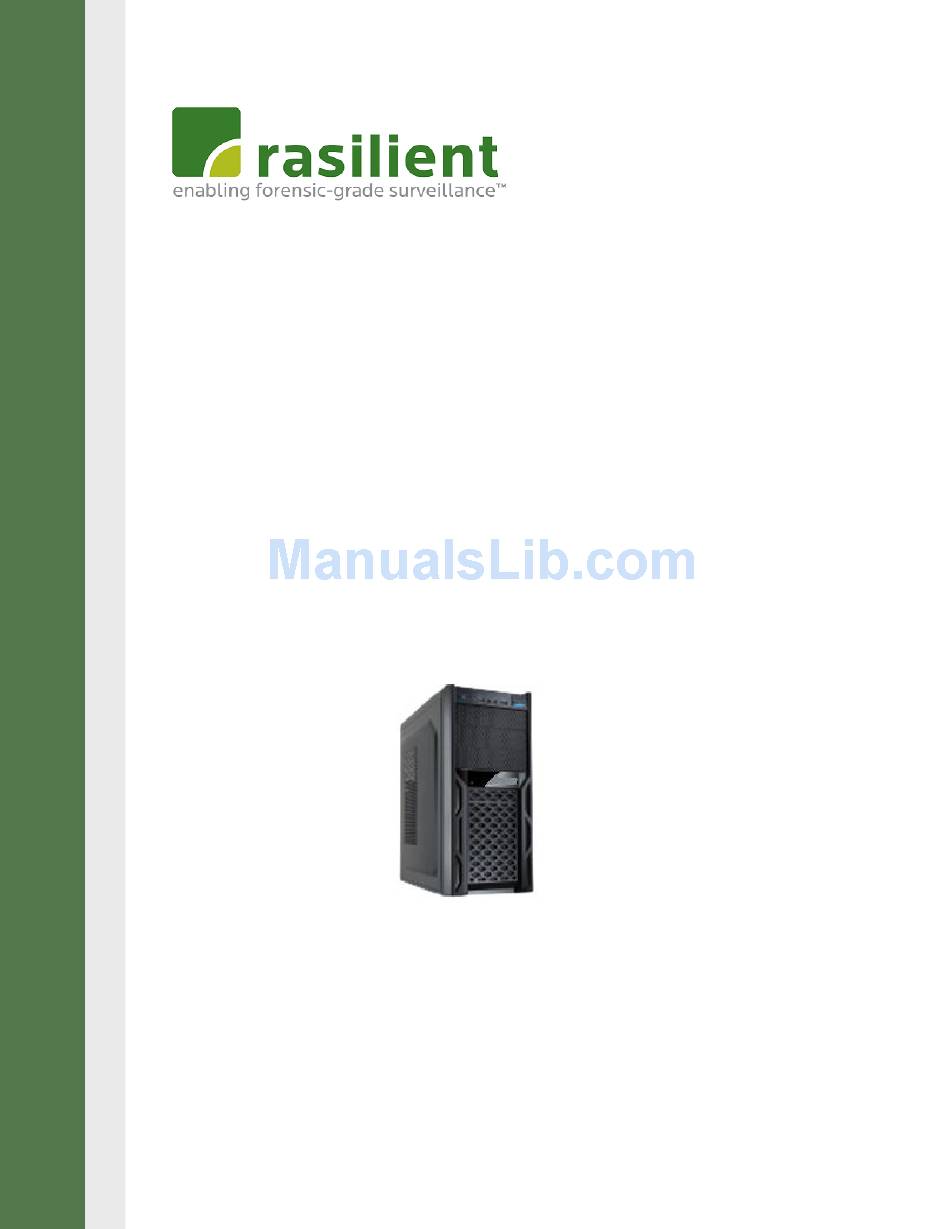

- Page 1 ApplianceStor AS63T Video Viewing and Administrative Appliance User Manual...
-
Page 2: Copyright Notice
All rights, including copyright, in the content of this manual are owned or controlled by RASILIENT and protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of RASILIENT Systems, Inc. -
Page 3: Table Of Contents
Contents About This Manual ..........................2 Conventions ............................2 Safety Symbols ........................... 3 Safety Precautions..........................4 Regulatory and Integration Information ....................6 Regulatory Compliance Identification Numbers ................6 Product Regulatory Compliance ..................... 6 Power Cords ........................... 8 Introduction ..........................1-1 Audience Assumptions ...................... - Page 4 List of Figures Figure 1 -1: AS63 .......................... 1-4 Figure 2 -1:AS63 Motherboard Rear I/O ..................2-8 Figure 2 -2: AS63 Front I/O ......................2-9...
- Page 5 List of Tables Table i European Union Safety Requirements ................7 Table 1 -1 Introduction of the Manual ..................1-1 Table 1 -2 Packing Checklist ...................... 1-1 Table 1 -3 Specifications ......................1-2...
-
Page 6: About This Manual
About This Manual Conventions Safety Symbols Safety Precautions Regulatory and Integration Information... - Page 7 About This Manual Conventions To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. Provides Information to prevent injury in the process of completing a Warning: task. Provides Information to prevent damage to the components in the Caution: process of completing a task.
-
Page 8: Safety Symbols
Safety Symbols The following symbols are placed on some components of the system to alert the user to potential hazards, WARNING: Electric Shock Hazard – To reduce risk of injury from electric shock hazards, do not open this component. WARNING: Contains No User or Field Serviceable Parts – To reduce the risk of injury from electric shock hazards, do not open this component. -
Page 9: Safety Precautions
Safety Precautions Technician Notes Only authorized technicians should attempt to repair this equipment. Before installing this system, carefully read all the manuals included with the system. All repair procedures allow only module replacement. Because of the complexity of the individual boards and sub-assemblies, no one should attempt to make repairs at the component level or make modifications to any printed wiring board. - Page 10 To reduce the risk of electric shock or damage to the equipment, do not disable the power cord grounding plug. The grounding plug is an important safety feature. Ensure the power cord is inserted into a grounded electrical outlet that is easily accessible at all times.
-
Page 11: Regulatory And Integration Information
Regulatory and Integration Information Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, this system is assigned a serial number. This system serial number can be found on the product label, along with the required approval markings and information. When requesting certification information for this product, always refer to this serial number. - Page 12 digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 13: Power Cords
Power Cords The power cord set included in the system meets the requirements for use in the country where the system was purchased. If this system is to be used in another country, contact your sales representative to purchase a power cord that is approved for use in that country. The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. -
Page 14: Introduction
Chapter 1 Introduction Audience Assumptions About This Guide Packing Checklist Specifications System Overview... - Page 15 1 Introduction 1.1 Audience Assumptions This manual assumes that you are a service technician or network administrator familiar with computer hardware, data storage and network administration terminology and tasks. 1.2 About this Guide AS63 comes with appropriate hardware installed. User only needs to configure IP addresses, install appropriate VMS software to administer and view the cameras.
-
Page 16: Specifications
1.4 Specifications The table below is the technical specification for the AS63. Table 1 -3 Specifications Height: 16.7" / 425mm Dimensions Width: 7.8" / 198mm Depth: 19.1" / 485mm Weight Max-weight: 25 lbs / 11.3 kg ±5% ... -
Page 17: System Overview
1.5 System Overview The ApplianceStor 63 Tower Video Viewing Appliance offers a high performance standalone video viewing, monitoring and administration appliance that is cost effective. It supports monitors with 8K resolution and 3D display. It offers standard HDMI, Display Port, VGA and DVI video ports (three usable). -
Page 18: Powerful
Figure 1 -1: AS63 1.6 Powerful The AS63T is a high performance server appliance, built around Intel® Xeon E3-1245 v5 quad-core eight thread server class processors with up to 3.9GHz clock speed and 8GB of 2133 MHz DDR4 ECC memory. The AS63Toffers high performance and bandwidth connectivity to meet the requirements of the most demanding megapixel camera viewing and administration SOC environments. -
Page 19: Complete Solution
1.7 Complete solution Rasilient provides a complete physical security solution. We offer all necessary components, including high performance recording, viewing/monitoring and administration servers, and our high performance storage products for a complete solution. We provide the right solutions for small to the large video surveillance deployments. There is no longer a need to worry if your VMS and cameras will work on your storage server. -
Page 20: System Specification
1.10 System Specification Core Technology CPU Type Intel Skylake Xeon E3-1245v5 3.5GHz Socket LGA1151 Core Logic Intel® 236 Chipset Bench Mark/Clock speed 10291/3.50GHz Memory size Memory type DDR4 2133 ECC DIMM Expansion Expansion Slot : Slot Type: 1 x PCIe 3.0/2.0 x16 (x16/x8) 1 x PCIe 3.0/2.0 x16 (x8 mode) (switched from x16) 1 x PCIe 3.0/2.0 x16 (x4 mode) 1 x PCIe 3.0/2.0 x16 (x4 mode) - Page 21 Europe (CE, EN55022 compliance to EU Directive 89/366/EEC) US (FCC, CFR47 Part 15, Class A) Europe (CE, EN55022 & EN55024) Physical Characteristics Dimensions (in /mm) 7.8" x 16.7" x 19.1" 198(W) x 425(H) x 485(D) Weight 25lbs./11.3 Power Single Voltage 110/220V AC Watts Up to 600...
-
Page 22: Component Identification
2 Component Identification; Motherboard rear I/O Following diagram shows the location of all the rear I/O modules on AS63 motherboard. Figure 2 -1:AS63 Motherboard Rear I/O AS63 User Manual... -
Page 23: Front I/O
2.2 Front I/O AS63 Front I/O are as shown below: Figure 2 -2: AS63 Front I/O AS63 User Manual... -
Page 24: Power Supply
2.3 Power Supply Power supply is located in the rear of the case. The switch and power plug is shown in the figure below: 2.4 Graphics I/Os AS63 Supports two Graphics Adapters. Following diagram shows the graphic ports available from each graphics adapter: AS63 User Manual 2-10... - Page 25 AS63 User Manual 2-11...
