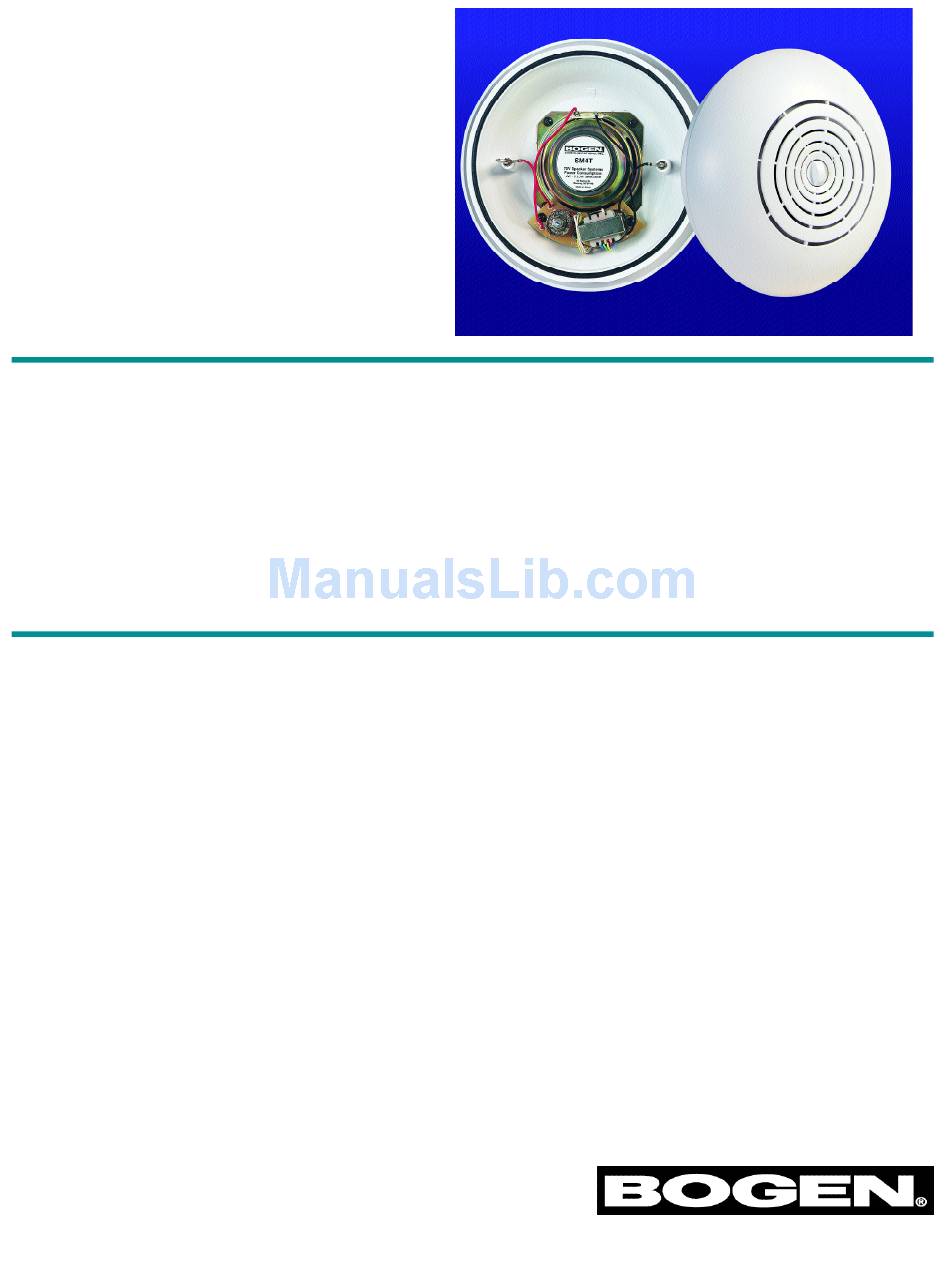

Bogen SM1EZ Technical Specifications

Easy Install
Speaker
Models SM1EZ, SM4T

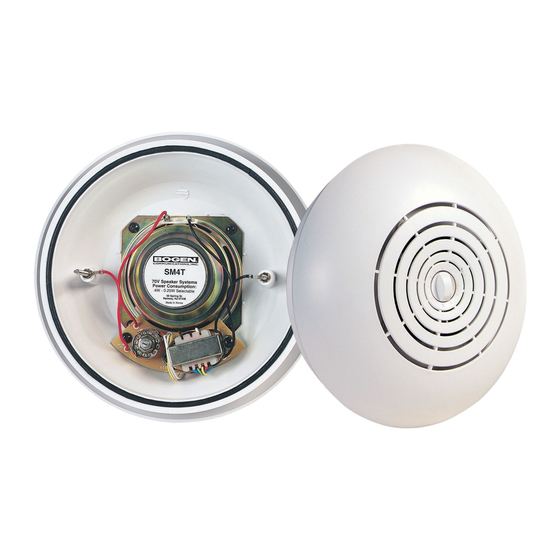

The Bogen SM1EZ and SM4T Easy Install
cally install in less than a minute. Installation is a simple, three-step process that does not require
Description
tools. First, two specially-designed studs pierce the ceiling tile. Second, two custom-designed wing
nuts secure the speaker to the ceiling. Third, standard wire nuts make the electrical connection
directly to the color-coded studs. Both the SM1EZ and SM4T are lightweight, durable speakers with
a low-profile contemporary design, making them versatile enough to be installed in just about any
installation with standard ceiling tiles.
The SM1EZ is a 1-watt single-tap speaker. The SM4T is a 4-watt multi-tap speaker with a rotary
switch that eliminates transformer tap wires. Both models have an exterior volume control for easy
balancing that is easily accessible, but doesn't attract tampering.
• Installs in less than a minute
Features
• Compatible with both 70V and 25V systems
• High intelligibility and efficiency
• Direct and reflected sound paths create wide
dispersion angle
• Lightweight and durable plastic shell with a
paintable finish
• Simple, three-step installation process
• No tool(s) installation
• Color-coded mounting studs identify polarity
to make the electrical connection easier (no
external wires)
• High-quality, wire-wound volume control on
outside of speaker for easy access
• Can be installed in any drop ceiling with stan-
dard ceiling tiles
• Surface-mounting design eliminates need to
cut ceiling tile, no mess installation
®
Speakers are surface-mount speakers, designed to typi-
®
• Contemporary design blends/matches any
decor
• SM1EZ has a single, 1-watt tap
• SM4T has switch selectable multiple taps for
controlling output level (taps - 4, 2, 1, 1/2, 1/4
watts)
• O-ring seal holds speaker tight to ceiling sur-
face, eliminating whistling and ensures
smoother sound without peaks
• Textured studs easily pierce ceiling tile and
secure wire nut connections
• Wide-bottom, easy-to-handle mounting wing
nuts provide secure speaker mounting
• All necessary mounting hardware included
• Complies with NFPA National Code 160b
and UL-2043 (Report available)
Specifications subject to change without notice.
© 2005 Bogen Communications, Inc.
Part No. 54-7620-01C Printed in U.S.A. 0505
